6.6.3.3. DVB
Allows the configuration of the Target Satellite Transponder Frequency, Symbol Rate,
and Code Rate in order to give the DVB Tuner a lock status once pointed towards
satellite.

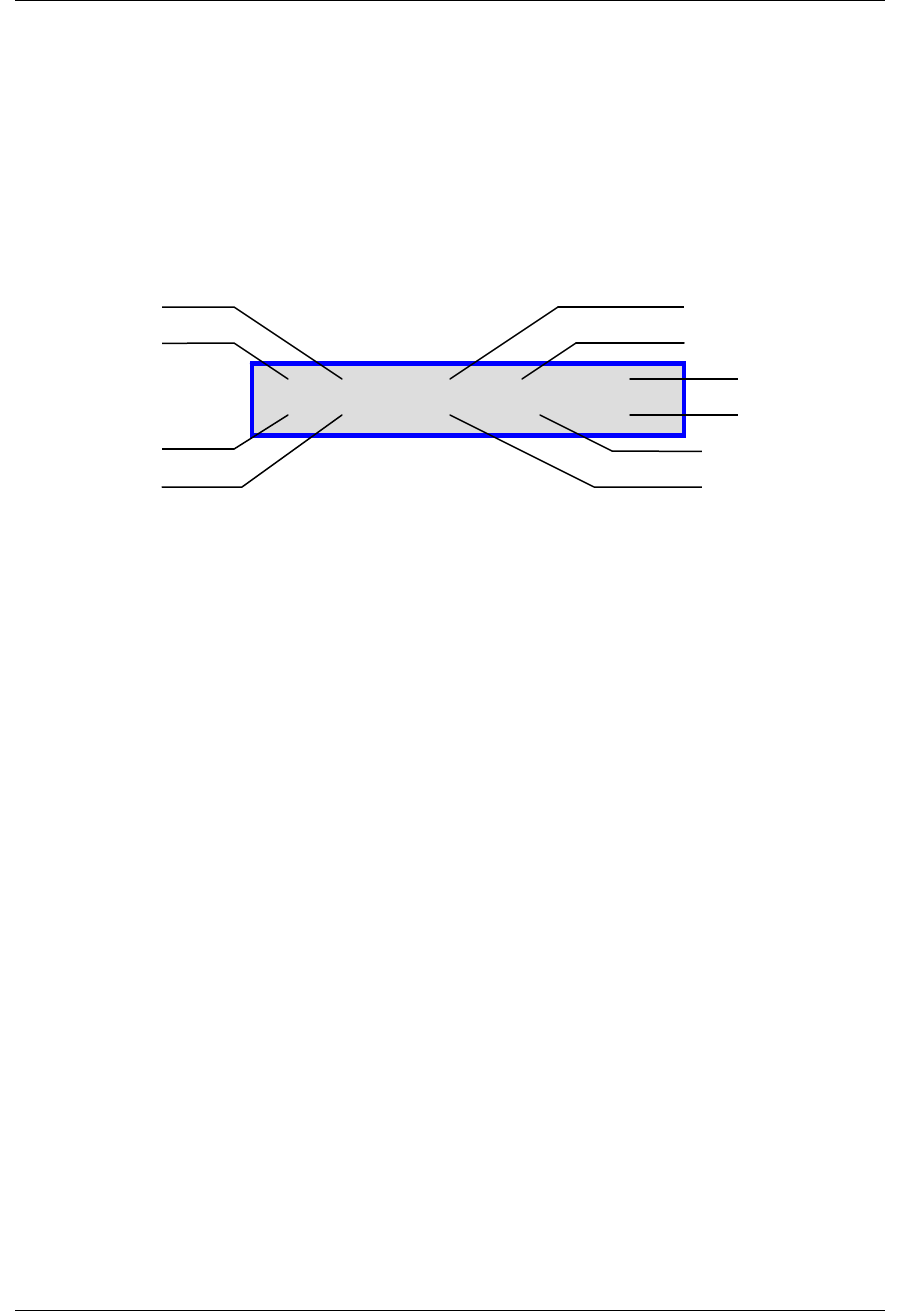

Fig. 28: “SAT” (Satellite) Display
1 – Target Satellite Transponder Number
T0 – T2: Transponder Frequencies for Horizontal Receive
T3 – T5: Transponder Frequencies for Vertical Receive
The User may enter his/her own transponder parameters.
2 - Configurable Target Satellite Transponder L-Band Frequency of the receive signal
(MHz)
3 – Configurable Target Satellite Transponder Symbol Rate (ksps)
4 – Configurable Target Satellite Transponder Code Rate.
5 – Reference Satellite Transponder Number
T0 – T2: Transponder Frequencies for Horizontal Receive
T3 – T5: Transponder Frequencies for Vertical Receive
The User may enter his/her own transponder parameters.
6 – Configurable Reference Satellite Transponder L-Band Frequency of the receive
signal (MHz)
7 – Configurable Reference Satellite Transponder Symbol Rate (ksps)
8 – Configurable Reference Satellite Transponder Code Rate.
T0 1310 30000 DB-7/8 DD
T0 0990 30000 DB-7/8 DD
1 4
5
6
8
3
7
2
9
10
