6. iNetVu
TM
Front Panel Operation
6.1. LED Definition

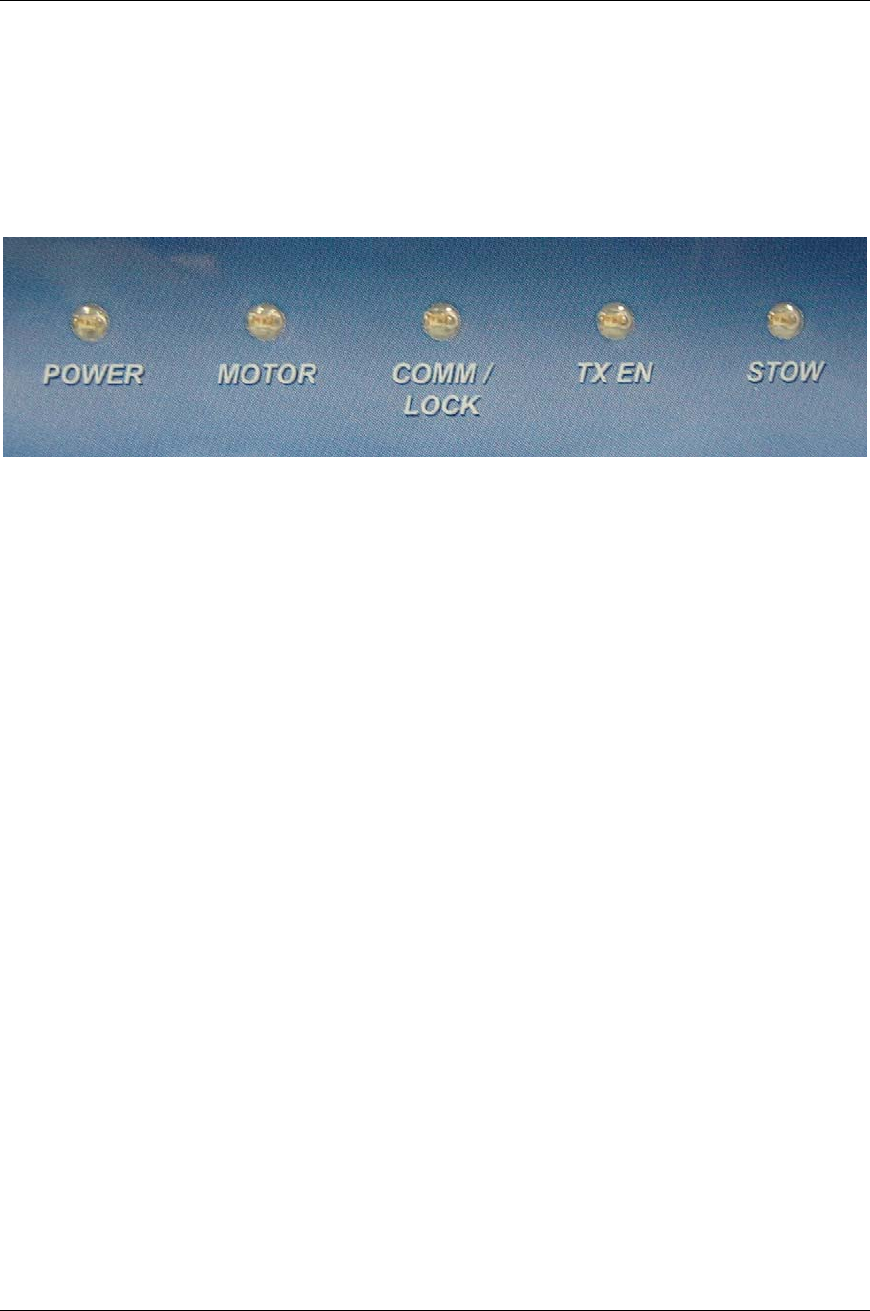

Fig. 7: iNetVu™ 7000 Controller Front Panel LED Panel
POWER
Solid light indicates power is ON.
MOTOR
Flashes when any of the three motors are instructed to move.
COMM / LOCK
Indicates Communication between Controller and Modem
Slow blinking (2 sec. intervals) indicates no communication.
Slow blinking (1 sec. intervals) indicates idle communication.
Fast blinking (1/4 sec. intervals) indicates that command is being executed
Solid Light indicates lock on Satellite.
TX EN
Solid Light indicates transmitter has been enabled.
STOW
Solid Light indicates iNetVu™ Mobile Platform Elevation Axis (EL) is in the stowed position.
