iNetVu™ 7000 Controller User Manual
Revision 1.19
4.1. Typical Network Interface Connection

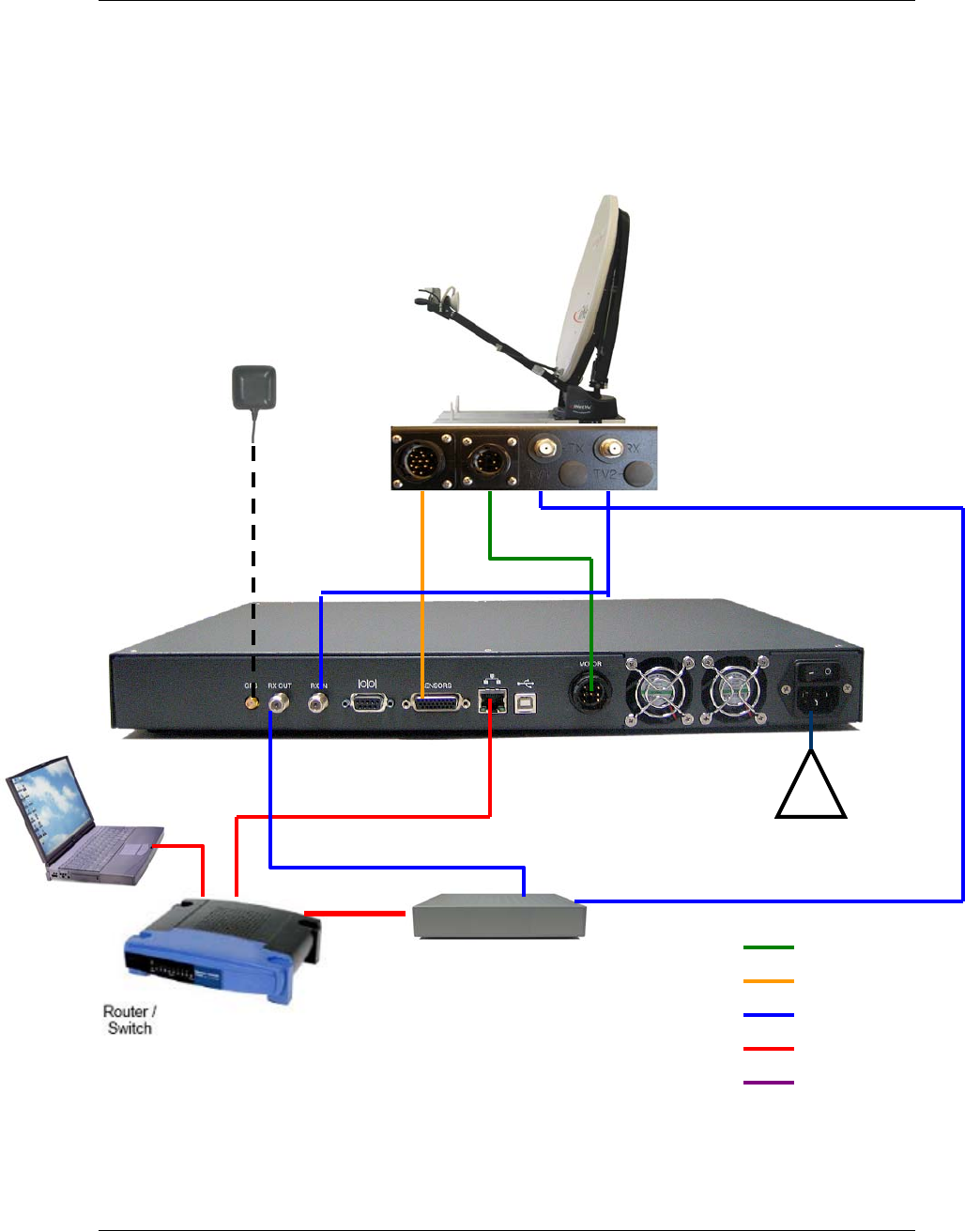

Fig. 3: iNetVu™ 7000 Controller Typical Connection Configuration
RX
GPS
Antenna
iNetVu™ Mobile
Platform
MOTOR
CONTROL
TX
Satellite Modem / VSAT
!
90 - 264VAC
TX OUT
RX
RG6 Coaxial Cable
Network Cable
Power Cable
Sensor Cable
Motor Control Cable
SENSOR
CABLE
Computer
