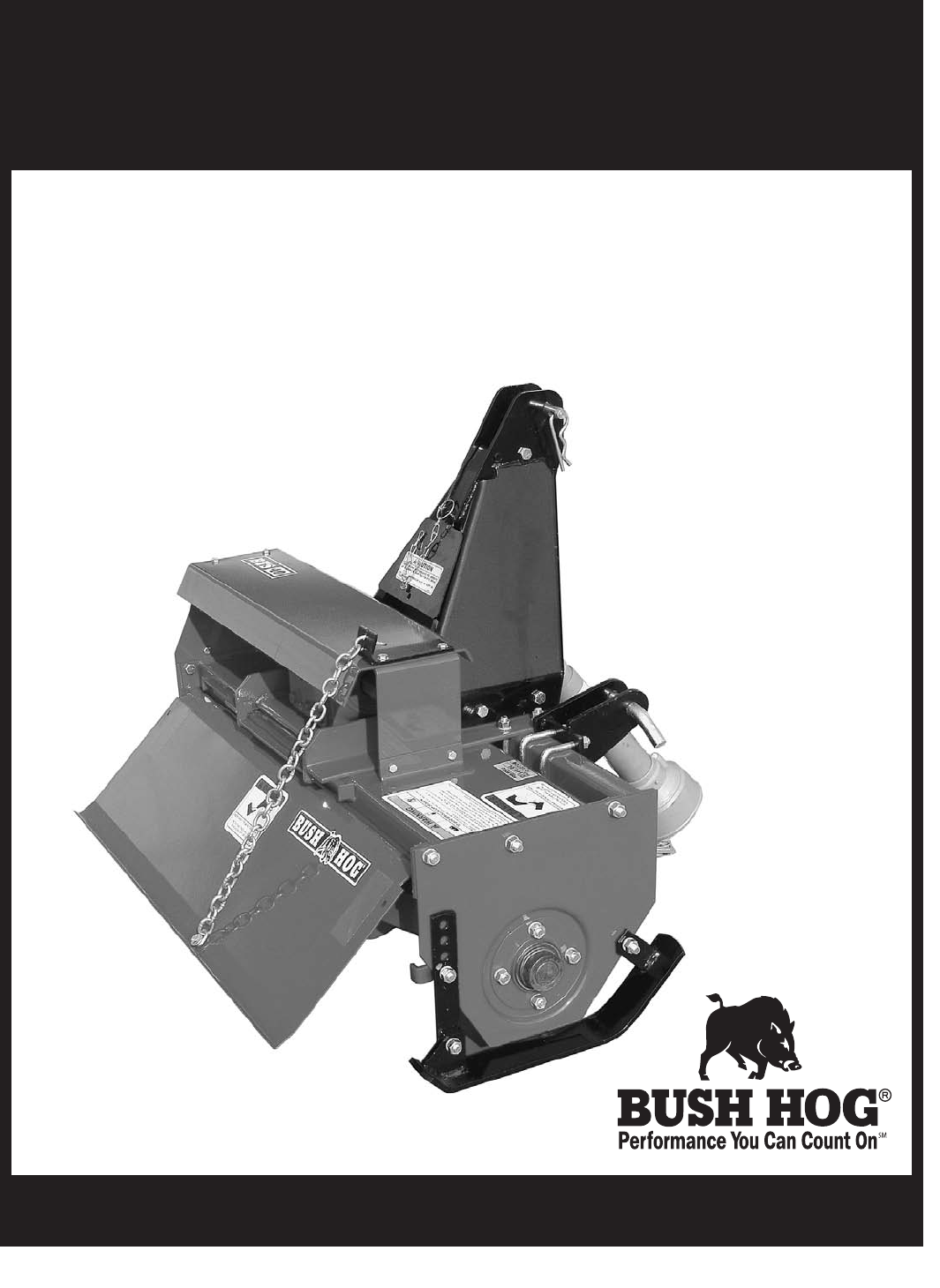

BUSH HOG ® Model RTS Rotary Tiller Operator’s Manual ASSEMBLY l OPERATION l MAINTENANCE 707 $4.
CONGRATULATIONS! You have invested in the best implement of its type on the market today. The care you give your Bush Hog implement will greatly determine your satisfaction with its performance and its service life. We urge a careful study of this manual to provide you with a thorough understanding of your new implement before operating, as well as suggestions for operation and maintenance. If your manual should become lost or destroyed, Bush Hog will be glad to provide you with a new copy.
RTS ROTARY TILLER OPERATOR’S MANUAL TABLE OF CONTENTS SECTION I II PAGE SECTION Warranty -------------------------------------------------3 IV MAINTENANCE--------------------------------------10 Dealer Preparation Check List ---------------------4 4-1 Maintenance Check List ----------------------10 Safety Precautions ------------------------------------5 4-2 Lubrication----------------------------------------11 INTRODUCTION & DESCRIPTION----------------------6 4-3 Blade Replacement -------------
LIMITED WARRANTY OOOOOOOOOOOOOOOOOOOOOOOOOOOOOOO Bush Hog warrants to the original purchaser of any new Bush Hog equipment, purchased from an authorized Bush Hog dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and municipalities’ use and ninety (90) days for commercial use from date of retail sale. The obligation of Bush Hog to the purchaser under this warranty is limited to the repair or replacement of defective parts.
DEALER PREPARATION CHECK LIST ROTARY TILLERS BEFORE DELIVERING MACHINE — The following check list should be completed. Use the Operator’s Manual as a guide. r r r r r r r r r 1. Assembly completed. 2. Gearboxes filled with oil. 3. All fittings lubricated. 4. All shields in place and in good condition. 5. All fasteners torqued to specifications given in Torque Chart. 6. Slip clutch checked for proper operation. 7. All decals in place and readable. (See decal page.) 8.
IMPORTANT SAFETY PRECAUTIONS This symbol is used to call attention to safety precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. Failure to comply with safety precautions could result in serious bodily injury.
SECTION I INTRODUCTION AND DESCRIPTION Drivetrain consists of a triangular, telescoping input driveshaft, 90 degree transfer gearbox, hexagon cross-shaft and a chain driven rotor. Protection is provided by an in-line shear bolt or slip clutch on the driveline. The chain is self-adjusted by a spring tension device. Major components of the tiller are identified in Figure 1-1 and specifications are given in Table 1-1. 1-2 INTRODUCTION We are pleased to have you as a Bush Hog customer.
SECTION II PREPARATION FOR USE NOTE If driveline is correct length, omit the following steps “G” through “J” and proceed to step “K”. G. Clamp driveline in a padded vice to prevent damage to shield. Cut of shield where marked. (Figure 2-3) 2-1 ATTACHING TO TRACTOR WARNING TO AVOID SERIOUS INJURY OR DEATH: NEVER STAND BETWEEN TRACTOR AND TILLER WHILE TRACTOR IS BEING BACKED TO HITCH.
H. Using cut off section of shield as a guide, cut shaft the same amount. (Figure 2-4) 2-2 OFFSETTING TILLER Figure 2-4 The tillers may be offset to the right up to 6 inches on Model RTS40, 12 inches on Models RTS50 and RTS60, and 18-1/4 inches on Model RTS74. Adjust as follows: A. Loosen U-bolts securing hitch lugs and gearbox stand to tiller frame. B. Slide hitch lugs and gearbox to desired position maintaining the distance shown in Figure 2-6.
SECTION III OPERATING INSTRUCTIONS Depth of till is regulated by moving adjusting bolt and adjusting skids up or down. (Figure 3-1) The holes in the adjusting plate are in 1 inch increments with the bottom hole being a 4 inch tilling depth. Average soil with reasonable moisture will allow depth of 4 inches in one pass with a tractor forward speed of 2 mph. Heavy or packed soil may require two passes to reach 4 inch depth. Using multiple passes, a maximum depth of 7 inches may be obtained.
3-3 OPERATION E. Place tractor in gear and proceed forward. Increase speed to 3/4 throttle. Lower tiller into soil. Increase speed to 540 PTO rpm. Average soil with reasonable moisture will allow travel speeds up to 2 mph. Hard soil will require low travel speed, less than 1 mph to ensure smooth operation and maximum possible depth. Shallow weed cultivation will allow speeds up to 3 mph. At the end of a pass lift tiller clear of ground before making a turn.
4-2 LUBRICATION (Figure 4-1) 4. Input Gearbox - Add EP80W-90 gear oil, if necessary, to bring oil level to check plug. Gearbox capacity is 27 ozs. 40 HOURS NOTE The multi-purpose grease referenced in this section is an NLGI Grade 2 type grease. 5. Shearbolt Yoke - Apply multi-purpose grease to grease fitting. This fitting must be kept lubricated to prevent yoke from seizing. BEFORE EACH USE 1. Driveline Universal Joints - Apply multi-purpose grease with grease gun. 100 HOURS 2.
Figure 4-2 Blade Wear 4-3 BLADE REPLACEMENT WARNING THE TILLER CAN FALL FROM HYDRAULIC SYSTEM FAILURE. TO AVOID SERIOUS INJURY OR DEATH, SECURELY SUPPORT TILLER BEFORE WORKING UNDERNEATH. Tiller blades should be replaced when they have approximately 1/4” of wear left on tip of blade. (Figure 4-2) To replace blades, remove bolts securing blade. Install new blade. Blade must be a right or left corresponding to blade removed. Tighten blade bolts to 73 ft./lbs. Use only genuine Bush Hog replacement parts.
4-7 TROUBLESHOOTING ment parts are necessary, contact your authorized Bush Hog dealer. Please have ready your machine name, model number, serial number, purchase date, and exact cause or description of problem. Troubleshooting procedures are listed in Table 4-1 below.
11. After completing assembly, be sure that all safety locking devices or guards are in place. 12. Before operating the machine, thoroughly read the operation section of this manual. 13. Before operating, read the maintenance section of this manual to be sure that any parts requiring lubrication such as gearboxes are full to avoid any possible damage.
SAFETY DECALS To promote safe operation, Bush Hog supplies safety decals on all products manufactured. Because damage can occur to safety decals either through shipment, use or reconditioning, Bush Hog will, upon request, provide safety decals for any of our products in the field at no charge. Contact your authorized Bush Hog dealer for more information. Part No. 78413 Part No. 81067 78608 Part No.
TORQUE SPECIFICATIONS Proper toque for American fasteners used on Bush Hog equipment. Recommended Torque in Foot Pounds (Newton Meters).* AMERICAN Bolt Head Markings W RENCH S IZ E (IN .) “ A ” B O L T D IA M E T E R (IN .
