Electrical connections
Voltage supply M12, plug 4-pin, max. 4 A
CANopen incoming M12, plug 5-pin, a-coded
CANopen outgoing M12, jack 5-pin, a-coded
RIO M8, jack
Address setting via rotary encoder switch
Address range 0 to 99
Integrated diagnostic 3-pin, (RM 2.54)
LEDs 2 x bus status
2 x fault indication
3 x supply voltage
Connection table
PIN
BUS IN /
BUS OUT
Power / Supply Voltage RIO
1 Screen
4)
+24 V Output (U
o
) CAN-H
2 CAN_V+(n.c.) +24 V Logic / Sensors (U
i
) CAN_L
3 GND GND Logic / Sensors (U
i
) Screen
4)
4 CANHigh GND Output (U
o
) n.c.
5 CANLow - -
4)
The screen terminal is connected to the FE contact.
25
GB
DEVICENET FIELD BUS MODULE
Technical Data
Operating voltage 24 V; -15 % / +20 %
Residual ripple 2 V
ss
Current consumption
Inputs / Logic max. 1 A
Outputs max. 4 A (M12)
DeviceNet
Transmission rate adjustable via rotary encoder
switch
Rate [kBaud]
0 125
1250
2500

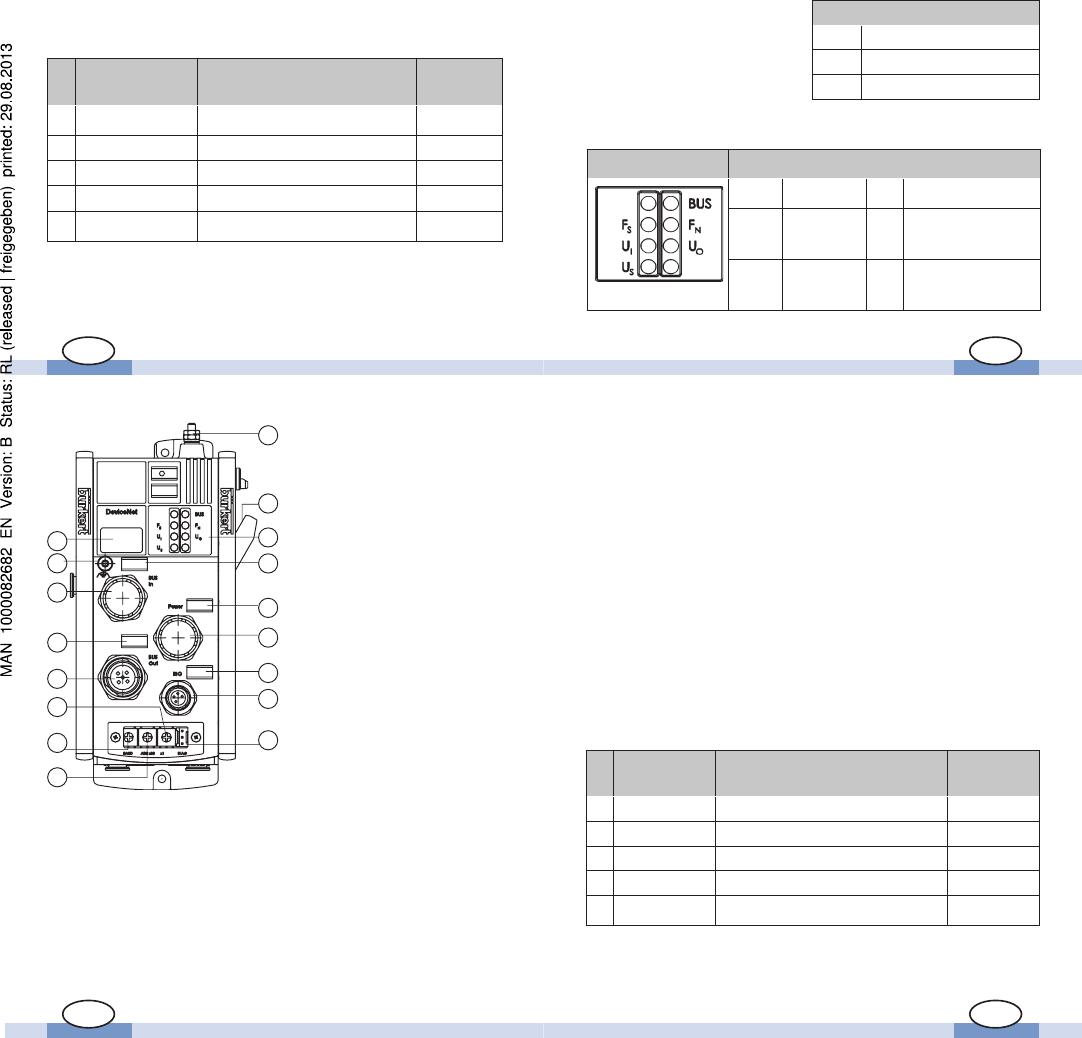

Overview
Detail drawing Diagnostic / status LEDs (20)
BUS Status U
i
logic voltage
F
S
Error
select
U
O
output voltage
F
N
Error
number
U
S
sensor voltage
26
GB
8
9
16
14
18
15
19
13
17
21
20
25
23
22
26
24
54
8 FE contact
9 FE contact
13 Type plate
14 Label panel
BUS IN
15 Connection BUS IN
(M12-b)
16 Label panel
BUS OUT
17 Connection BUS OUT
(M12-a)
18 Rotary encoder switch (x1)
19 Rotary encoder switch
(x10)
20 Diagnostic / status LEDs
(see detail drawing)
21 DIN rail mounting
22 Label panel Power
23 Connection Power
24 Label panel RIO
25 Connection RIO (M8)
26 Diagnostic and update
interface
54 Rotary encoder switch
baud rate
27
GB
Electrical Connections
Voltage supply M12, plug 4-pin, max. 4 A
DeviceNet incoming M12, plug 5-pin, a-coded
DeviceNet outgoing M12, jack 5-pin, a-coded
RIO M8, jack
Address setting via rotary encoder switch
Address range 0 to 63
Integrated diagnostic
interface 3-pin, (RM 2.54)
Diagnostic LEDs 2 x bus status
2 x fault indication
3 x supply voltage
Connection table
PIN
BUS IN /
BUS OUT
Power / Supply Voltage RIO
1 Screen
4)
+24 V Output (U
o
) CAN-H
2 n.c. +24 V Logic / Sensors (U
i
) CAN_L
3 GND GND Logic / Sensors (U
i
) Screen
4)
4 CANHigh GND outlet (U
o
) n.c.
5 CANLow - -
4)
The screen terminal is connected to the FE contact.
