Manual

20
GB

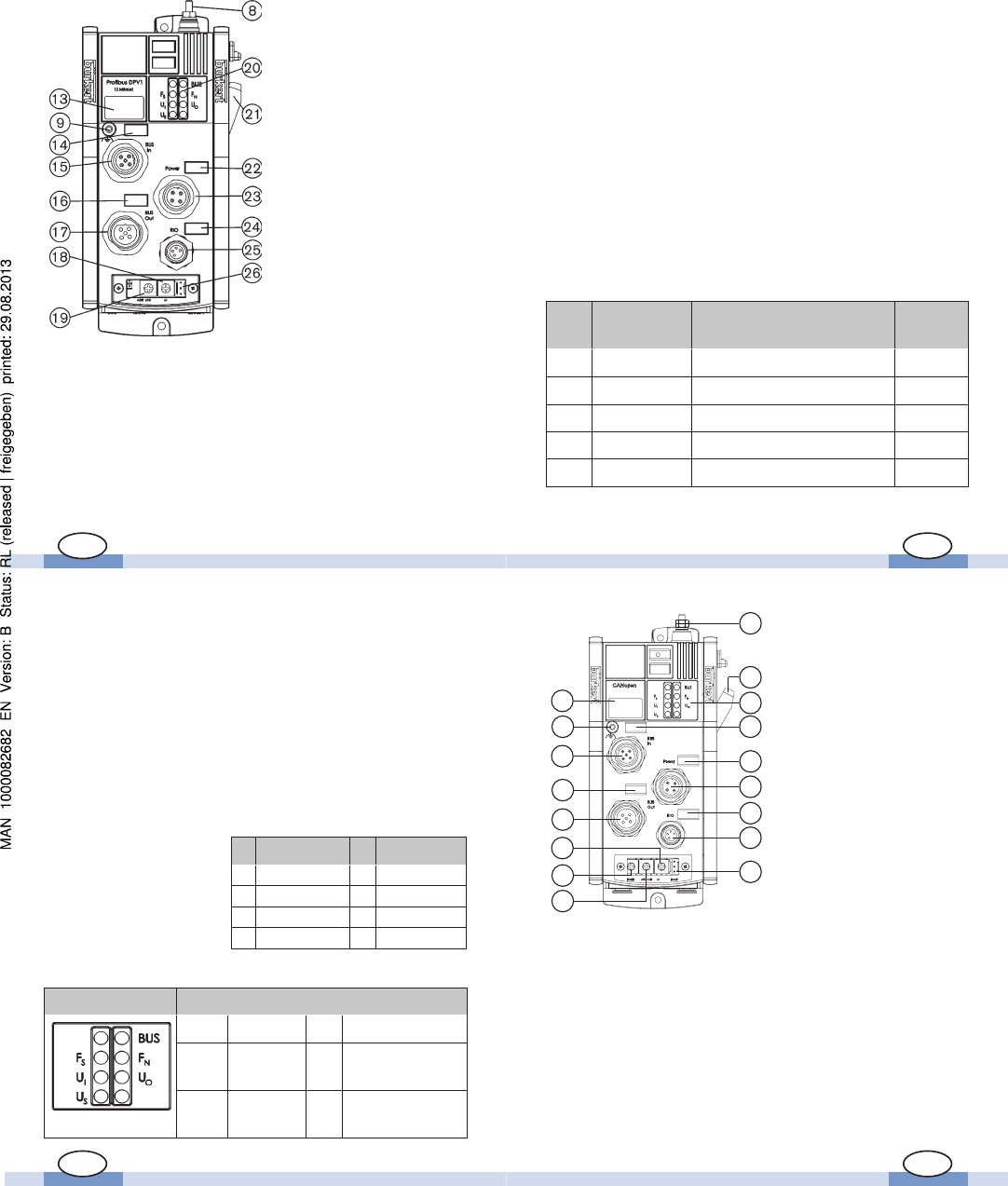

8 FE contact
9 FE contact
13 Type plate
14 Label panel BUS IN
15 Connection BUS IN
(M12-b)
16 Label panel
BUS OUT
17 Connection BUS OUT
(M12-b)
18 Rotary encoder
switch (x1)
19 Rotary encoder
switch (x10)
20 Diagnostic / Status LEDs
(see detail drawing)
21 DIN rail mounting
22 Label panel Power
23 Connection Power
24 Label panel RIO
25 Connection RIO (M8)
26 Diagnose and update
interface
21
GB
Electrical connections
Voltage supply M12, plug 4-pin, max. 4 A
Profi bus incoming M12, plug 5-pin, b-coded
Profi bus outgoing M12, jack 5-pin, b-coded
RIO M8, jack
Address setting via rotary encoder switch
Address range 0 to 99
Integrated diagnostic
interface 3-pin, (RM 2.54)
Diagnostic LEDs 2 x bus status
2 x fault indication
3 x supply voltage
Connection table
PIN BUS IN /
BUS OUT
Power / Supply Voltage RIO
1 5 V +24 V Output (U
o
) CAN-H
2 A signal +24 V Logic / Sensors (U
i
) CAN_L
3 GND GND Logic / Sensors (U
i
)
FE
4 B signal GND Output (U
o
) n.c.
5FE - -
22
GB
CANOPEN FIELD BUS MODULE
Technical Data
Operating voltage 24 V; -15% / +20%
Residual ripple 2 V
ss
Power consumption
Inputs / Logic max. 1 A
Outputs max. 4 A (M12)
CANopen
Transmission rate adjustable via rotary encoder
switch
Rate [kBd] Rate [kBd]
0 1000 4 125
1 800 5 100
2 500 6 50
3250 720
Overview
Detail drawing Diagnostic / Status LEDs (20)
BUS Status U
i
logic voltage
F
S
Error
select
U
O
output voltage
F
N
Error
number
U
S
sensor voltage
23
GB
13
22
14
8
9
21
23
15
16
17
18
54
26
19
24
25
20
8 FE contact
9 FE contact
13 Type plate
14 Label panel BUS IN
15 Connection BUS IN
(M12-a)
16 Label panel
BUS OUT
17 Connection BUS OUT
(M12-a)
18 Rotary encoder switch
(x1)
19 Rotary encoder switch
(x10)
20 Diagnostic / Status LEDs
(see detail drawing)
21 DIN rail mounting
22 Label panel Power
23 Connection Power
24 Label panel RIO
25 Connection RIO (M8)
26 Diagnostic and update
interface
54 Rotary encoder switch
baud rate
