Manual

52
GB
Assembly
Connect the new pneumatic connection.
→
Connect all safety clamps (48).→
Admit pressure.→
48 Safety clamp
53
GB
ELECTRONIC MODULE DIGITAL INPUTS
Technical Data
Supply voltage
(Transmitters) 24 V; -15 % / +20 %
Supply current
(Transmitters) max. 700 mA (in the system)
Connections 8 x M8, 3-pin, jack
4 x M12,
4-pin, double allocation, jack
Displays 8 LEDs for the status of the
feedback
Inputs
Logic level high 13 ... 30 V
Logic level low 0 ... 5 V
short circuit-proof yes
54
GB

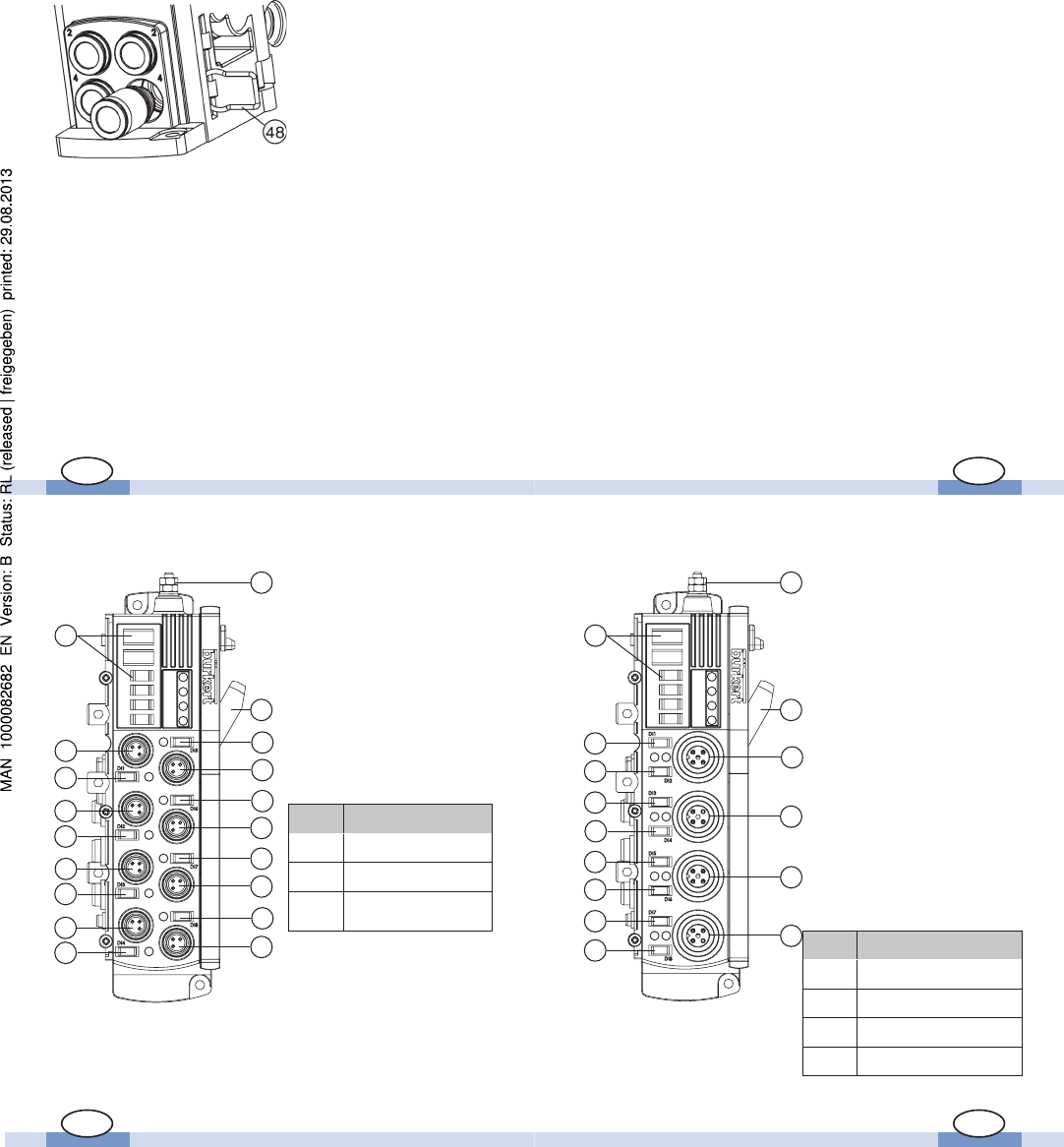

EM DI8M8
8
27
29
21
33
34
35
36
41
42
43
44
37
30
31
32
38
39
40
8 FE contact
21 DIN rail mounting
27 Labelling fi elds
29 ...
36
Connections DI
1 ... 8 (M8)
37 ...
44
Labelling fi elds
DI 1 ... 8
PIN connection M8
PIN DI
1
... DI
8
1 +24 V
3 GND
4IN
1
... IN
8
55
GB
EM DI8M12
8
27
21
33
34
35
36
37
38
40
41
39
44
43
42
8 FE contact
21 DIN rail mounting
27 Labelling fi elds
33 Connection DI1/2
(M12)
34 Connection DI3/4
(M12)
35 Connection DI5/6
(M12)
36 Connection DI7/8
(M12)
37 ...
44
Connection DI
1 ... 8
PIN connection M12
PIN DI
1
... DI
8
1 +24 V
2 IN (X+1)
3 GND
4 IN X
