Instruction Manual

Operating Instructions Type 0255
Recorder No.
Voltage / Frequency / Power Consumption
Maximum Pressure

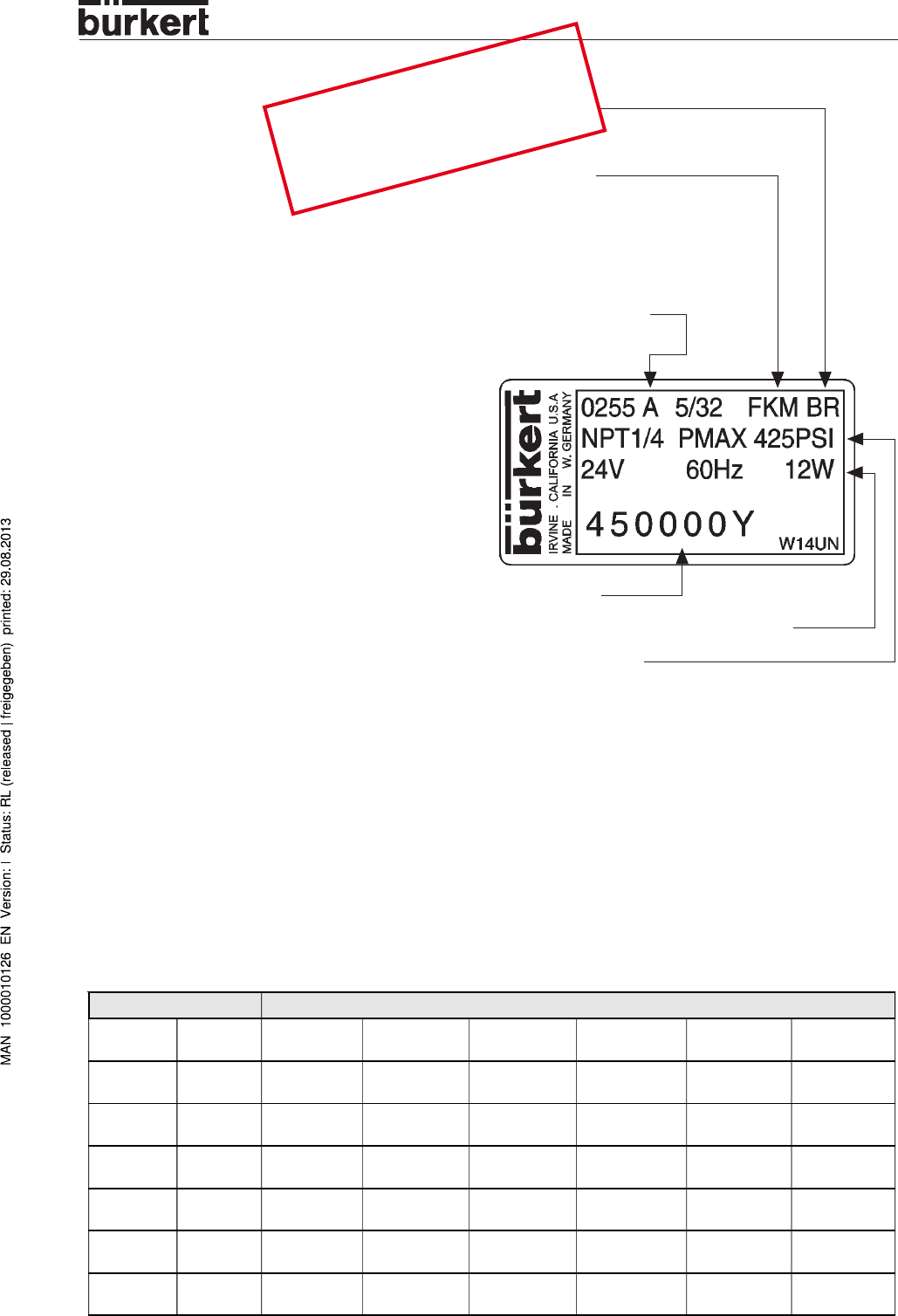

Marking (example):
Body Material
BR = Brass
SS = Stainless Steel
Seal Material
EPDM = EPDM
NBR = NBR
FKM = FKM
EA = PTFE seat and EPDM O-ring
EF = PTFE seat and FKM O-ring
CF = FFKM seat and FKM O-ring
Circuit function
A = Normally Closed
Design:
2-way solenoid valve, direct acting, normally closed (Circuit
function A).
Seal Materials and Fluids handled:
See Table.
Fluid and Ambient Temperature:
See Table.
Pressure Range:
Maximum inlet pressure see label on valve.
Installation:
Before installing valve ensure that piping etc. is free of foreign
matter (metal fillings, seal materials, welding scale etc.). Instal-
lation as required but preferably with coil uppermost. Installati-
on in this position tends to prevent foreign matter remaining in
core tube (increased life). Do not put any loads on coil unit.
Type 0255: PTFE tape is recommended for sealing ports.
Arrow on valve body indicates flow direction. Mounting is
accomplished by 2 holes 6.5 mm thru valve body.
Operating Instructions 0605/08_EU-EN_00893149
Seal Materials
Fluid Tempera-
tures [°F]
Buna „N‰ Ethylene
Propylene
FKM Steel PTFE FFKM
Air Fluid T.
Ambient
+ 14 to + 194
+ 14 to + 130
- 40 to + 266
+ 14 to + 130
+ 14 to + 266
+ 14 to + 130
- 40 to + 356
+ 14 to + 130
- 40 to + 356
+ 14 to + 130
+ 14 to + 266
+ 14 to + 130
Water Fluid T.
Ambient
+ 50 to + 194
+ 32 to + 130
+ 50 to + 212
+ 32 to + 130
+ 50 to + 212
+ 32 to + 130
+ 50 to + 212
+ 32 to + 130
+ 50 to + 212
+ 32 to + 130
+ 50 to + 212
+ 32 to + 130
Neutral Gas Fluid T.
Ambient
+ 14 to + 194
+ 14 to + 130
- 40 to + 266
+ 14 to + 130
+ 14 to + 266
+ 14 to + 130
- 40 to + 356
+ 14 to + 130
- 40 to + 356
+ 14 to + 130
+ 14 to + 266
+ 14 to + 130
Light oil Fluid T.
Ambient
+ 50 to + 194
+ 14 to + 130
+ 50 to + 194
+ 14 to + 130
+ 50 to + 194
+ 14 to + 130
+ 50 to + 194
+ 14 to + 130
+ 50 to + 194
+ 14 to + 130
LP-gas Fluid T.
Ambient
+ 14 to + 140
+ 14 to + 130
+ 14 to + 140
+ 14 to + 130
+ 14 to + 140
+ 14 to + 130
+ 14 to + 140
+ 14 to + 130
+ 14 to + 140
+ 14 to + 130
Steam Fluid T.
Ambient
+ 212 to + 266
+ 14 to + 130
+ 212 to + 266
+ 14 to + 130
+ 212 to + 356
+ 14 to + 130
+ 212 to + 356
+ 14 to + 130
+ 212 to + 266
+ 14 to + 130
Voltage 12V or 24V
UL / UR valid with
class 2 power supply only
