Operating Manual

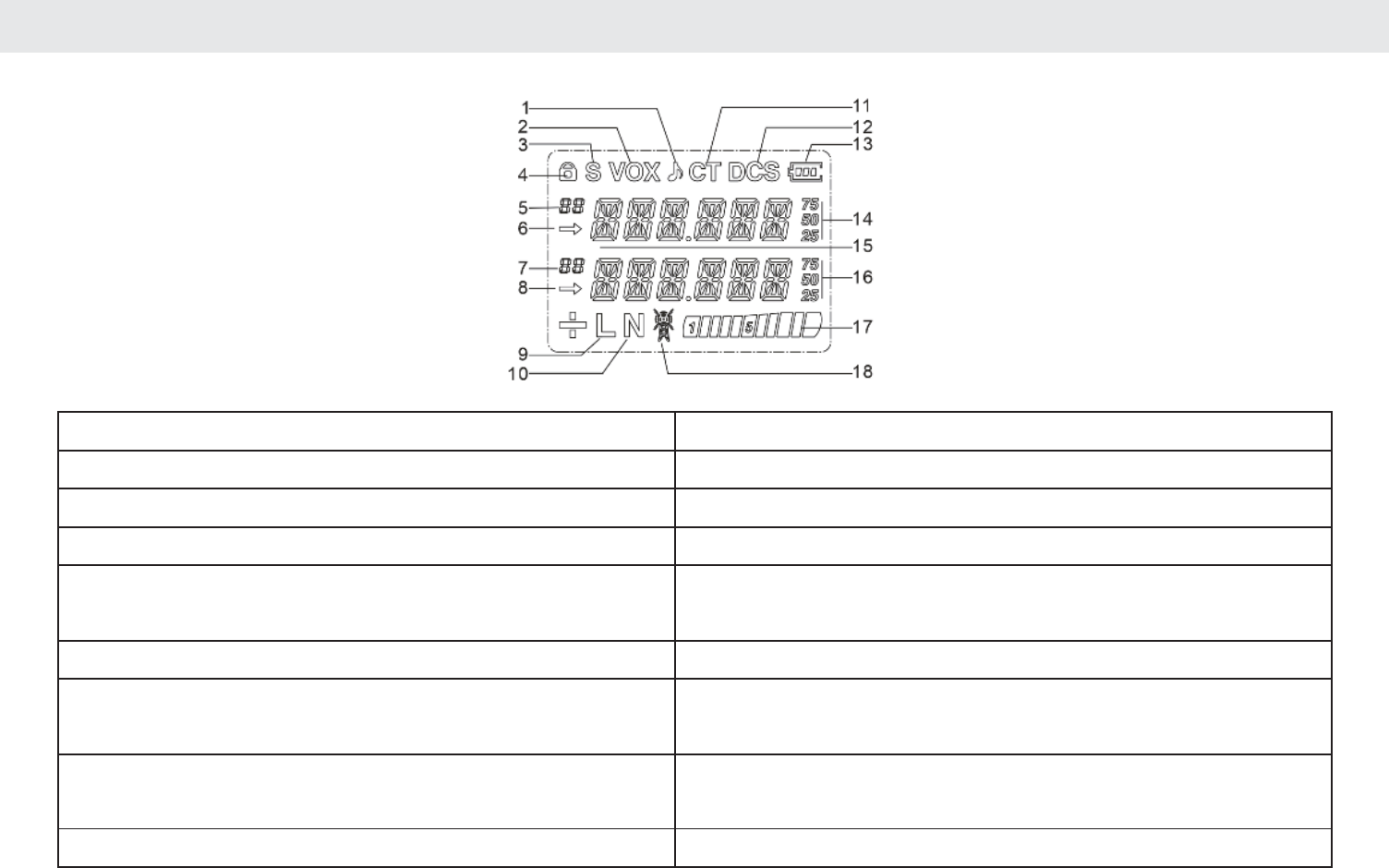

LCD DISPLAY



1. Call Tone (Off, 1–20) 10. Narrowband Indicator (working at 12.5KHz)

2. VOXδOFF,1-5ε 11.CTC Indicatorδ67.0-254.1ε

3. Dual Channel MonitorδON/OFFε 12.DCS IndicatorδD023I/N-D754I/Nε

4. Keypad Lock 13. Battery Indicator (3 Battery Levels)

5. A Channel Number (1-22) or menu number (1-

17)

14. The last two digits of RX/TX frequency (4-5 digits

after the decimal point)

6. A Channel Arrow Pointer 15. Frequency/Channel Alias Display Area

7. B Channel Number (1-22) 16. The last two digits of RX/TX frequency (4-5 digits

after the decimal point)

8. B Channel Arrow Pointer 17. Transmit Power Indicator (half grid for low power,

full grid for high power)

9. Low Power Indication 18. Status (Transmit/ Receive)
