Step 13. Attach the RJ45 cable to the head brace being used and the RJ45 jack that is
closest to the front of the unit at the top of the MCU™ (Figure 6-76).
D. UTILIZING THE CERVICAL STRENGTH PROTOCOLS
1. ACCESSING THE CERVICAL STRENGTH PROTOCOLS
Access the pre-programmed Strength protocols by clicking the Strength Tests icon on
the Home Screen.
This will bring you to the Strength Protocols main page. From this page you have the
ability to access all the pre-programmed protocols, including those in hibernation, add
and remove tests to clients, create new isometric strength tests, edit tests, and delete
tests (Figure 6-77).
Note that three strength protocols have been designed for the Multi-Cervical™ Unit:
MCU™ Neutral Isometric, MCU™ Angle Specific 25 Degrees, and MCU™ Angle Specific 45
Degrees. The only difference between the three protocols is the rotation angle at which

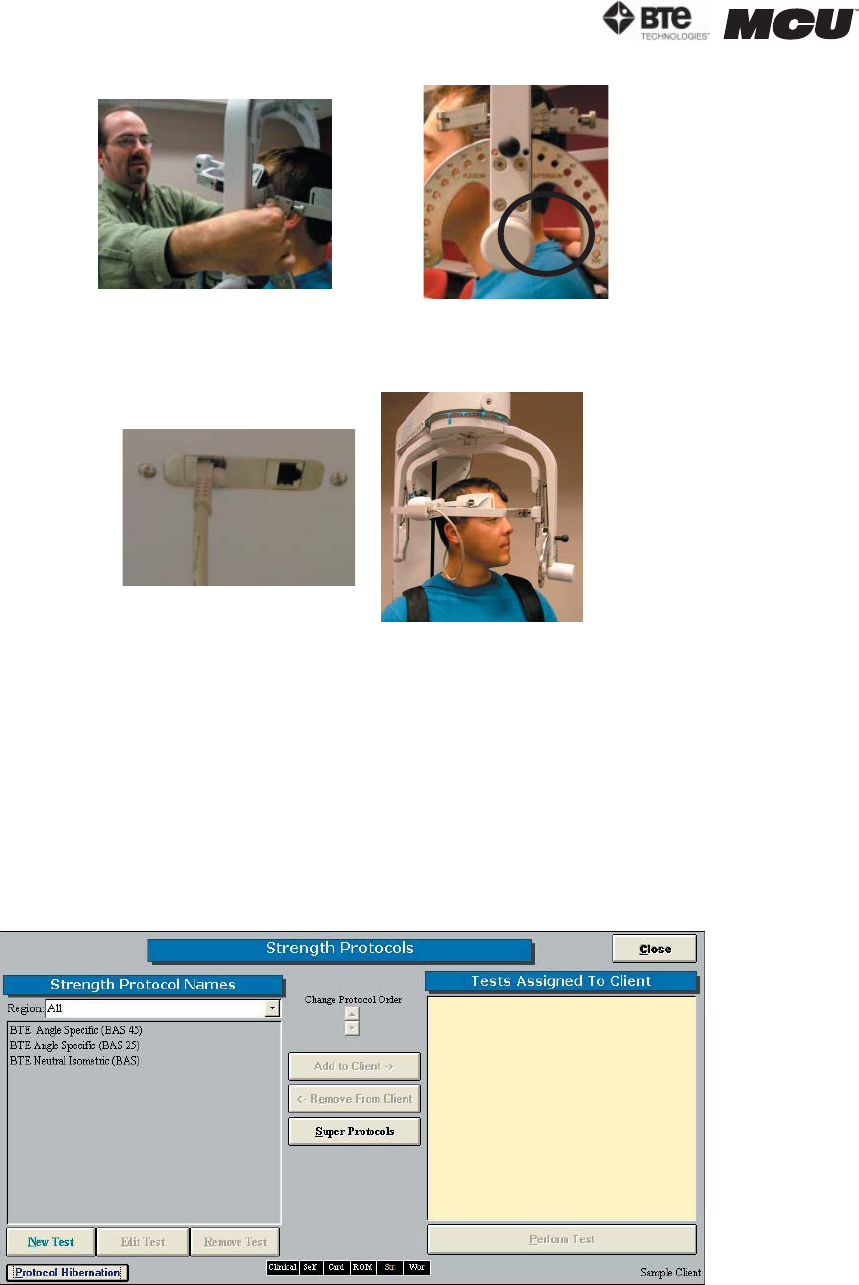

Figure 6-75. Final Adjustments and Locating C5/C6
Figure 6-76. MCU™ RJ45 Jack and Final
45
o
Isometric Lateral Set-up
Figure 6-77. Strength Protocols
