Step 3. Place the calibration weight(s) on the calibration block (Figure 5-6). Enter the amount

of weight you are using to calibrate (remember to add the weight of the calibration block,

which is 0.7lb/0.3kg) in the calibration screen and then click OK.

Step 4. Remove the calibration weights from the calibration block before proceeding with the

rest of the calibration.

Step 5. If it isn’t already, set the halo rotation to 0 degrees (Figure 5-7). Click OK on the cali-

bration screen.

Step 6. Unlock the rotation pin, set the halo rotation to 90 degrees left, and then lock the

rotation pin (Figure 5-8). Click OK on the calibration screen.

Step 7. Unlock the rotation pin, rotate the halo back to 0 degrees, and then lock the rotation

pin.

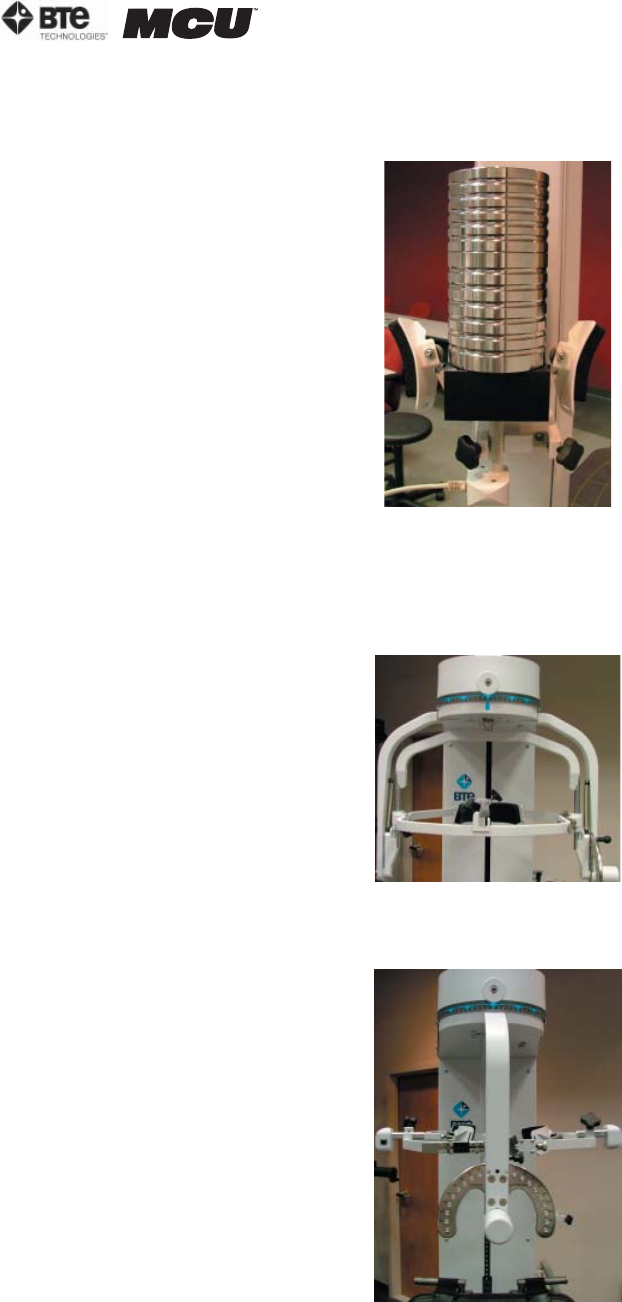

Figure 5-6. Calibrating the Head Brace

Figure 5-7. Halo at 0

Rotation

Figure 5-8. Halo at 90

Rotation
