CALIBRATION & VERIFICATION
I. INTRODUCTION
Calibration is an important component of the Multi-Cervical™ system. Since one of the main
attributes of the system is the ability to track the progress of your patients, it is essential that
the equipment is always giving accurate feedback. Therefore, we recommend calibrating every
7 days and verifying the beginning of every day.
As shown in Section 2 under the Administration Menu overview, reminders may be set for cali-
brations and verifications. There is also an option of requiring that the calibration and verifica-
tion must be done.
II. PERFORMING THE CALIBRATION
Calibration may be performed for the head braces, halo (2 locations), and the seat.
Access the Calibration Screen by selecting Calibrate FOCUS & MCRP from the Calibration
drop-down menu, which is located in the taskbar (Figure 5-1).
The main calibration screen will appear (Figure 5-2). Make sure that under Calibration Type,
which is located in the upper left of the screen, Manual is selected. The calibration screen
also has the Detail On feature, which allows you to directly view the voltage values of any tool
that can be calibrated; this is useful when troubleshooting.

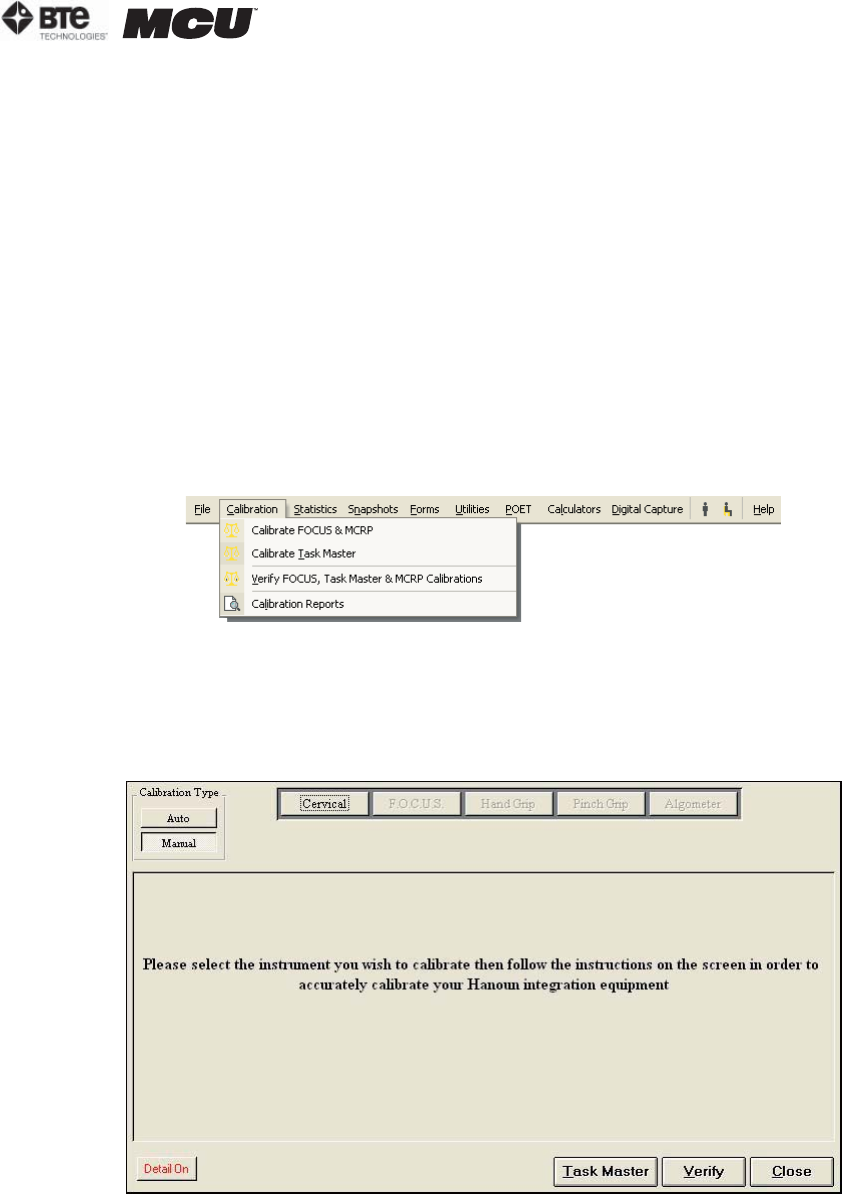

Figure 5-1. Calibration Drop-Down Menu
Figure 5-2. Main Calibration Screen
