2. DEVICE SETTINGS
The Device Settings section indicates which channel the
various tools are being read from based on the set-up of
the software (Figure 2-10). This section is most helpful for
troubleshooting.
3. GLOBAL SETTINGS (FIGURE 2-11)
Country, Units, and Language – Specify the country, language, and the units of mea-
surement to be used in printed reports.
Backup Reminder – Set reminders for backing-up your data. The recommended amount
of time between back-ups is 7 days. The backups should be saved on floppy disks, CDs,
or ZIP disks and kept separate from your system in case of fire, theft, or other equally
damaging events.
Verify or Calibrate – Set reminders for calibrating and verifying the equipment. The rec-
ommended amount of time between calibrations is 7 days, and the unit should be veri-
fied before each day of testing to ensure your tools are accurate. The accuracy of your
equipment is extremely important, particularly if your reports will be used in litigious
cases. In addition, the Reminder can be set up as ‘Remind only’ or ‘Must Be Done’.
Spell Checker – Spell check your documents using Microsoft Word or the provided Medi-
cal Spellchecker.
Automatically Read Shelf Heights – This is not used for an MCU™ system.
Voice Type – Change the type and speed of the voice interface. You may also turn the
sounds and voices on and off by clicking on the knobs.
4. URFIO CONFIGURATION APPLICATION
The URFIO Configuration Application is the portion of the software that monitors the
wireless configurations of the system (Figure 2-12).
Clicking on the URFIO Configurator icon brings up the URFIO Configuration Tool Mapping
screen (Figure 2-13). This screen displays which wireless channel the system is operat-
ing on and which tool is mapped to that current wireless channel. This screen should
only be used when a new tool needs to be mapped or for troubleshooting purposes.

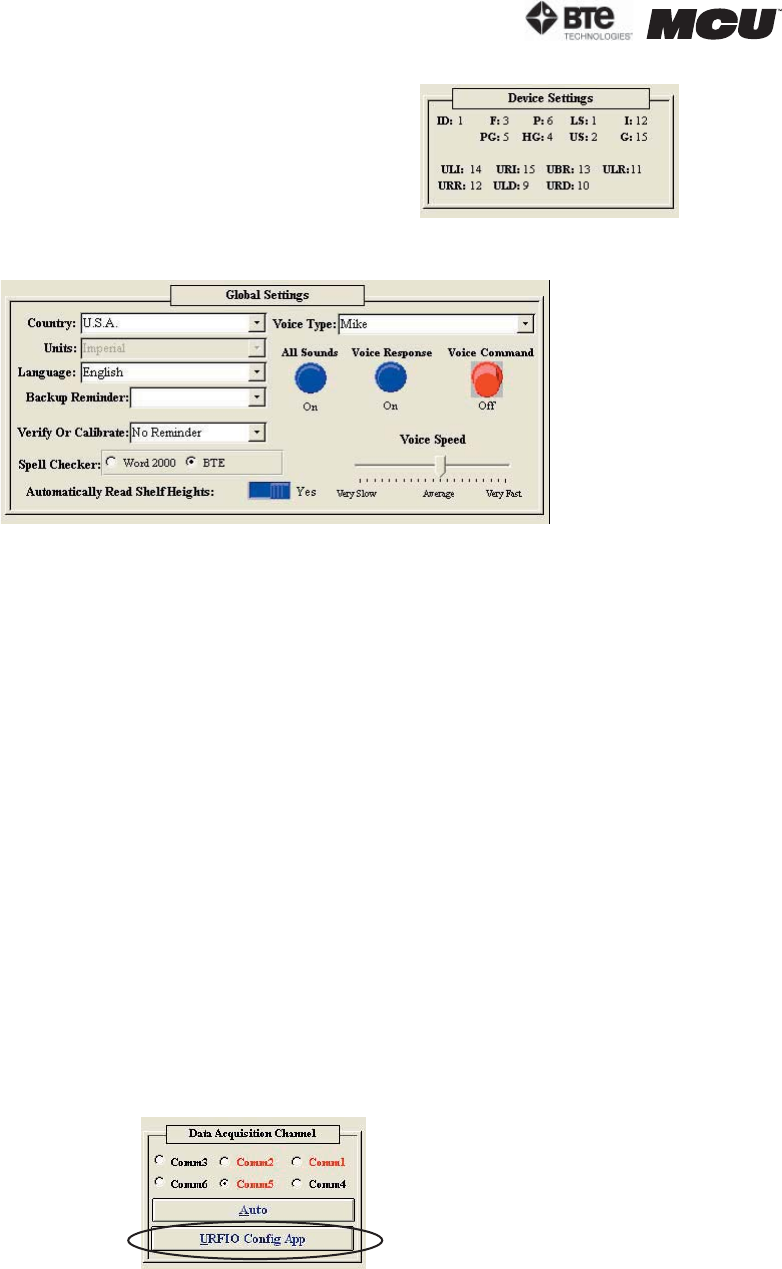

Figure 2-11. Global Settings
Figure 2-12. DAQ Channel
Figure 2-10. Device Settings
