User's Manual Part 1

page
6
section 01
40040005 rev. 000
Step 7. Locate the arm rests, note which is labeled left and which is right, and attach
them to the seat on the appropriate sides (Figure 1-9). Note that the armrest is inserted
below the plastic piece that is within the bracket.
Step 8. Plug the power cord, which is located at the bottom back of the MCU™, into the
designated wall outlet. Hold your hand above the back of the MCU™, next to the antenna,
and verify a red light shines on your hand; this confirms the PCB is receiving power (Figure
1-10).
B. SETTING UP THE COMPUTER EQUIPMENT AND CART
1. LCD MONITOR
If you haven’t done so, remove the small bag from the top shelf of the computer cart
and mount the LCD monitor to the cart (Figure 1-11). Plug the power cord and serial
cable into the back of the LCD monitor.
Threaded hole
on arm rest
Arm Rest Bracket
under Seat
Insert Arm Rest
into Bracket
Arm Rest Knob
Thread Knob into
Threaded Hole
Final Result

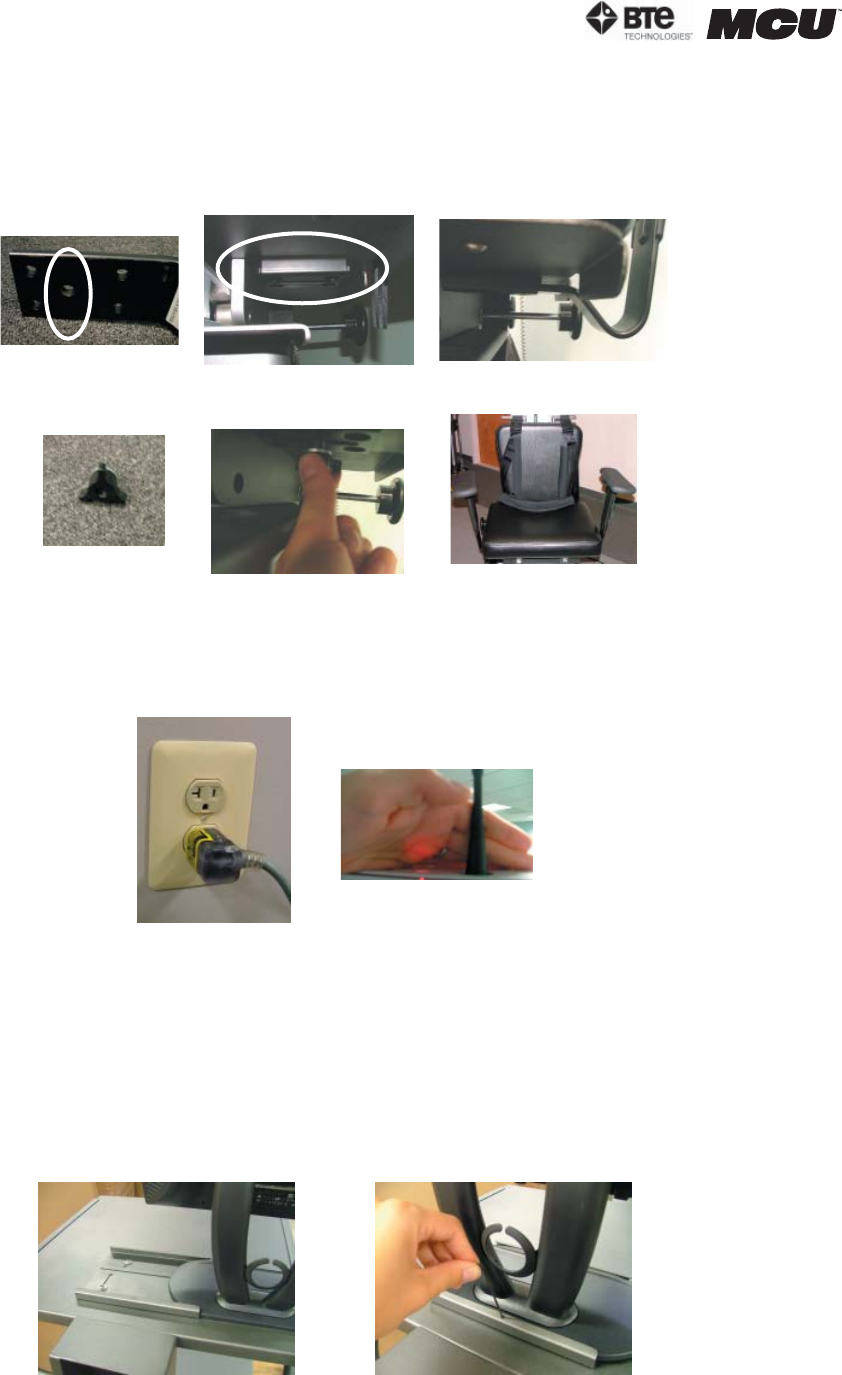

Figure 1-9. Attaching the Arm Rests
Figure 1-10. Plugging in the MCU
Figure 1-11. Securing LCD Monitor
Slide monitor
through brackets
Secure monitor
with set screw
