Step 2. Locate the weight stack pins and ROM stop pin and place them in the correspond-
ing holes on the calibration plate (Figure 1-5).
Step 3. Locate the head braces and secure them to the calibra-
tion plate (Figure 1-6).
Step 4. Locate the Velcro straps and RJ45 cables. These may be placed on the computer
cart.
Step 5. Locate the calibration weights and calibration block and
place them in the triangular bracket on the base (Figure 1-7).
Step 6. Locate the 2 antennas and then locate the far-
right hole on the top back of the MCU™ station. Insert
one of the antennas through this hole and secure it to the
PCB (Figure 1-8).

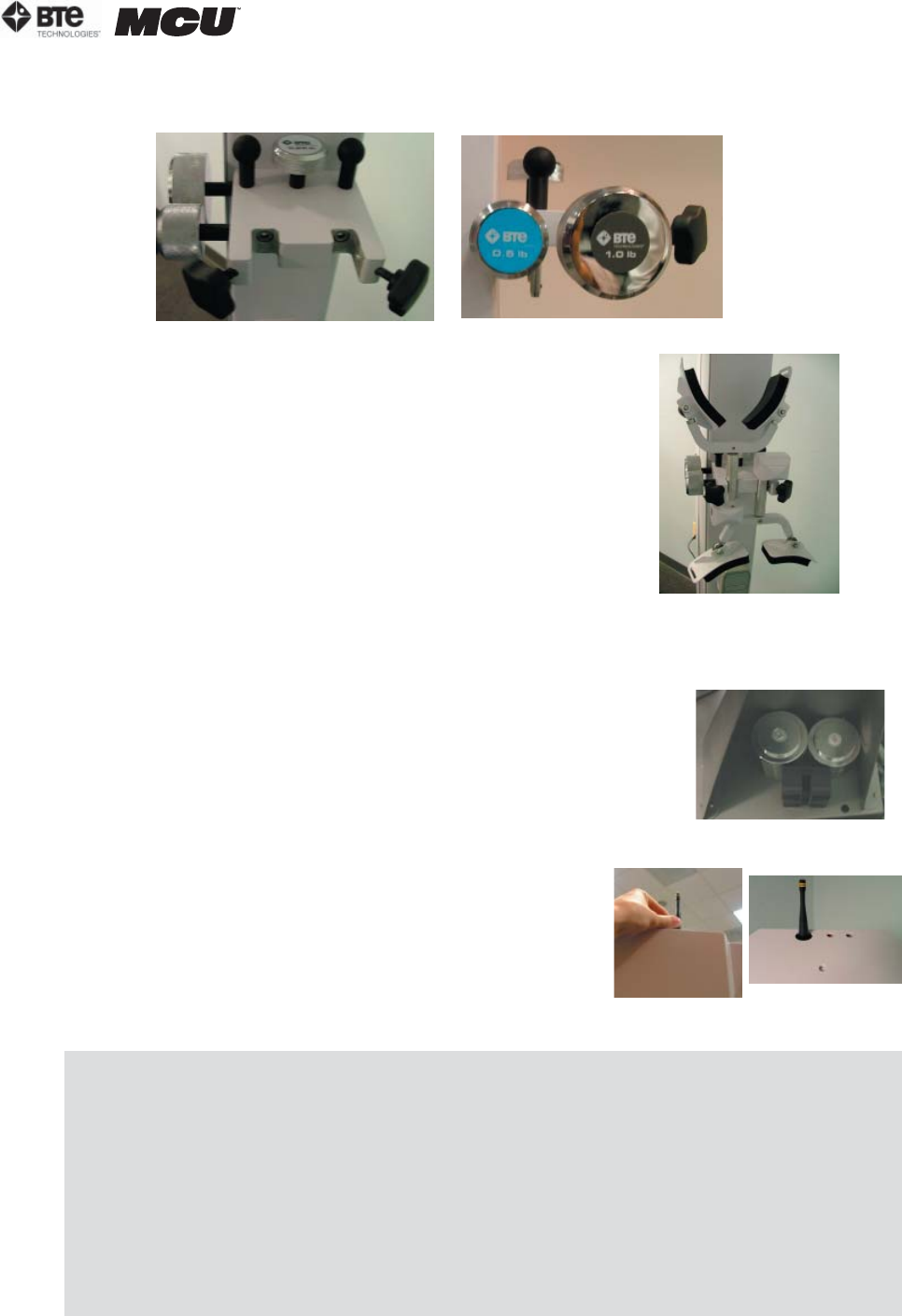

Figure 1-5. Location of Weight Stack Pins & ROM STop Pin
Figure 1-6. Head Braces
Secured to Column
Figure 1-7. Location
of Calibration Tools
Figure 1-8. Attaching the
Antenna
ACCEPTABLE ANTENNA(S)
This device has been designed to operate with the antenna(s) listed below and having
a maximum gain of 2.7 dBi. Antennas not included in this list or having a gain greater
than 2.7 dBi are strictly prohibited for use with this device. The required antenna im-
pedance is 50 ohms.
Acceptable antenna(s) include:
1. Linx Technologies 916MHz 1/4 Wave Whip Antenna (ANT-916-CW-QW)
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that permitted for successful communication.
