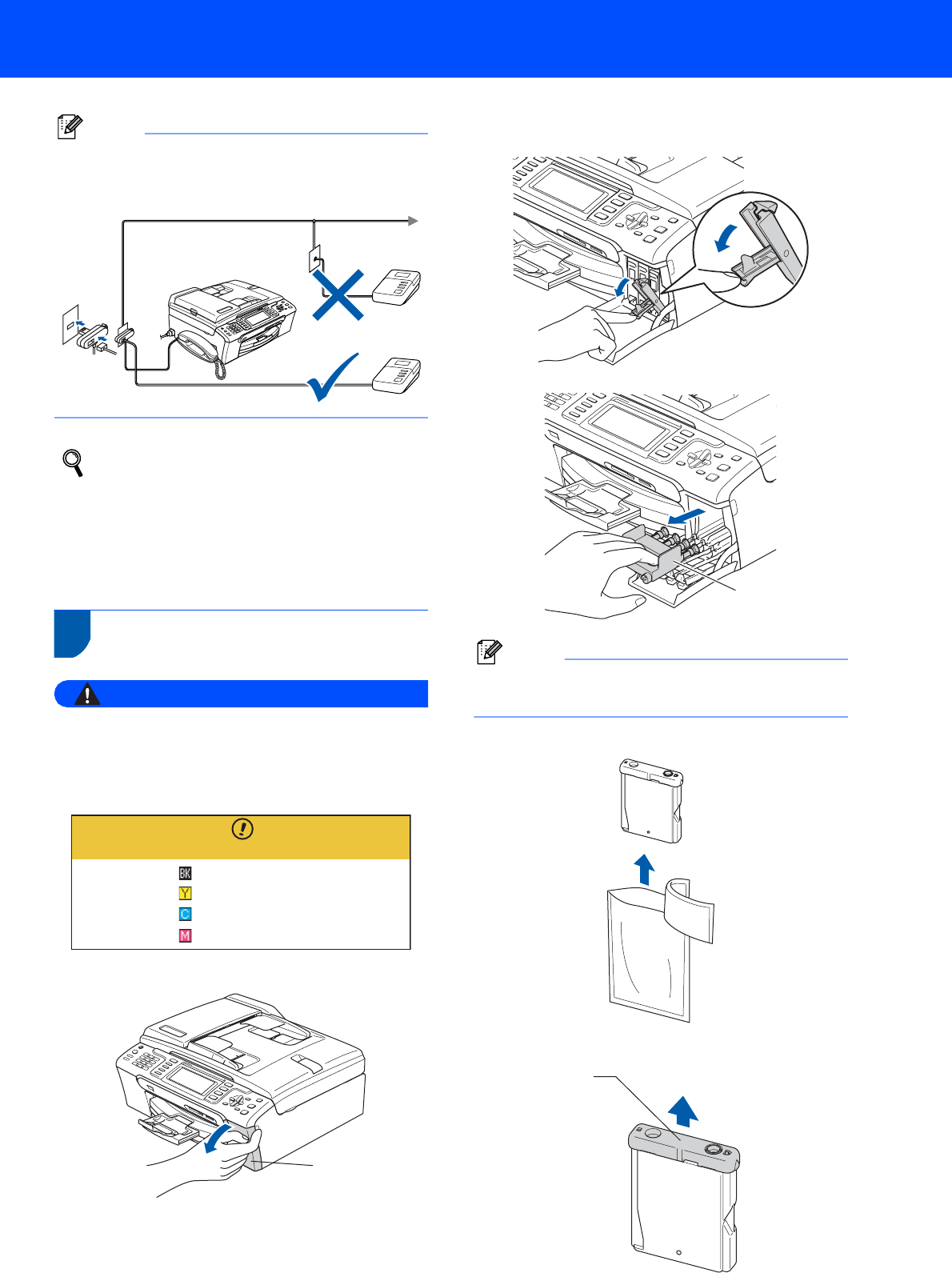

Setting Up the Machine
7
Note
If you are sharing one telephone line with an
external telephone answering machine, connect it
as shown below.
Set the receive mode to ‘Manual’ if you have
an external answering machine. For details,
see Connecting an external TAD (telephone
answering device) in Chapter 7 of the User’s
Guide.
5 Installing the ink cartridges
Warning
If ink gets in your eyes, wash them out with water
at once, and if irritation occurs consult a doctor.
1 Make sure that the power is turned on.
The LCD shows:
2 Open the ink cartridge cover (1).
3 Pull all the lock release levers down and
remove the yellow protective part (1).
Note
Do not throw away the yellow protective part. You
will need it if you transport the machine.
4 Take out the ink cartridge.
5 Carefully remove the protective yellow cap (1).
No Cartridge
Black
Yellow
Cyan
Magenta
1
1
1
