5-12 Section 5: Module Configuration
Moseley SL9003Q 602-12016 Revision G
5.5 IF Card Upconverter/Downconverter
There are no user adjustments on this card. All calibrations are factory-set, and
configuration settings are controlled remotely by software (via the front panel or serial
port).

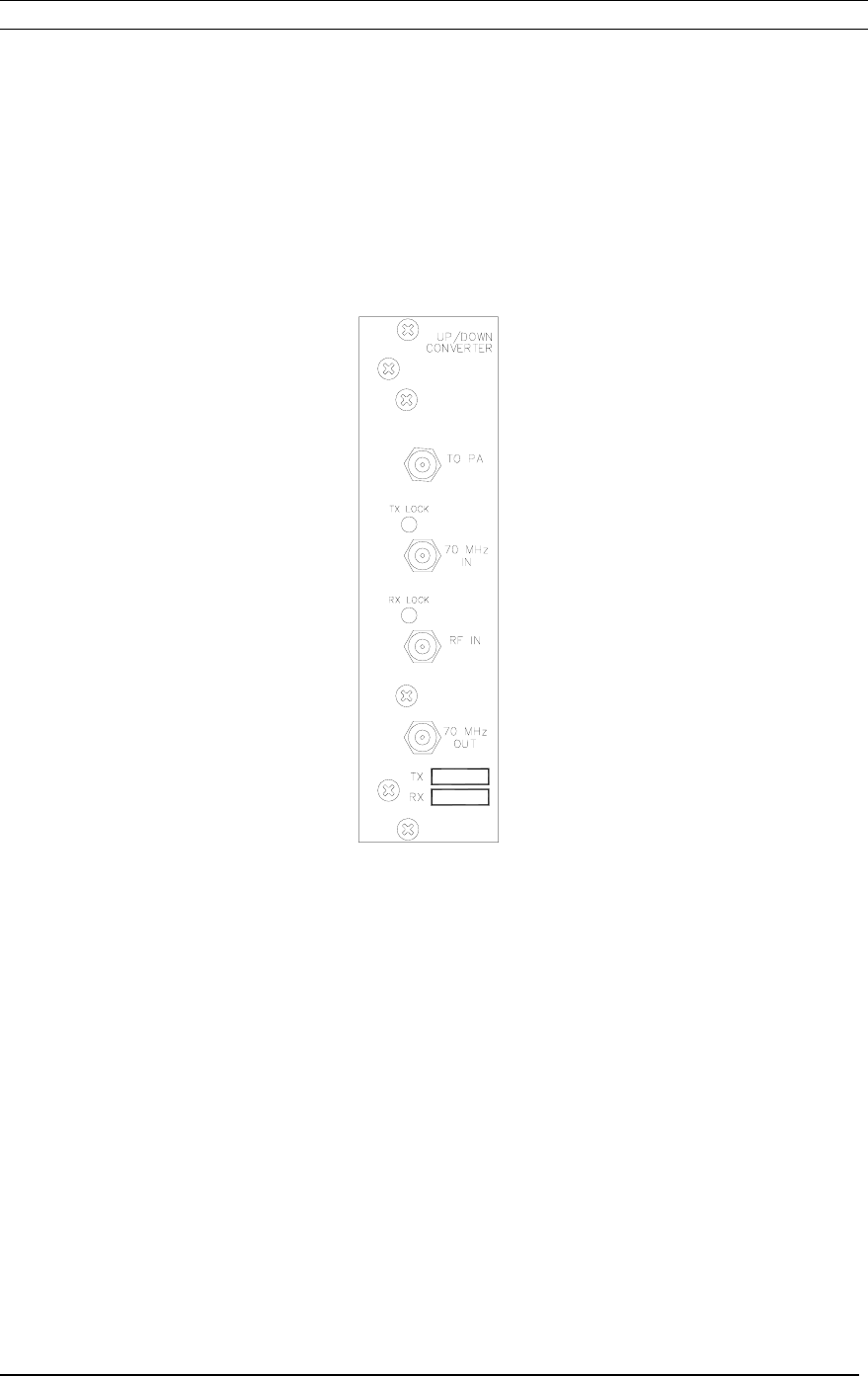

Figure 5-12 Up/Down Converter Front Panel
5.6 Transmit/Receiver Module (RF Up/Downconverter)
There are no user adjustments on this card. All calibrations are factory-set, and
configuration settings are controlled remotely by software (via the front panel or serial
port).
5.6.1. Changing Frequency — TX
The carrier frequency of the transmitter may be changed via the front panel within a 20
MHz range without internal adjustment or realignment.
This is accomplished as follows:
1. Power-up the unit and navigate the LCD screens as follows and press enter:
