Specification Sheet

Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
• Solid brass construction
• Rotating handshower cradle rotates 90˚ in
either direction
• Insulated floor and deck risers to control surface
condensation and heat
• 60"-82" stretchable finished metal hose
• High flow ceramic contol valves
• Twin lever handles
• Certified dual check valves in handshower, 1.75 gpm
@ 80 psi, 6.60 L/min @ 550 kPa
• Bi-directional diverter
• Dual column design, 8" center-to-center
• Drain not included
• Requires mounting hardware:
- RP73764 ▲ wall mount unions
- RP73765 ▲ deck mount risers
- RP73766 ▲ floor mount risers
• Floor mount configuration requires rough-in to
complete installation:
- R70200-WS with integrated stops
- R70200 without stops, provides maximum flow
• *Optional riser extension set (RP73767 ▲ ) provides
2" of additional spout height for deck or floor mount
configurations
• **Optional spout reach extension set (RP80157 ▲ )
provides 2" of additional spout reach for wall, deck,
and floor mount configuration
T70385▲
0
2
4
6
8
10
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
12
069 138 207 276 345 414 483 552 621
0
7.6
15.1
22.7
30.3
37.9
45.4
Pressure (kPa)
Flow (Liters Per Minute)
14
53.0
60.6
68.2
16
18
Handshower
Tub Filler
Tub Filler w/ R70200-WS
TWO HANDLE
WALL, DECK, AND
FLOOR MOUNT
TUB FILLER
■ Charlotte
®
Collection
■ Wall, Deck or Floor Mount
BSP-B-T70385 Rev. F
13 1/4"
(337 mm)
▲ Designate Proper Finish Suffix
4"
(102 mm)
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
**11 3/4"
(298 mm)
10 1/8"
(257 mm)
8"
(203 mm)
2 1/2"
(64 mm)
Dia.
**5 13/16"
(148 mm)
WARNING: Risk of personal injury. Do not
use the tub filler as a grab bar or support bar.
Install this product according to the
installation guide.

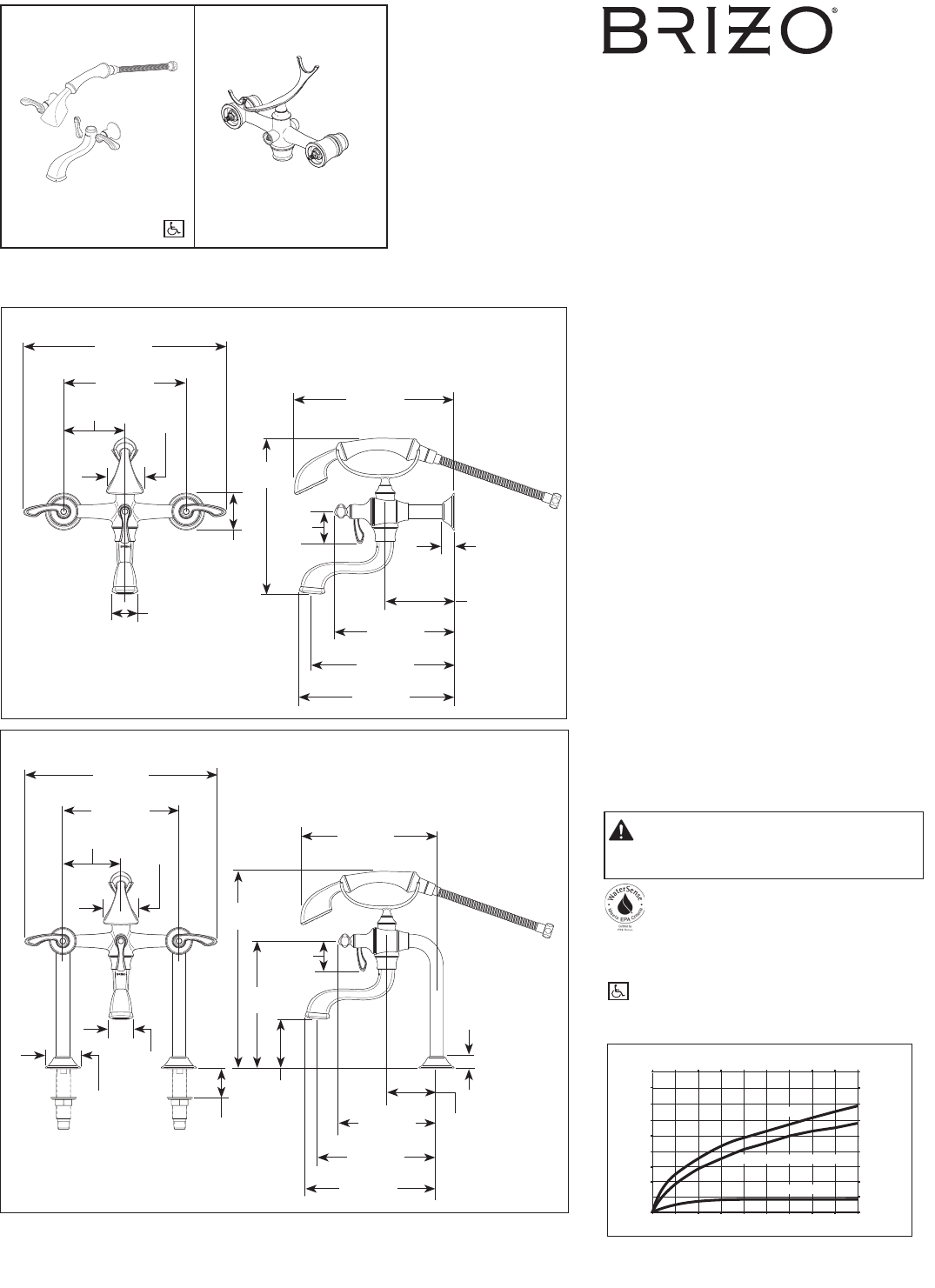

Wall Mount Configuration
Deck Mount Configuration
1 3/4"
(44 mm)
2 1/2"
(64 mm)
**9 1/8"
(232 mm)
**10 5/8"
(270 mm)
**11 7/16"
(291 mm)
2 1/8"
(54 mm)
2 1/8"
(54 mm)
**9 3/8"
(238 mm)
*8 3/4"
(222 mm)
*13 9/16"
(344 mm)
*3 7/16"
(87 mm)
**3 1/2"
(89 mm)
**6 3/4"
(171 mm)
**8 1/4"
(210 mm)
**9 1/16"
(230 mm)
13 1/4"
(337 mm)
8"
(203 mm)
4"
(102 mm)
2 1/2"
(64 mm)
1 3/4"
(44 mm)
2 1/2"
(64 mm)
T70210-▲LHP
7/8"
(22 mm)
7/8"
(22 mm)
3"
(76 mm)
Max. Deck
Thickness
Brizo Kitchen & Bath Company reserves the right (1) to make changes in specifications and materials, and (2) to
change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current
full-line price book or www.brizo.com for finish options and product availability.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
• EPA WaterSense - Applies to handshower only -
RP70609*
Brizo Kitchen & Bath Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2017 Brizo Kitchen & Bath Company
