All electrical connections and the installation of this fixture must be in agreement with local codes,

ordinances or the NEC (National Electric Code) or CEC (Canadian Electrical Code).

Do not connect this fixture to an electrical system that does not provide a means for equipment grounding.

FIXTURE INSTALLATION GUIDE

Caution: Turn off power to electrical box before installing

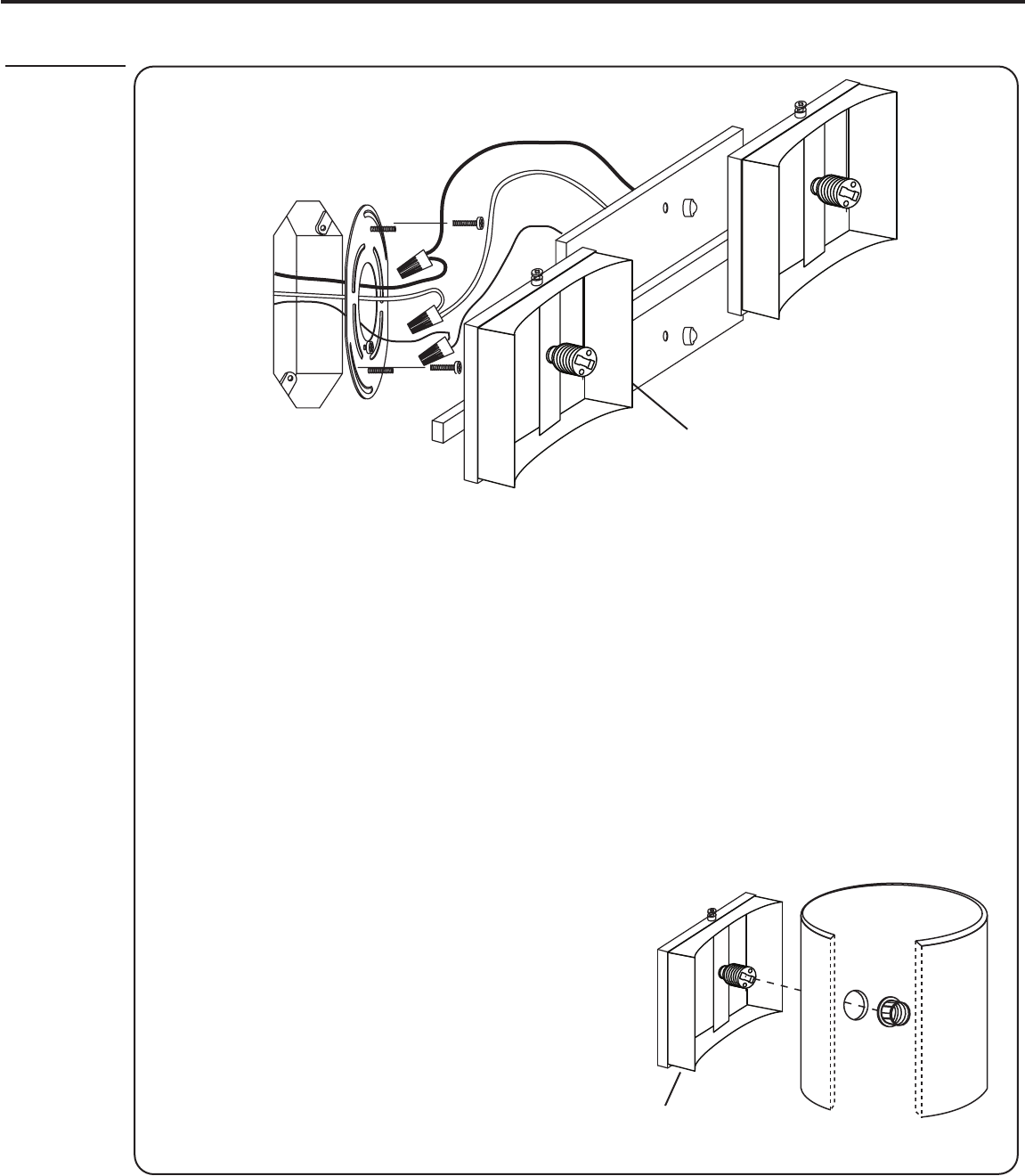

1. Carefully remove parts from package.

2. Remove the two Cap Nuts (A) to release the Canopy from the Mounting Bracket (B).

3. If desired, the Canopy can be offset by 7/8” in each direction. Loosen the two hex nuts on the

back of the canopy, reposition the canopy to the desired location, then retighten the hex nuts.

4. Attach the Mounting Bracket to the Outlet Box (C) with two Machine Screws (D) provided.

5. Connect the electrical leads from the fixture to the house supply wires, black to black and

white to white, and secure with wirenuts provided (E). Connect the House Ground Wire to the

Bare Copper Lead from the fixture, and secure with wirenut provided (F).

6. Align the circular openings on the Canopy with the Threaded Posts (G) on the Mounting Bracket.

Push the Canopy over the Threaded Posts until the Canopy is flush with the wall,

then secure with the Cap Nuts.

7. With the power still off, insert bulb of not more than the labeled wattage. Install glass diffuser.

Canopy

GLASS INSTALLATION:

Install Glass Diffuser by aligning hole of Glass Diffuser

with the socket of the Fixture (H). Then install Glass

Diffuser onto Fixture by threading on Check Ring (I).

NOTE: Glass Diffuser shown is for example

purposes, the actual Glass Diffuser may be

different in appearance.

Canopy

Inside

Glass Diffuser

8. Restore power.

Series (Two Light Vanity 120V)

PAGE 1
FIXTURE INSTALLATION GUIDE Series (Two Light Vanity 120V) Caution: Turn off power to electrical box before installing Use With these Models: G D E A F C B Canopy 1. Carefully remove parts from package. 2. Remove the two Cap Nuts (A) to release the Canopy from the Mounting Bracket (B). 3. If desired, the Canopy can be offset by 7/8” in each direction. Loosen the two hex nuts on the back of the canopy, reposition the canopy to the desired location, then retighten the hex nuts. 4.
PAGE 2
FIXTURE INSTALLATION GUIDE Series (Three Light Vanity 120V) Caution: Turn off power to electrical box before installing Use With these Models: A G D E C B F 1. Carefully remove parts from package. 2. Remove the two Cap Nuts (A) to release the Canopy from the Mounting Bracket (B). 3. If desired, the Canopy can be offset by 7/8” in each direction. Loosen the two hex nuts on the back of the canopy, reposition the canopy to the desired location, then retighten the hex nuts. 4.
PAGE 3
FIXTURE INSTALLATION GUIDE Series (Four Light Vanity 120V) Caution: Turn off power to electrical box before installing Use With these Models: D G E C B F A 1. Carefully remove parts from package. 2. Remove the two Cap Nuts (A) to release the Canopy from the Mounting Bracket (B). 3. If desired, the Canopy can be offset by 7/8” in each direction. Loosen the two hex nuts on the back of the canopy, reposition the canopy to the desired location, then retighten the hex nuts. 4.
