Specification

This specification and all information contained herein is the confidential and exclusive property of
BrassCraft Manufacturing, and shall not be disclosed to others without the written consent of BrassCraft
Mfg. This specification must be returned to BrassCraft Mfg. if requested.
300.100 62 Series Compression Union REV 03/16 2016 BrassCraft Mfg.
Product Submittal Form

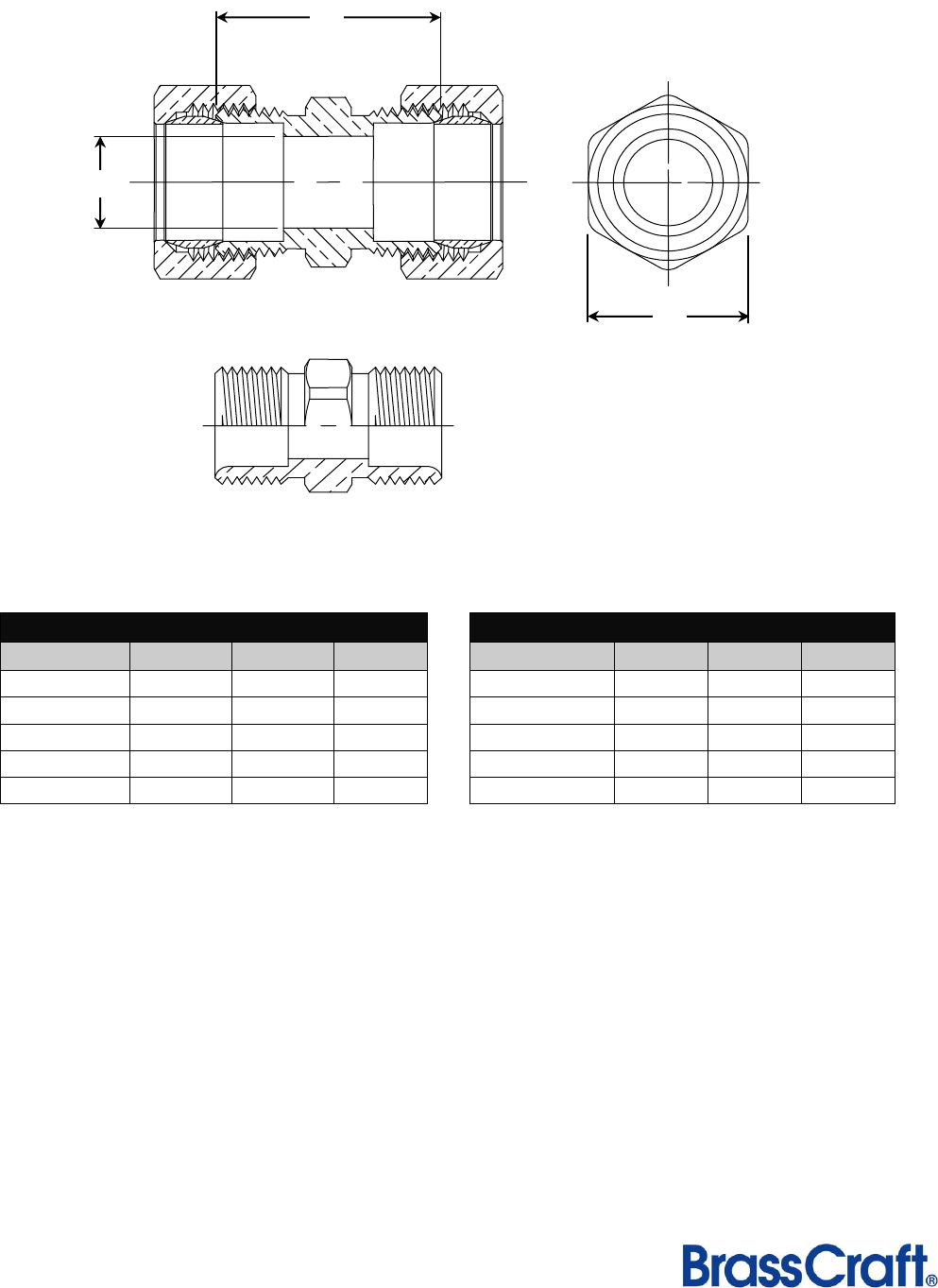

62 Series Compression x Compression Unions
PART DIMENSIONS (Inches)
PART DIMENSIONS (Inches)
Model
DIM. A
DIA. B
HEX. C
Model
DIM. A
DIA. B
HEX. C
62-2
0.64
0.940
5/16
62-7
1.02
0.312
5/8
62-3
0.75
0.125
3/8
62-8
1.09
0.408
11/16
62-4
0.78
0.125
7/16
62-10
1.25
0.531
13/16
62-5
0.87
0.252
1/2
62-12
1.40
0.562
1
62-6
0.96
0.314
9/16
62-14
1.14
0.750
1-1/8
B
A
C
Less nuts & sleeves
