Specification

Job Name Engineer / Architect
Job Location Wholesaler
Submittal Date Contractor
This specification and all information contained herein is the confidential and exclusive property of
BrassCraft Manufacturing, and shall not be disclosed to others without the written consent of BrassCraft
Mfg. This specification must be returned to BrassCraft Mfg. if requested.
300.100 62 Series Compression Union REV 03/16 2016 BrassCraft Mfg.
Product Submittal Form

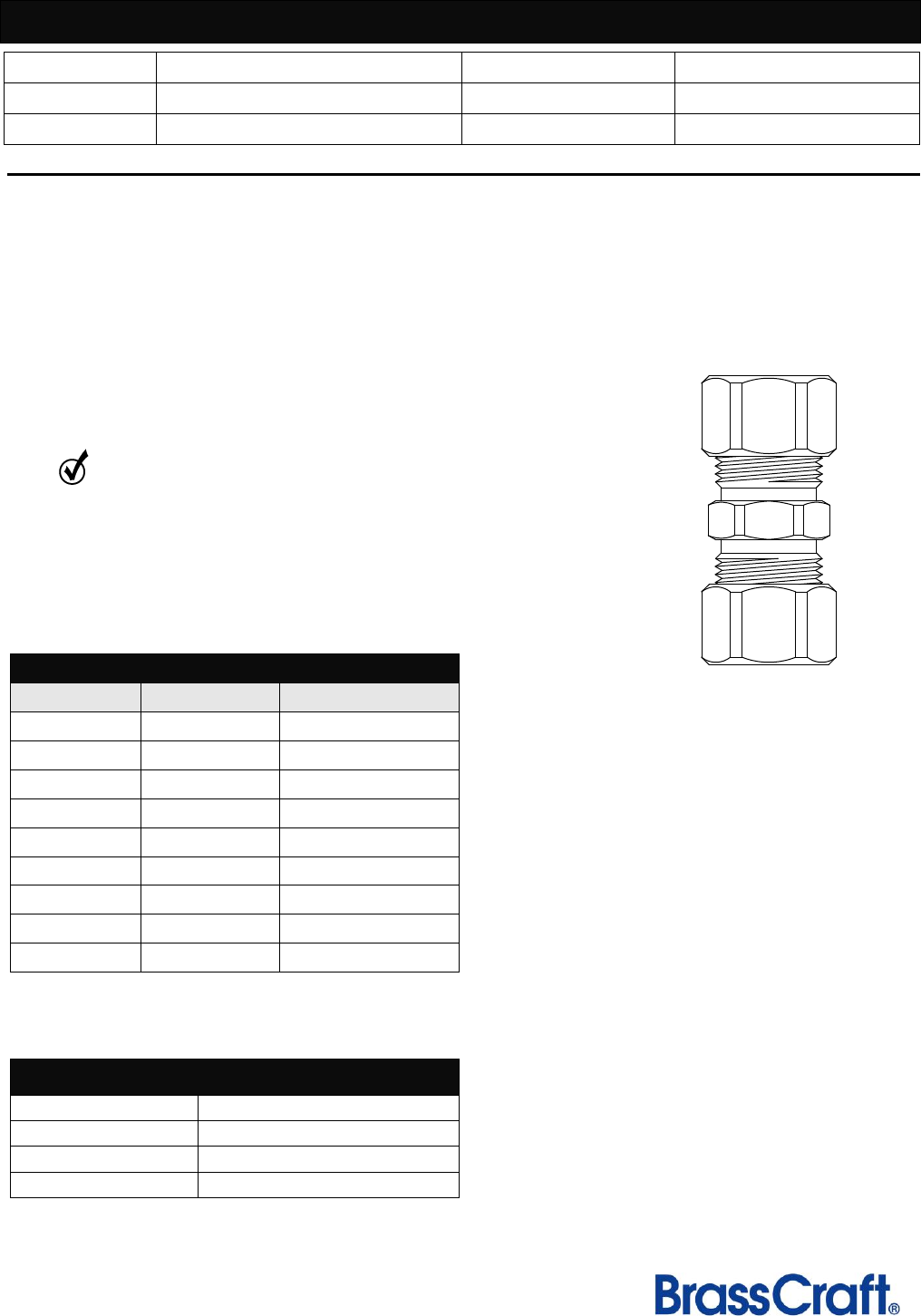

62 Series Compression x Compression Unions
Use: For use with potable and non-potable water, instrumentation, hydraulic, and pneumatic systems.
Designed for use with aluminum, copper, and plastic tubing*. Not intended for use with steel tubing.
* Plastic tubing requires a plastic insert and sleeve (see 60PT & 63PT submittal forms for details)
Design Features:
 Little to no tube preparation. Compression fittings do not
require flaring, soldering, or other types of tube preparation
 Available in a broad range of sizes
 No-lead available
Operating Specifications:
Temperature: -65°- 250°F at maximum operating pressures
Working Pressure: See chart below
Vibration: Fair vibration resistance
WORKING PRESSURE
PSI
Tube OD
Tube Wall (Inches)
400
1/8
0.030
400
3/16
0.030
300
1/4
0.030
300
5/16
0.032
200
3/8
0.032
200
1/2
0.032
150
5/8
0.035
100
3/4
0.035
75
7/8
0.035
Standard Product
MATERIAL SPECIFICATIONS
Body
Brass
Compression Sleeve
Brass
Compression Nut
Brass
Option
Chrome plating
For Residential and Commercial Applications
