80

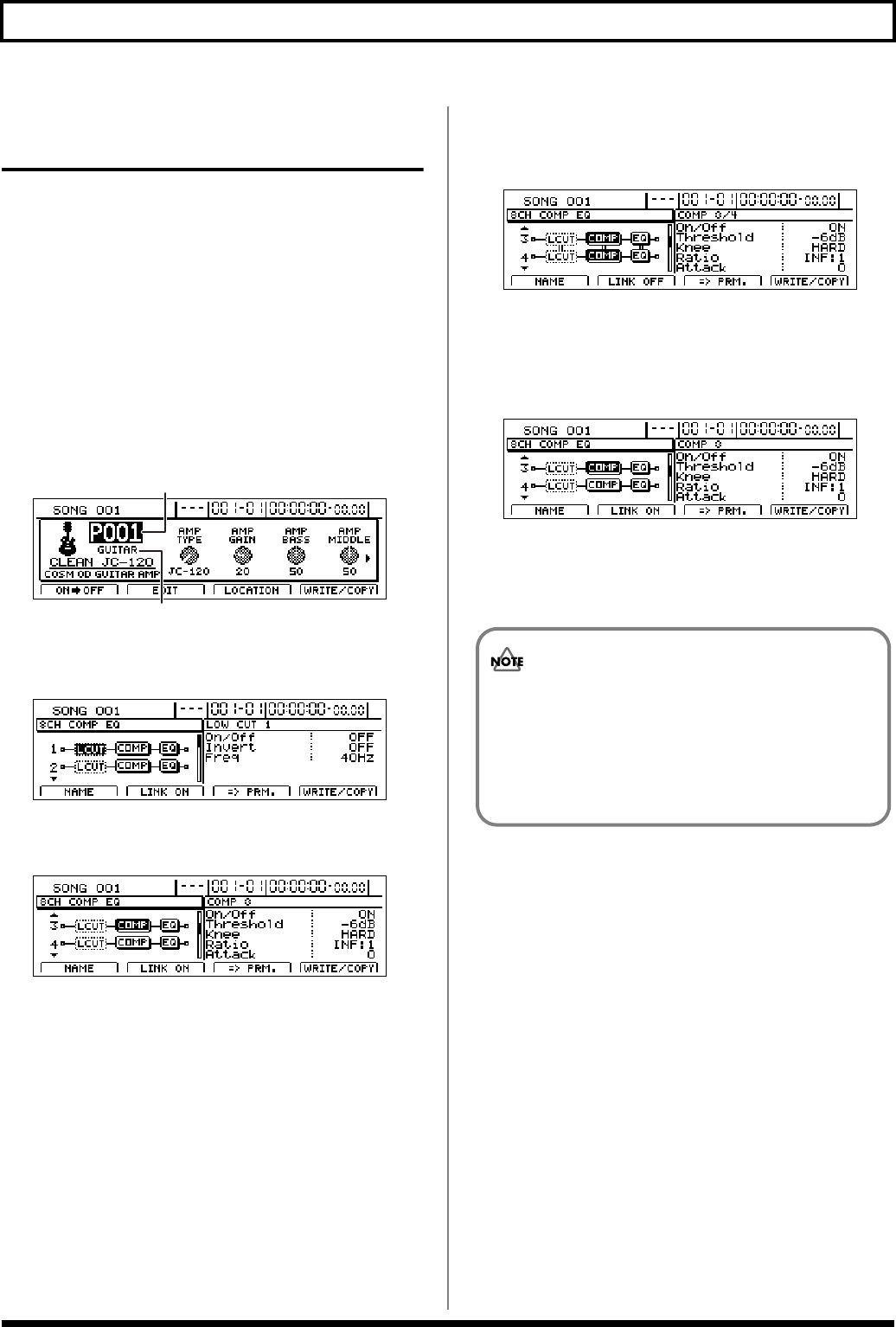

Using insert effects
Switching compressors, equalizers, and
low-cut filters between stereo and mono
When the 8CH COMP EQ algorithm has been selected, you
will be able to set the effect blocks for adjacent inputs (e.g.,
INPUT 1 and INPUT 2, or INPUT 3 and INPUT 4) to stereo
operation (Stereo Link).
As a result, the BR-1600CD allows you to apply exactly the
same effect to stereo sounds that are input on a left and right
channel.
1.
Start off by selecting a patch that uses the 8CH COMP
EQ algorithm.
2.
Press [EFFECTS].
The Effects Patch screen will appear.
fig.31-01d
3.
Press [F2] (EDIT).
The Effects Edit screen will appear.
fig.31-102d
4.
Move the cursor to the effect for which Stereo Link is to
be turned on.
fig.31-54ad
To turn on Stereo Link for INPUT 1 and INPUT 2, move
the cursor to an effect block displayed on a row with
either 1 or 2 on the left-hand side.
Similarly, to turn on Stereo Link for INPUT 7 and INPUT
8, move the cursor to an effect block displayed on a row
with either 7 or 8 on the left-hand side.
5.
Press [F2] (LINK ON).
Stereo Link will turn on and the display for [F2] will
change to (LINK OFF).
fig.31-55d
6.
Press [F2] (LINK OFF) if you want to turn Stereo Link
off.
Stereo Link will turn off and the display for [F2] will
change to (LINK ON).
fig.31-56d
7.
To save the Stereo Link settings, carry out the
procedure described in “Saving insert effect settings
(Effect Patch Write)” (p. 81).
Patch number
Bank
When Stereo Link is turned on, the parameters for
each of the adjacent effect blocks will use the same
values, and when one of these parameters is
modified, the same parameter from the
corresponding adjacent effect will be automatically
and simultaneously modified.
