Using insert effects
Section 2
Changing effect block connections
When you have selected the COSM OD GUITAR AMP
effects algorithm, you will be able to freely modify the way in
which the algorithm's internal effect blocks are connected. As
a result, you will be able to try out a wide range of different
effect sequences in the same way as if you were using
compact pedal effects and audio cables.
In order to change sequences in this way, you will first of all
need to select a patch using the COSM OD GUITAR AMP
algorithm.

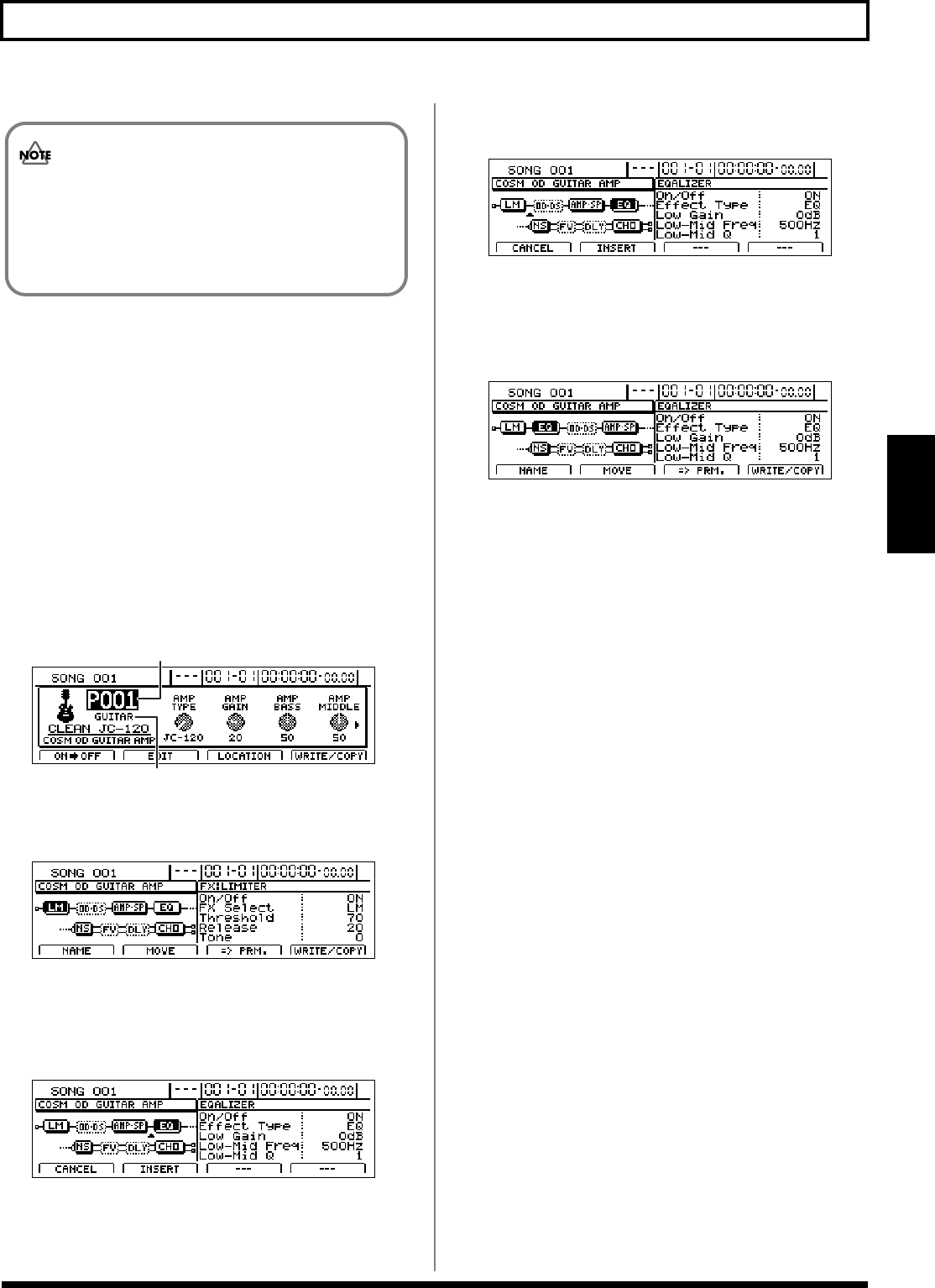

1. Press [EFFECTS].
The Effects Patch screen will appear.
fig.31-01d
2. Press [F2] (EDIT).
The Effects Edit screen will appear.
fig.31-02d
3. Move the cursor to the effect block whose connection
sequence is to be modified, and then press [F2] (MOVE).
The effect block's icon will change and “ ▲ ” will appear
at the current connection position.
fig.31-52d
4. Using [CURSOR], move the “ ▲ ” to the new connection
position.
fig.31-53d
If you want to cancel the operation, press [EXIT/NO] or
[F1] (CANCEL).
5. Press [ENTER/YES] or [F2] (INSERT).
The effect block will be connected at the new position.
fig.31-54d
6. If you want to reposition any of the other effect blocks,
repeat Steps 3 through 5.
7. To save your modified connections, carry out the
procedure described in “Saving insert effect settings
(Effect Patch Write)” (p. 81).
The parameters that can be assigned will depend on
the selected effect algorithm. For more detailed
information, refer to “Effect parameters assigned to
VALUE knobs” (p. 137).
