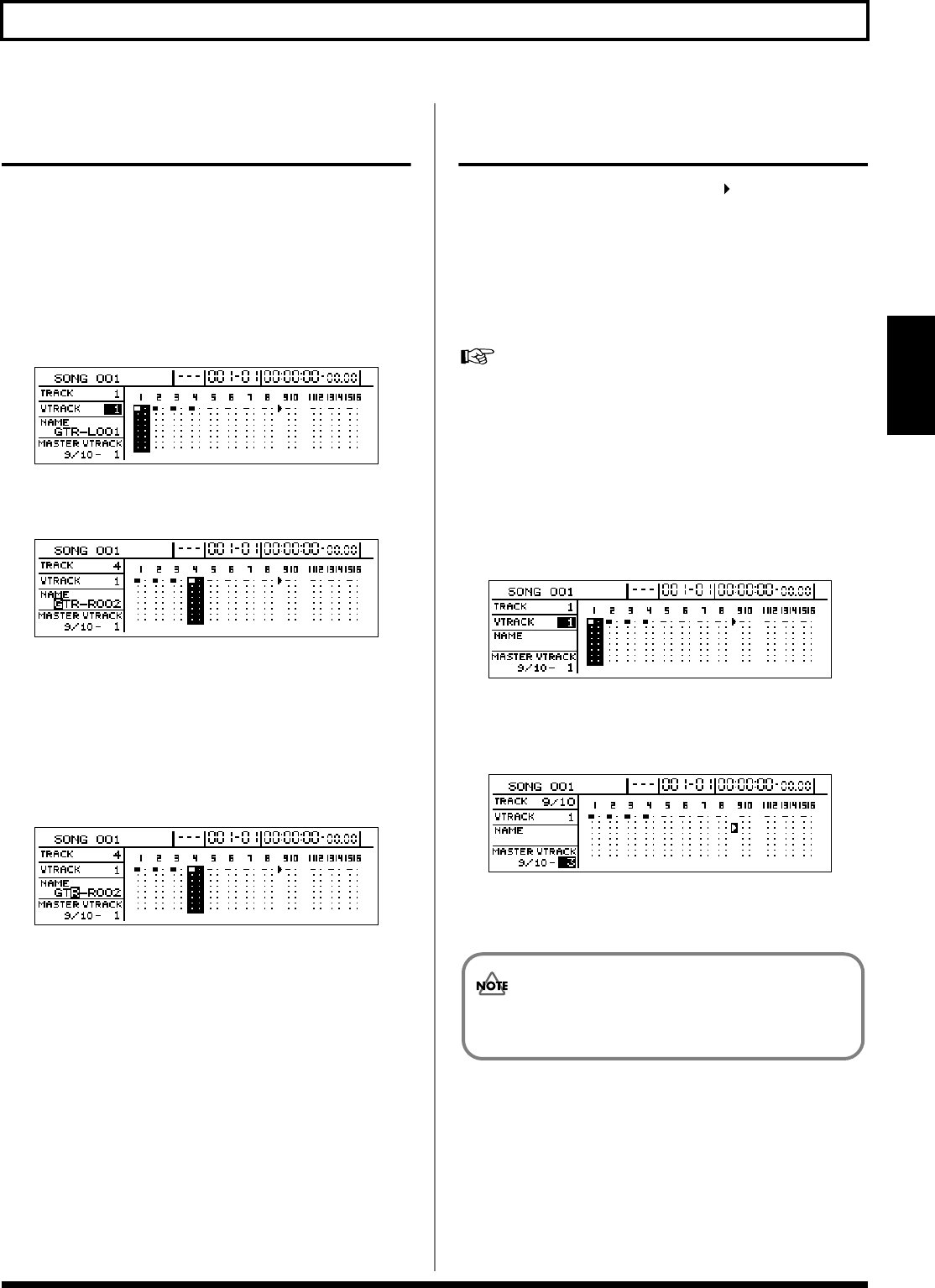

Using V-Tracks
Section 1
Assigning names to V-Tracks
(Track Name)
Names can be assigned to any or all of the BR-1600CD’s 256
V-Tracks. Although a name corresponding to the Input Select
(i.e., Track Name) used for a V-Track is assigned
automatically when it is initially recorded to, you can easily
edit this name later on.
1.
Press [V-TRACK].
The V-Track screen will appear.
fig.11-01d
2.
Use [CURSOR] and the TIME/VALUE dial to choose
the V-Track that you are going to name.
fig.11-05d
In addition to the cursor, the TRACK buttons can also be
used to directly choose the track selected.
The name of the currently selected V-Track is shown on
the middle left of the display.
3.
Move the cursor to the letter in the name that you want
to change, and then use the TIME/VALUE dial to select
a new letter.
fig.11-06d
4.
When you have finished editing names, press [EXIT/
NO] to return to the top screen.
5.
If you wish to store the edited names, save the current
song (p. 72).
Changing the V-Track to be written to an
audio CD (the Final Mastering Track)
When in Mastering mode, the symbol [ ] will be
automatically placed on the right of the V-Track from Track
9/10 that was most recently used for mastering. This V-Track
is referred to as the Final Mastering Track. This V-Track is
automatically selected for writing to a CD-R/RW disc during
the creation of an audio CD, and you can speed up the entire
process by setting the final mastering track correctly.
For more detailed information regarding mastering,
refer to “Adjusting volume and compression for CD
writing (Mastering Tool Kit)” (Basic Operation; p. 58).
Although the final mastering track is set automatically when
mastering is carried out, you can change this to any other V-
Track later on. Use the following procedure to do so.
1.
Press [V-TRACK].
The V-Track screen will appear.
fig.11-07d
2.
Move the cursor to the “MASTER V-TRACK,” and
then use the TIME/VALUE dial to select the final
mastering track.
fig.11-08d
3.
If you wish to store the new setting for the final
mastering track, save the current song (p. 72).
Only V-Tracks from Track 9/10 can be set as the
final mastering track.
