46

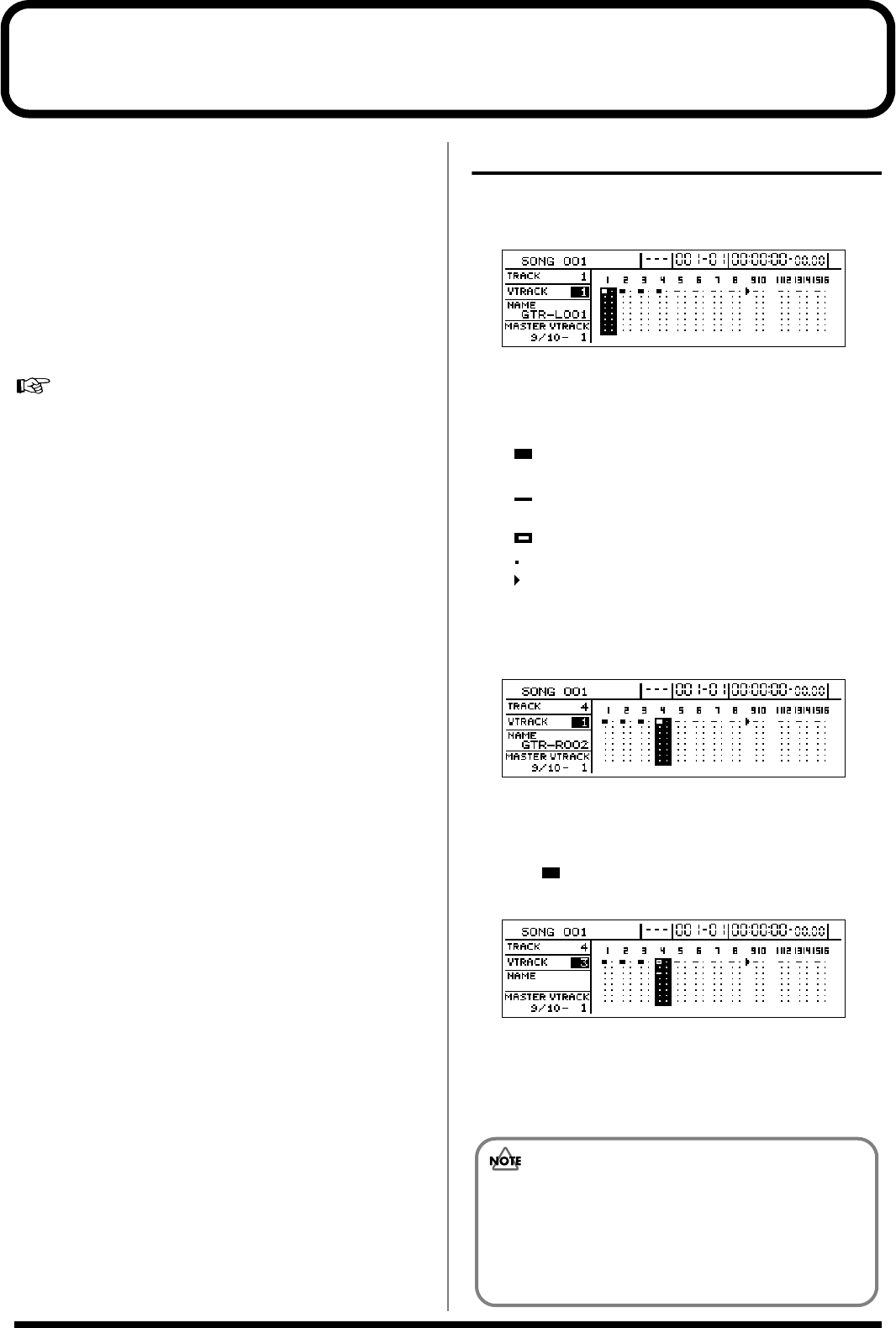

Using V-Tracks
Although the BR-1600CD is a 16-track multi-track recorder,
you can select any one of sixteen V-Tracks for each of these
tracks. In this way, you can use the BR-1600CD as if it were
actually a 256-track multi-track recorder. In other words, V-
Tracks can be used to make multiple recordings of guitar
solos, vocals, etc. without having to delete any of these takes,
and this ensures that the best performance can be selected
later on. What’s more, you can also choose the best parts
from takes on a number of different V-Tracks and combine
them onto a single track.
“Editing a recorded performance (Track Edit)” (p. 56)
Switching V-Tracks
1.
Press [V-TRACK].
The V-Track screen will appear.
fig.11-01d
The currently selected track is shown on the top left of the
display, together with the number of the V-Track that is
selected for it. In addition, the name of the currently
selected V-Track is shown on the middle left of the display.
( ): Currently selected V-Track (containing
recorded audio data)
( ): Currently selected V-Track (not containing
recorded audio data)
( ): V-Track containing recorded audio data
( ): V-Track not containing recorded audio data
( ): The V-Track from Track 9/10 last used for
mastering (Final Mastering Track)
2.
Move the cursor to the track containing the V-Track
you want to change.
fig.11-02d
In addition to the cursor, the track buttons can also be used to
directly choose the track whose settings are to be changed.
3.
Use the TIME/VALUE dial to change the V-Track setting.
The “ ” is displayed when the V-Track containing
recorded audio data is selected.
fig.11-03d
4.
When you have finished selecting V-Tracks, press
[EXIT/NO] to return to the top screen.
5.
If you wish to store the currently selected V-Tracks,
save the current song (p. 72).
• If V-Tracks are changed during playback, this
playback will be interrupted momentarily. Note,
however, that this is normal and does not indicate a
malfunction.
• You cannot use the track buttons in the V-Track
screen to select tracks to be recorded.
