Panel Descriptions
Rear Panel

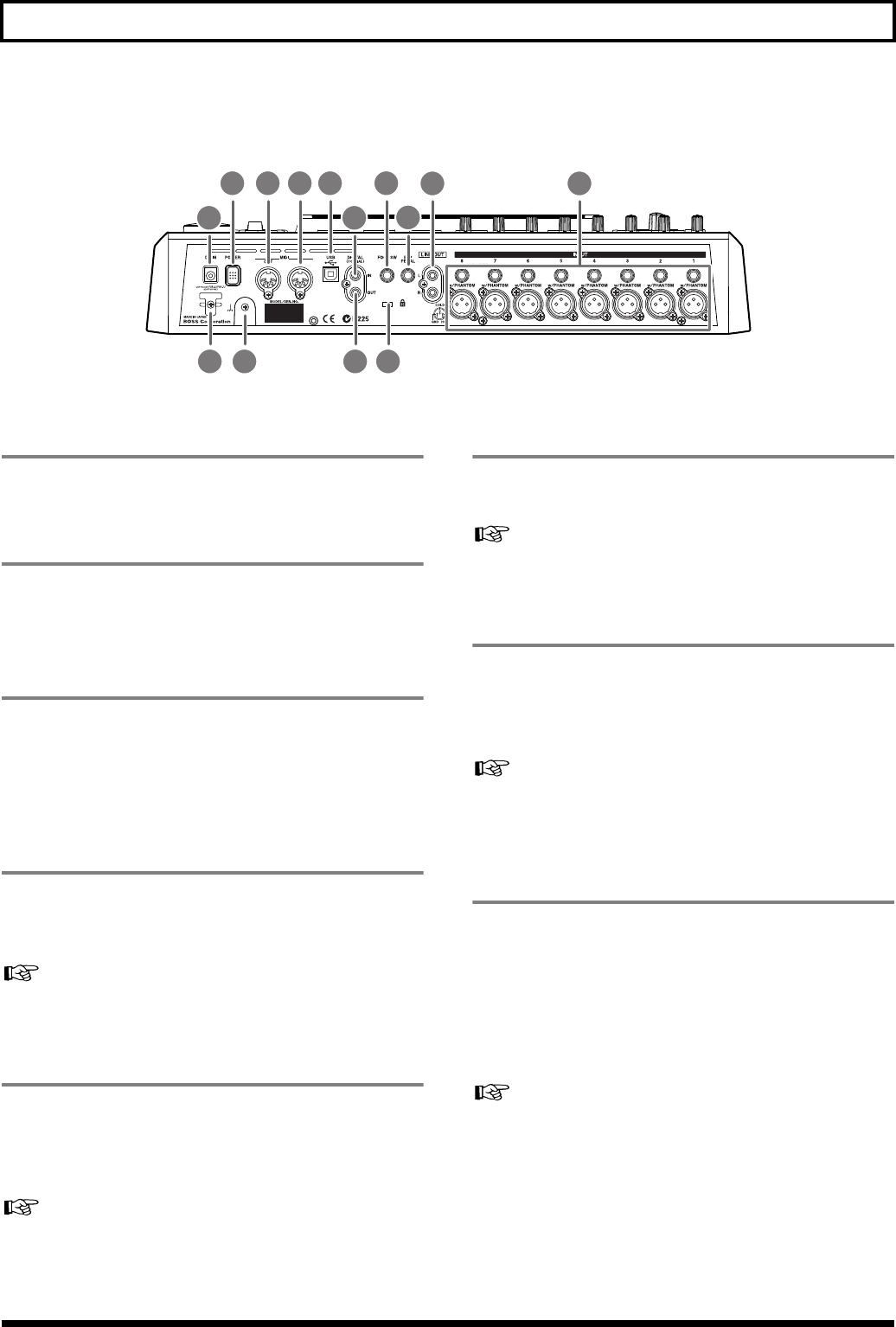

fig.05-04
1. POWER switch
Use this switch to turn the BR-1600CD on and off (Basic
Operation; p. 8).
2. DC IN (AC adaptor) jack
Connect the BR-1600CD’s AC adaptor to this jack.
In order to prevent accidents, avoid using any AC adaptor
other than the AC adaptor supplied with this unit.
3. Cord hook
Loop the AC adaptor’s cord around this hook in order to
prevent its plug from being pulled out accidentally. If the AC
adaptor should be disconnected while you are using the BR-
1600CD, there is a danger of important audio data being
permanently lost.
4. MIDI IN connector
The BR-1600CD receives MIDI data via this connector.
Connect the MIDI OUT connector of external MIDI devices
such as sequencers to this connector using a MIDI cable.
“MIDI connectors” (p. 36)
“Section 5 Using MIDI” (p. 221)
5. MIDI OUT connector
The BR-1600CD transmits MIDI data via this connector.
Connect the MIDI IN connector of external MIDI devices
such as rhythm machines, sequencers, and sound modules to
this connector using a MIDI cable.
“MIDI connectors” (p. 36)
“Section 5 Using MIDI” (p. 221)
6. USB connector
Plug a USB cable into this connector when you want to
exchange data between the BR-1600CD and a PC.
“USB connector” (p. 37)
“Section 6 Using USB” (p. 239)
7. DIGITAL IN connector
This coaxial-type connector is used to input digital audio
signals into the BR-1600CD. Connect it the digital output of a
BOSS GT-8, a CD player, or another similar device to allow
digital audio to be input.
“DIGITAL IN connector” (p. 35)
“Inputting audio with no loss of quality (Digital In
Assign)” (p. 261)
8. DIGITAL OUT connector
This coaxial-type connector is used to output digital audio
signals from the BR-1600CD, and its output is identical to
that of the LINE OUT jack. You can use the DIGITAL OUT
connector to record the BR-1600CD’s output on CD-R or MD
recorders. In addition, it can also be used to make
connections with amplifiers, speakers, and other devices
with digital inputs.
“DIGITAL OUT connector” (p. 36)
