Panel Descriptions
CD-R/RW drive

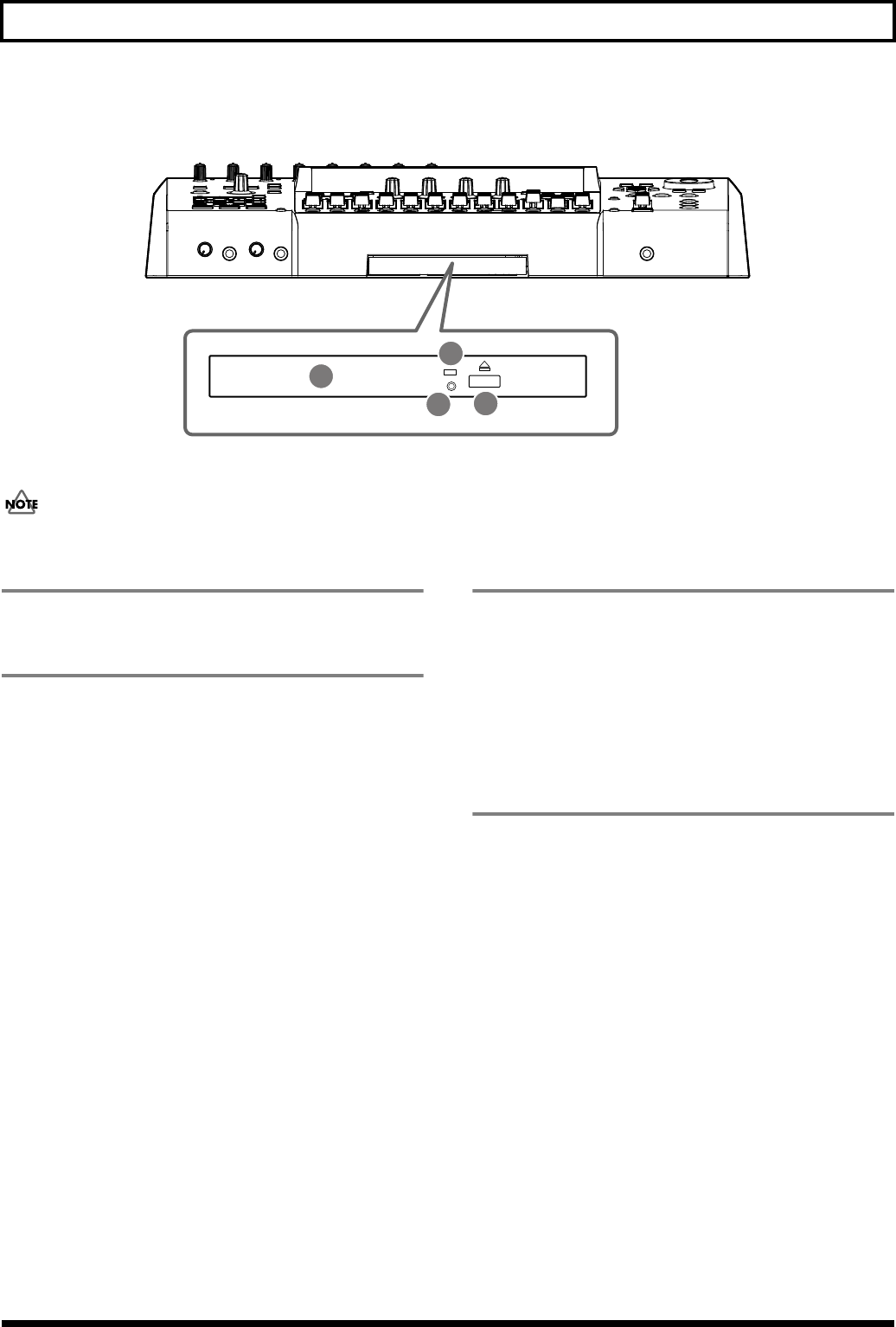

fig.05-02
The BR-1600CD uses this drive unit to read from, write to, and play CD-R/RW discs.
Before you use the CD-R/RW drive, it is important that you first of all read “Before Using CD-R/RW Discs” (p. 7).
1. Disc tray
Place the CD-R/RW discs on this tray.
2. Access indicator
This indicator will light up whenever data is being read from
or written to a CD-R/RW disc.
3. EJECT button
Press this button to eject a CD-R/RW disc from the drive
unit. Note that it will only be possible to eject the CD-R/RW
disc while the BR-1600CD is powered up.
If you need to eject the disc after the power has been turned
off, turn the BR-1600CD back on and then press the EJECT
button. If excessive force is used to extract a disc, you risk
causing damage to the drive.
4. Emergency eject hole
This hole is used when the disc tray must be opened in an
emergency.
It must not, therefore, be used on a regular basis and should
be treated as a last resort only when the disc cannot be
ejected in any other way (p. 8).
1
2
3
4
