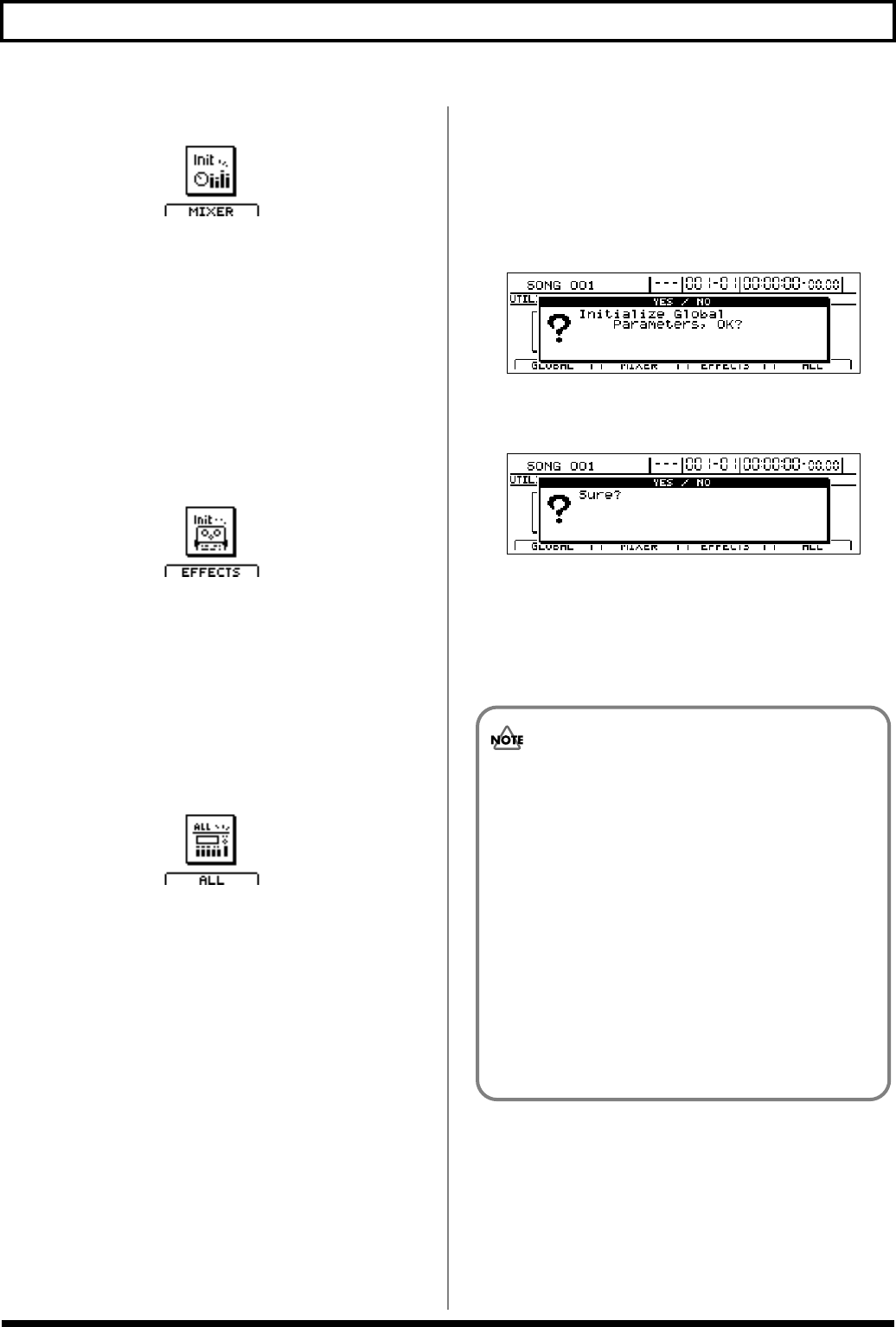

Initializing all BR-1600CD settings (Initialize)
MIXER icon
fig.53-33d
When this icon is selected,
• Track Compressor, EQ, Pan
• Loop Effects
• Input Select
• Level Calibration
• Recording Mode
will be returned to the values they normally have
immediately after Song New (Basic Operation; p. 22) is
performed.
EFFECTS icon
fig.53-32d
When this icon is selected,
• User patches from all insert effect banks
• Vocal Tool Box user patches
• Mastering Tool Kit user patches
• Speaker Modeling user patches
will be initialized and returned to their values at the time
of purchase (i.e., the values for preset patches).
ALL icon
fig.53-34d
When this icon is selected, all global parameters, effect
patches, and mixer parameters will be initialized.
In addition, all data for song markers, Tempo Maps,
Sync Tracks, scenes, and the like will be cleared. The
display contrast will also be returned to the factory
default contrast setting.
3.
Move the cursor to the icon for the parameters to be
initialized and press [ENTER/YES].
Alternatively, you can push the FUNCTION button
below the relevant icon.
The message “Initialize *** OK?” will appear.
Example:) When GLOBAL icon is selected
fig.53-35d
4.
Press [ENTER/YES].
The message “Sure?” will appear.
fig.53-36d
5.
Press [ENTER/YES] once again.
The BR-1600CD will start the initialization process.
When this process has finished, the message
“Complete!” will appear and you’ll automatically be
returned to the top screen.
Precautions for initialization
• Press [EXIT/NO] if you want to cancel an
initialization process.
• In certain cases, the message “Save Current?” will
appear during the initialization procedure, and this
indicates that the current song contains audio that
has been newly recorded or edited, or modified
parameters that have not yet been saved. If you
want to save your song before starting the
initialization process, press [ENTER/YES]; if this
will not be necessary, press [EXIT/NO]. If you
proceed without saving your song, all of the new
recordings, audio edits, and new parameter settings
will be permanently lost.
