249

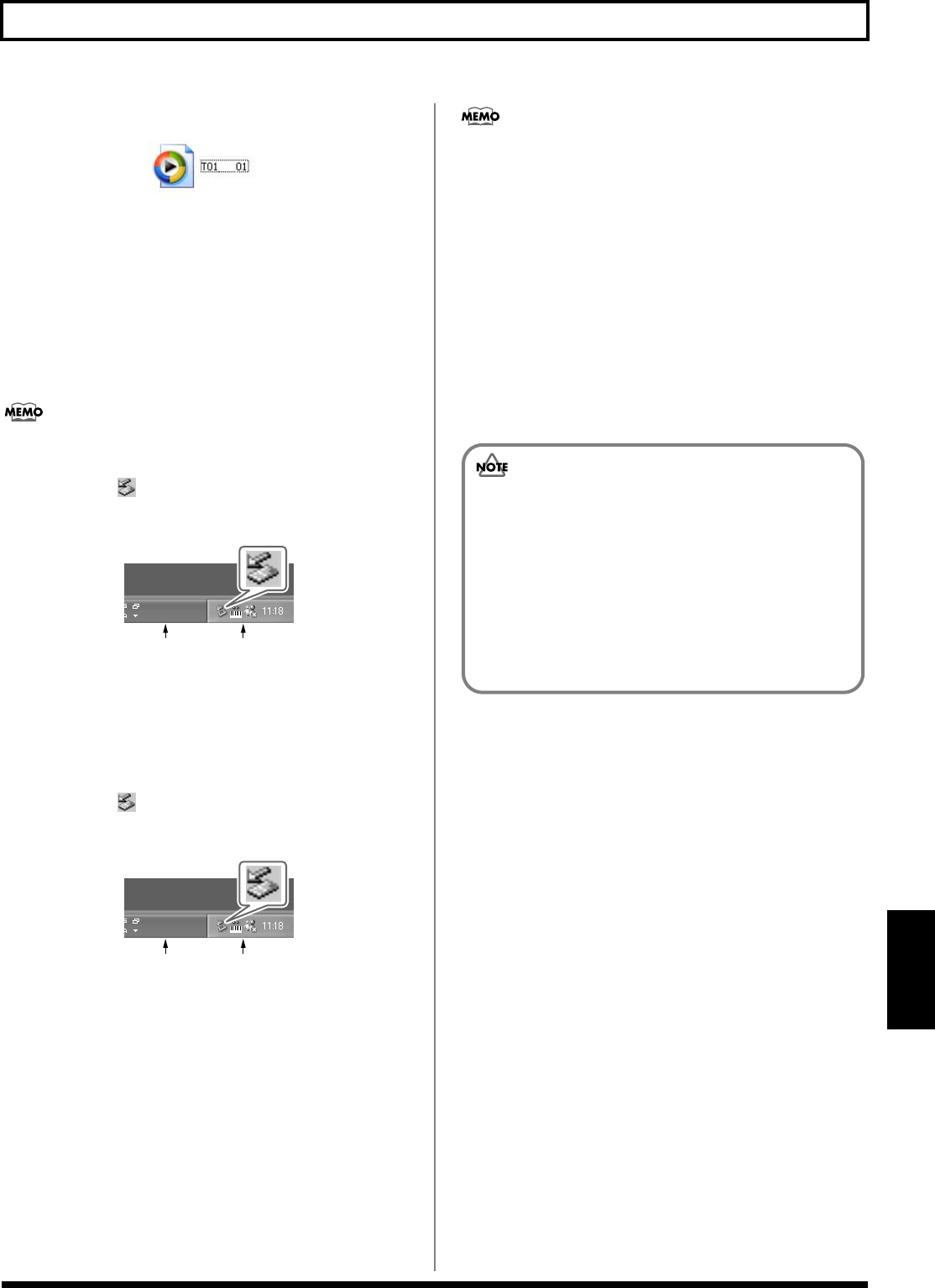

Saving BR-1600CD track data in WAV/AIFF format (WAV/AIFF Export)
Section 6
9.
Click the USB folder.
fig.52-19
10.
Drag the WAV or AIFF file to the computer’s folder and
drop it in the folder.
11.
Quit the connection to the computer.
With Windows XP
In My Computer, right-click on the “BR-1600CD” icon
(or “Removable Disk (*:)” icon) to “Eject” the disk.
If this procedure fails to eject the disk, use the procedure
below
1) Click the icon in the task tray, then click the
“Stop USB Disk-drive (*:)” message displayed there.
fig.52-100
2) Click [OK] in the “Safe To Remove Hardware” dialog
box that appears.
With Windows 2000/Me
1) In My Computer, right-click on the “BR-1600CD” icon
(or “Removable Disk (*:)” icon) to “Eject” the disk.
2) Click the icon in the task tray, then click the
“Stop USB Disk-drive (*:)” message displayed there.
fig.52-100
3) Click [OK] in the “Safe To Remove Hardware” dialog
box that appears.
12.
Press the BR-1600CD’s [EXIT/NO].
The file type selection screen will be displayed once
again.
WAV or AIFF files will be automatically deleted from
the BR-1600CD’s internal hard disk.
• If you are using an OS other than Windows Me, the BR-
1600CD will automatically return to the USB screen
when “Remove Hardware” is carried out.
• If you press [EXIT/NO] without quitting the connection
to the computer, “Disconnect USB, OK?” appear. In this
case, pressing [ENTER/YES] returns the file format
selection screen to the display.
13.
When you have finished exporting the WAV or AIFF
file(s), press [EXIT/NO] several times to return to the
Top screen.
At this point, you can safely disconnect the USB cable
from the BR-1600CD and the computer.
Task tray
Task bar
Task tray
Task bar
If the current song contains newly recorded audio
data or newly modified settings, the message “Save
Current?” may be displayed during the export
procedure. If you want to save your song before
starting the export, press [ENTER/YES]; if this will
not be necessary, press [EXIT/NO]. Remember that
if you do not save a modified song at this time, all
newly recorded audio data, edited data, modified
mixer settings, etc. will be lost.
