Creating Loop Phrases
Section 3
Copying all Loop Phrases in a bank
1.
When you select the Loop Phrase numbers as the copy
source, turn the TIME/VALUE dial clockwise to select
“ALL.”
2.
Select the bank to which the Loop Phrases are to be
copied.
3.
Press [F4] (GO).
All Loop Phrases in the selected bank will now be
copied.
All Loop Phrases in the copy-destination bank will be
overwritten in this process. As it will not be possible to
restore the corresponding data, care should be taken to
ensure that important Loop Phrases are not accidentally
overwritten in this way.
4.
If you copied to the song bank, you should now save
the current song (p. 72).
Erasing Loop Phrases
1.
Press CD-R/RW [LOOP PHRASE IMPORT].
The Loop Phrase screen will appear.

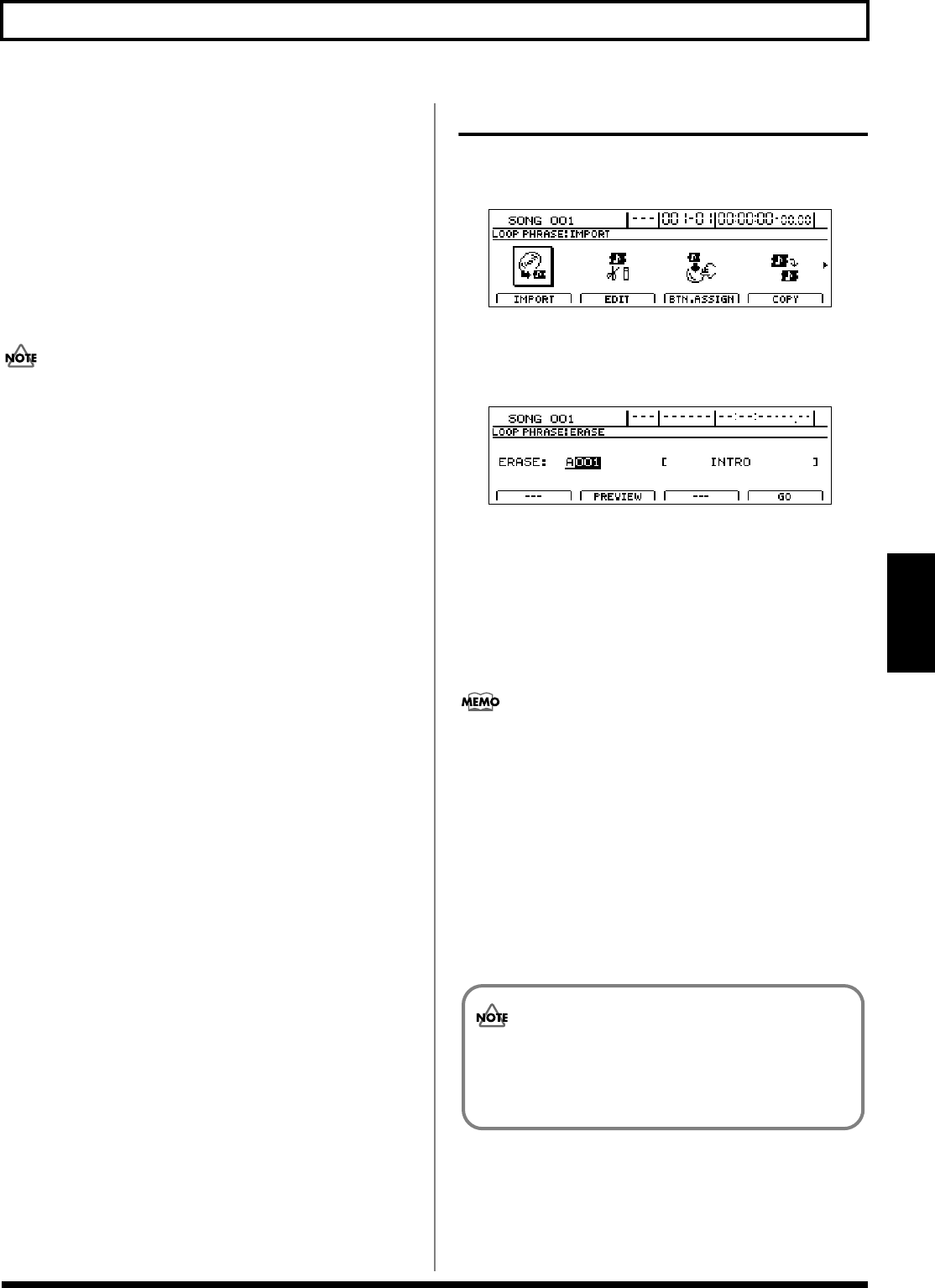

fig.20-090d
2.
Move the cursor to the ERASE icon and press [ENTER/
YES].
The Loop Phrase Erase screen will appear.
fig.20-110d
3.
Select the Loop Phrase to be deleted using the TIME/
VALUE dial.
If you press [F2] (PREVIEW) at this time, you will be able
to play the selected Loop Phrase. This function allows
you to confirm that your loop-phrase selection is correct.
Press [ENTER/YES] once again when you want to stop
playback.
If you want to erase all of the Loop Phrases in a specific
bank, move the cursor to the Loop Phrase number field,
and then turn the TIME/VALUE dial clockwise to
display “ALL.”
4.
Press [F4] (GO).
The message “Sure?” will appear.
5.
Press [ENTER/YES].
The Loop Phrase(s) will now be erased, and when the
message “Complete!” appears, it indicates that this
operation has been completed.
It will not be possible to restore data erased in this
way; accordingly, care should be taken to ensure
that important Loop Phrases are not accidentally
erased.
