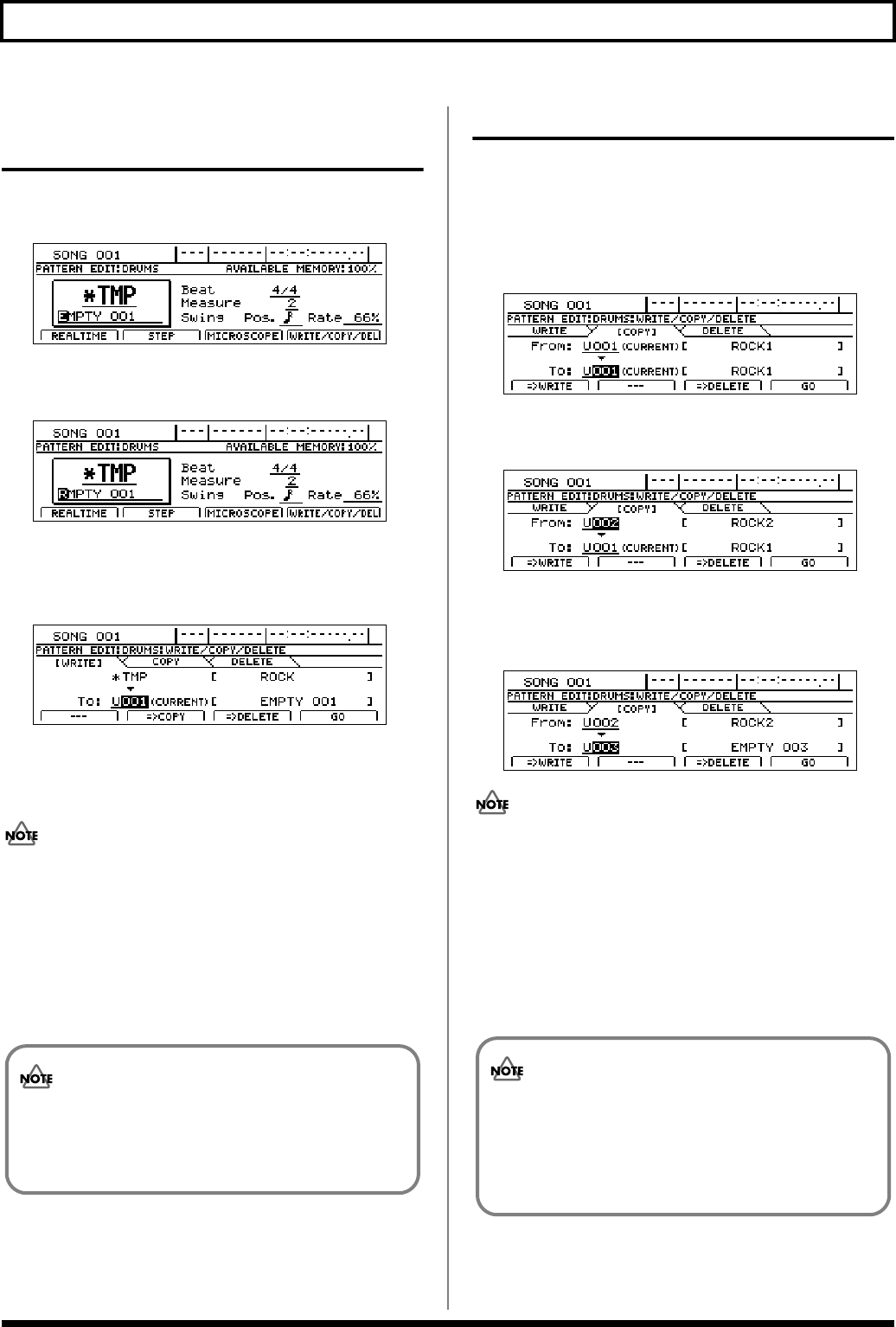

Creating drum patterns
Changing a drum pattern’s
name
1.
Move the cursor to the pattern name as displayed on
the Drum Pattern Edit screen.
fig.20-032ad
2.
Use [CURSOR] and the TIME/VALUE dial to change
the name character by character.
fig.20-32bd
3.
Press [F4] (WRITE/COPY/DEL) to store this new name.
The Write/Copy/Delete screen for drum patterns will
appear.
fig.20-124d
4.
Move the cursor to “TO:” and use the TIME/VALUE
dial to select the drum pattern to which the data is to be
saved.
Only user drum patterns and song drum patterns may
be selected for saving drum pattern data. You will not be
able to select a preset drum pattern at this time.
5.
Press [F4] (GO).
The new name will be saved together with the drum
pattern. When the message “Complete!” appears, it
indicates that saving has been completed.
Copying drum patterns
1.
Press [F4] (WRITE/COPY/DEL) on the Drum Pattern
Edit screen.
2.
Press [F2] (=>COPY).
The Write/Copy/Delete screen for drum patterns will
appear.
fig.20-224d
3.
Move the cursor to the “FROM:” field and select the
drum pattern to be copied using the TIME/VALUE dial.
fig.20-032cd
4.
Move the cursor to “TO:” and use the TIME/VALUE
dial to select the drum pattern to which the data is to be
copied.
fig.20-032dd
Only user drum patterns and song drum patterns may
be selected as destinations for copying. In other words,
you will not be able to select a preset drum pattern at
this time.
5.
Press [F4] (GO).
Copying of the drum pattern will begin. When the
message “Complete!” appears, it indicates that copying
has been completed.
If you select a different drum pattern or load a new
song without saving the current pattern, the new
name will be lost. This name will also be lost if you
turn off the BR-1600CD before saving.
The drum pattern selected as the copy destination
will be overwritten in this process. As it will not be
possible to restore the corresponding data, care
should be taken to ensure that important patterns
are not accidentally overwritten in this way.
