APPENDIX A: INSTALLATION REFERENCE
Identifying switch settings on wireless
receivers
Your rear speakers connect to wireless receivers to communicate with the console. The
receivers come preset to a left and right channel out of the box. You can use the switch
on the front of the receiver to adjust the channel settings.

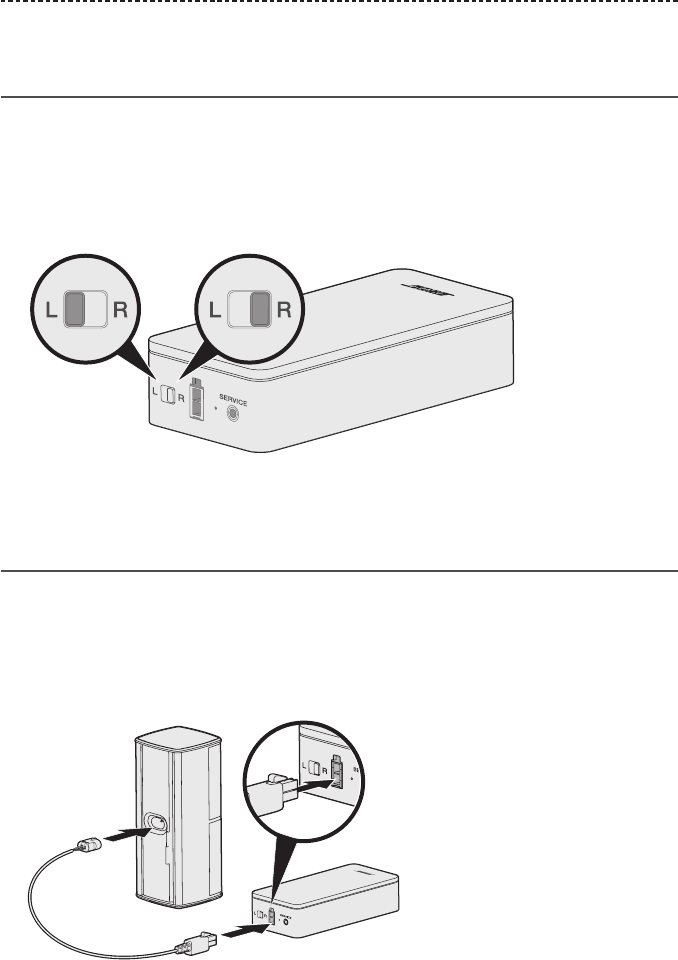

1. Confirm that the switch on one wireless receiver is set to L (left).
2. Confirm that the switch on the other wireless receiver is set to R (right).
Note: Make sure that one wireless receiver is always set to L (left) and the other is set
to R (right).
Connecting the rear speakers
1. Connect the AC-2 adapters to the bare ends of the speaker wire. See “Connecting an
AC-2 adapter” on page 35.
2. Insert the adapter into the back of your speaker.
3. Insert the other end of the two-pin cable into your wireless receiver.
You hear or feel a click.
4. Repeat steps 1 – 3 to connect your other speaker.
