Getting Started
You can enjoy the connected component using the six speakers of the system.
• Portable audio source: A
• DIGITAL MEDIA PORT adapter: B
DAV-HDX276
3 Connecting the other components
CENTER SUBWOOFER
DIGITAL IN
P
B
/C
B
P
R
/C
R
AUDIO INYRL
COAXIAL OPTICAL
FRONT R FRONT L SUR R SUR L
SPEAKER
COMPONENT VIDEO OUT
TV/VIDEO
TV/VIDEO
SPEAKER
COAXIAL 75
AM
FM
DMPORT
ANTENNA
HDMI OUT
VIDEO
OUT
DC5V
0.7A MAX
DMPORT
DC5V
0.7A MAX

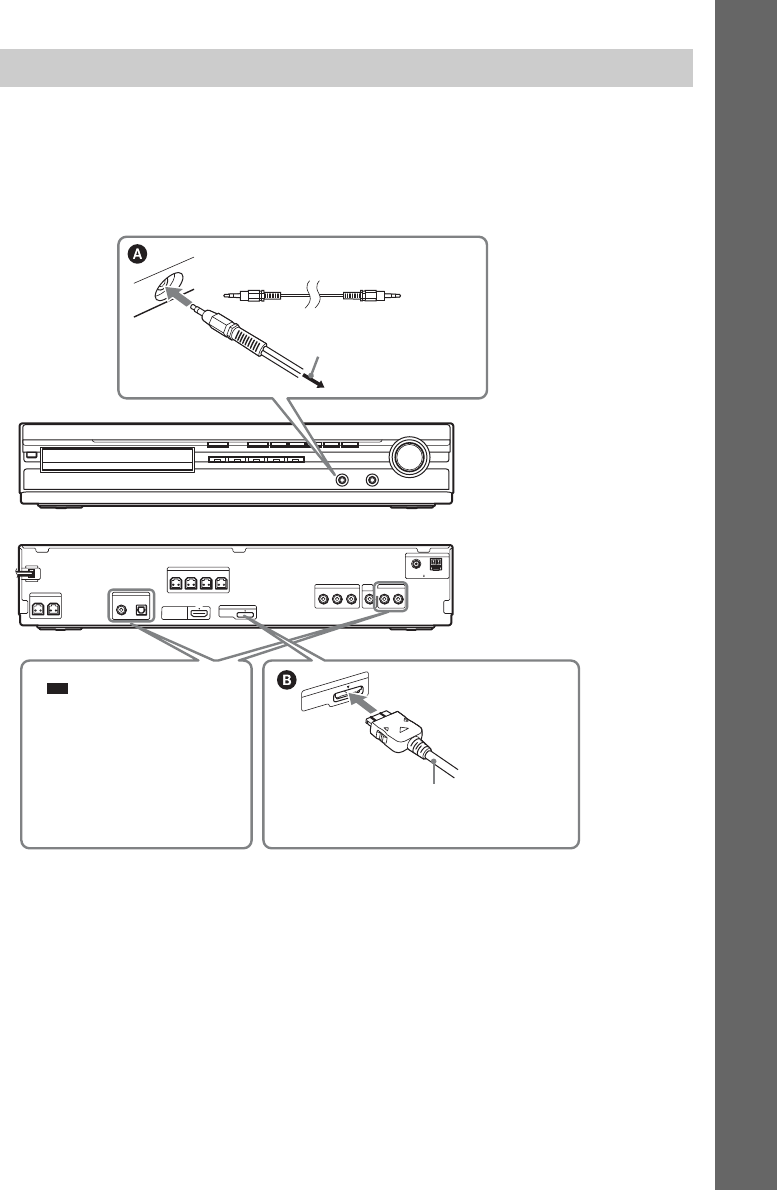

Rear panel
Front panel
DIGITAL MEDIA PORT adapter
To the portable audio source
Stereo mini-plug cord
(not supplied)
Ti
p
• You can connect another
component, such as VCR,
instead of the TV. For
connection details, see page
26.
