24
GB
Getting Started
The connector and color tube of the speaker cords are the same color as the label of the jacks to be
connected. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker
cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the
speaker cord insulation in the speaker terminals.
When connecting to the unit, insert the connector until it clicks.
DAV-HDX276

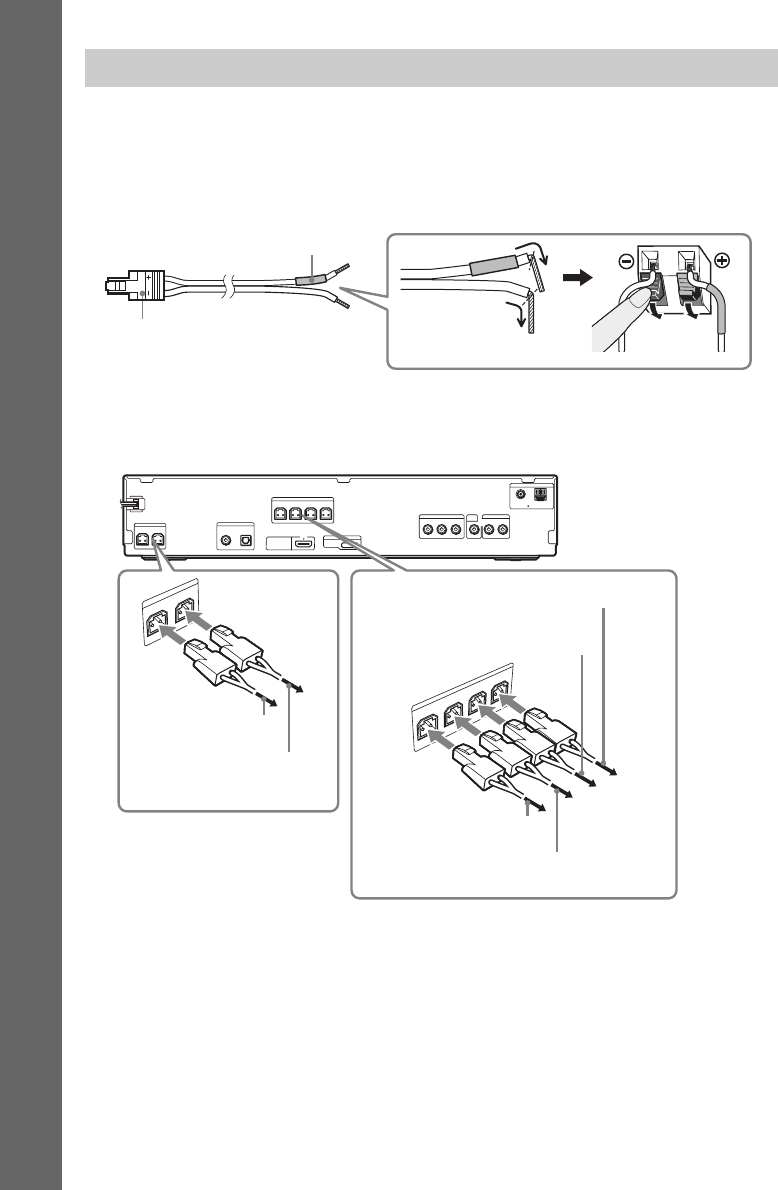

1 Connecting the Speakers
Color tube
(–)
(+)
Connector
Rear of speaker
CENTER SUBWOOFER
DIGITAL IN
P
B
/C
B
P
R
/C
R
AUDIO INYRL
COAXIAL OPTICAL
FRONT R FRONT L SUR R SUR L
SPEAKER
COMPONENT VIDEO OUT
TV/VIDEO
TV/VIDEO
SPEAKER
COAXIAL 75
AM
FM
DMPORT
ANTENNA
HDMI OUT
VIDEO
OUT
DC5V
0.7A MAX
SPEAKER
FRONT L
S
U
R
R
S
U
R
L
FRONT R
SPEAKER
SUBWOOFER
CENTER
Rear panel
To the center speaker
(green)
To the subwoofer
(purple)
To the front speaker (R)
(red)
To the front speaker (L) (white)
To the surround speaker (L)
(blue)
To the surround speaker (R)
(gray)
