Plus 6.5 Software User Guide Supplement
48 Chapter 6: Designing with Modeler Plus software

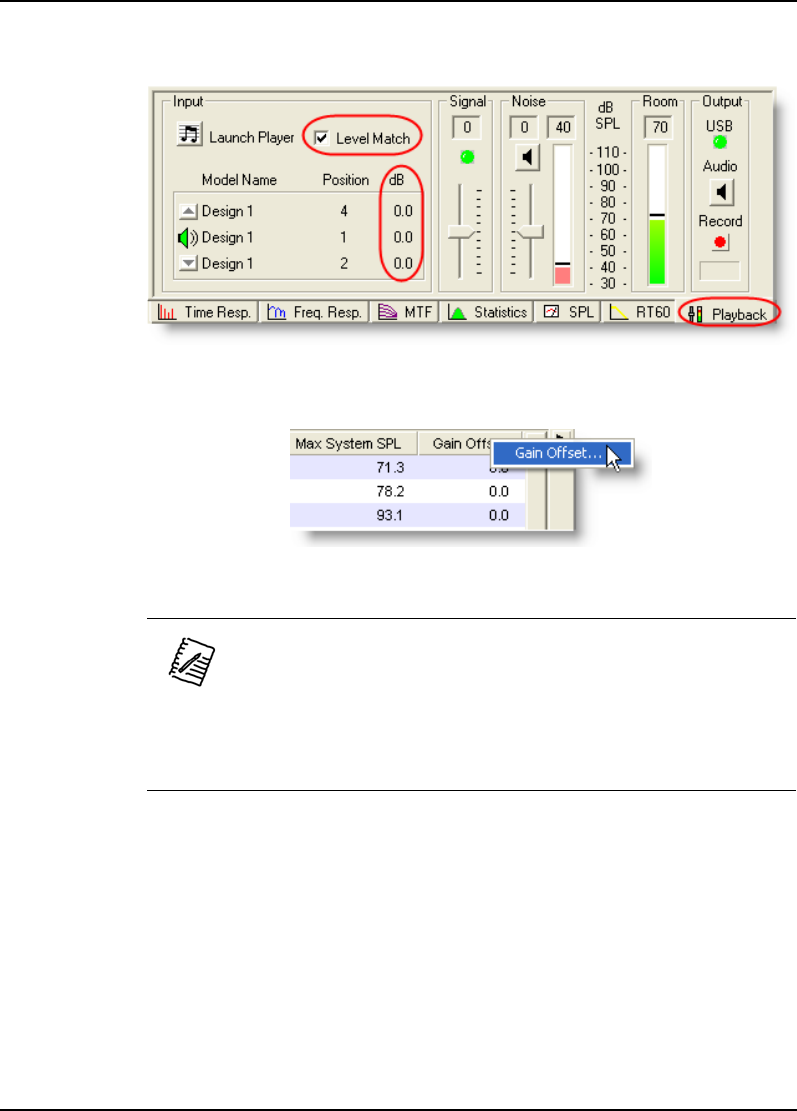

Figure 6.6 - Level Match option
Figure 6.7 - Right-click to set Gain Offset
Note: When filters are played back at predicted absolute levels
(Level Match unchecked), you maintain the relative levels
between filters.
When filters are played back in level match mode, filters are
scaled to be played back at the same RMS level. You may still
have to tweak them (using gain offsets) to achieve a closer
level match.
