Chapter 5: The Playback tab 37
Chapter 5: The Playback tab

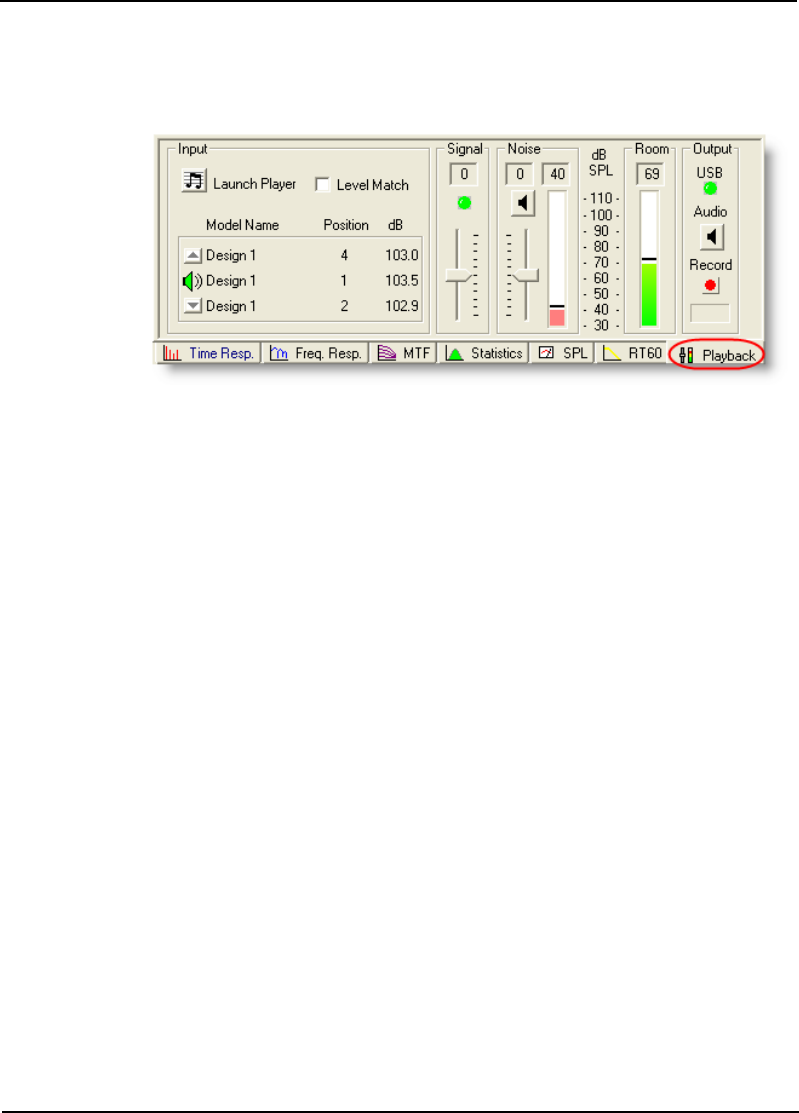

Figure 5.1 - Playback tab
The Playback tab allows you to control the playback of the
listeners that are loaded into the playback queue. The panel layout
is partitioned into five blocks: Input, Signal, Noise, Room, and
Output.
Input block
Playback queue
The playback queue is displayed in the lower left of the Playback
tab. It contains three columns. The first two are the model name
and the position label for each listener. The third column is typically
the maximum system SPL. However, when level match is selected,
this column instead displays the gain offset. For more information,
see Chapter 6: Using Level Match, on page 47.
Of the Auditioner
®
enabled listeners that have been loaded into the
queue, three appear in the list: The current listener, the previous
listener, and the next listener. The playback queue is a continuous
loop regardless of how many listeners are loaded. When you reach
the end of the queue, the first listener will be the next one to load.
