Chapter 4: The Playlist tab 31
Listener state
The model name and listener position label for each playlist item
are displayed in the next two columns. Listeners appear in light
gray if the surfaces they are on have been unchecked in the
Simulation tab. Listeners appear in italics if their data has not been
recalculated since a change has been made to the model.

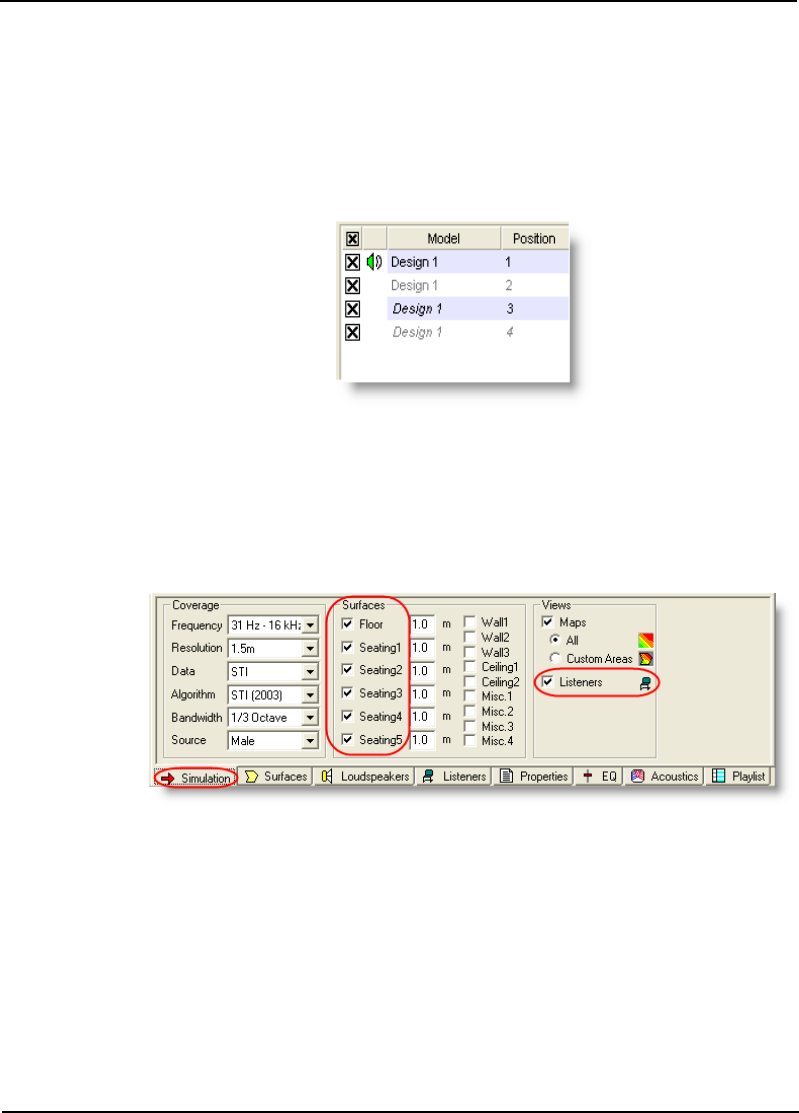

Figure 4.4 - Listeners state is represented by font
To make sure that the Listener data gets calculated when the
engine is turned on, the Listeners box must be checked on the
Simulation tab, and the Surface types that contain those Listeners
have also been checked.
Figure 4.5 - Make sure that Surfaces and Listeners are checked
Listener attributes
The following column holds the Max System SPL, which is the
highest level the installed sound system can produce at the
listening location. This value is predicted by the application, and
cannot be modified by the user.
The Gain Offset column contains a value used by the level match
feature described on Chapter 6: Using Level Match, on page 47.
