1.0 Introduction
The Conettix D6682 Ethernet Network Adapter is a
two-channel network adapter. Most networked
installations only have one configured channel.
Follow these instructions to avoid the
possibility of harm to the operator, or
damage to the equipment.
1.1 Network Interface

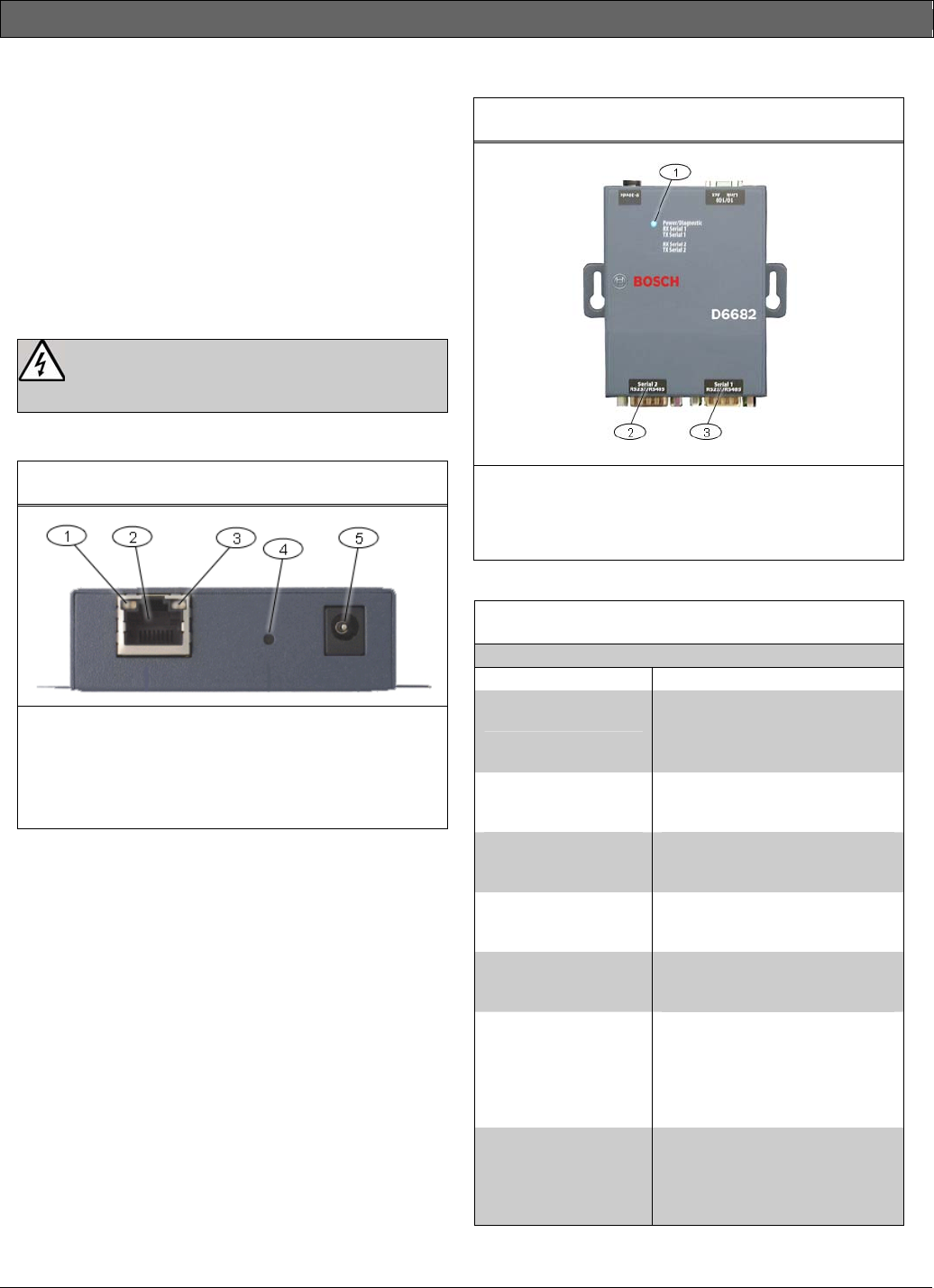

Figure 1: Power/Ethernet
1- Ethernet Link LED
2- RJ45 Ethernet Jack
3- Ethernet Activity LED
4- Reset Pin
5- Power Plug
1.2 Serial Interface
Figure 2: D6682 Network Interface
1- Power/Diagnostic LEDs
2- Serial Port 2 (DTE) – optional (use supplied
cable if required)
3- Serial Port 1 (DTE) – use supplied null cable
1.3 LEDs
Table 1: D6682 LEDs
LED Description
Power/Diagnostic
(Blue)
Steady On: Power OK
Blinking 2x: No DHCP
response
Blinking 2x: Setup Menu active
RX Serial 1 Activity
(Green)
Off: No data activity
Blinking: Data received by
D6682 on Channel 1
TX Serial 1 Activity
(Yellow)
Off: No data activity
Blinking: Data transmitted from
D6682 on Channel 1
RX Serial 2 Activity
(Green)
Off: No data activity
Blinking: Data received by
D6682 on Channel 2
TX Serial 2 Activity
(Yellow)
Off: No data activity
Blinking: Data transmitted from
D6682 on Channel 2
Ethernet Link
(Bi-color LED on left)
Off: No Ethernet link
established
Solid Yellow: 10 Mbps
Ethernet link established
Solid Green: 100 Mbps
Ethernet link established
Ethernet Activity
(Bi-color LED on
right)
Off: No data activity
Solid Yellow: Half Duplex data
activity
Solid Green: Full Duplex data
activity
