User's Manual Part 2

Mechanical installation of Contribution Devices
DICENTIS devices
The DICENTIS devices (DCNM-D, DCNM-DVT, DCNM-DSL, DCNM-DE, DCNM-MMD, DCNM-
MMD2) are used to:
– participate in a meeting or conference.
– monitor and control a meeting or conference (chairperson use, depending on the
configuration).
DCNM-MMD / DCNM-MMD2
1
4
5
78
6
9
10
3
2

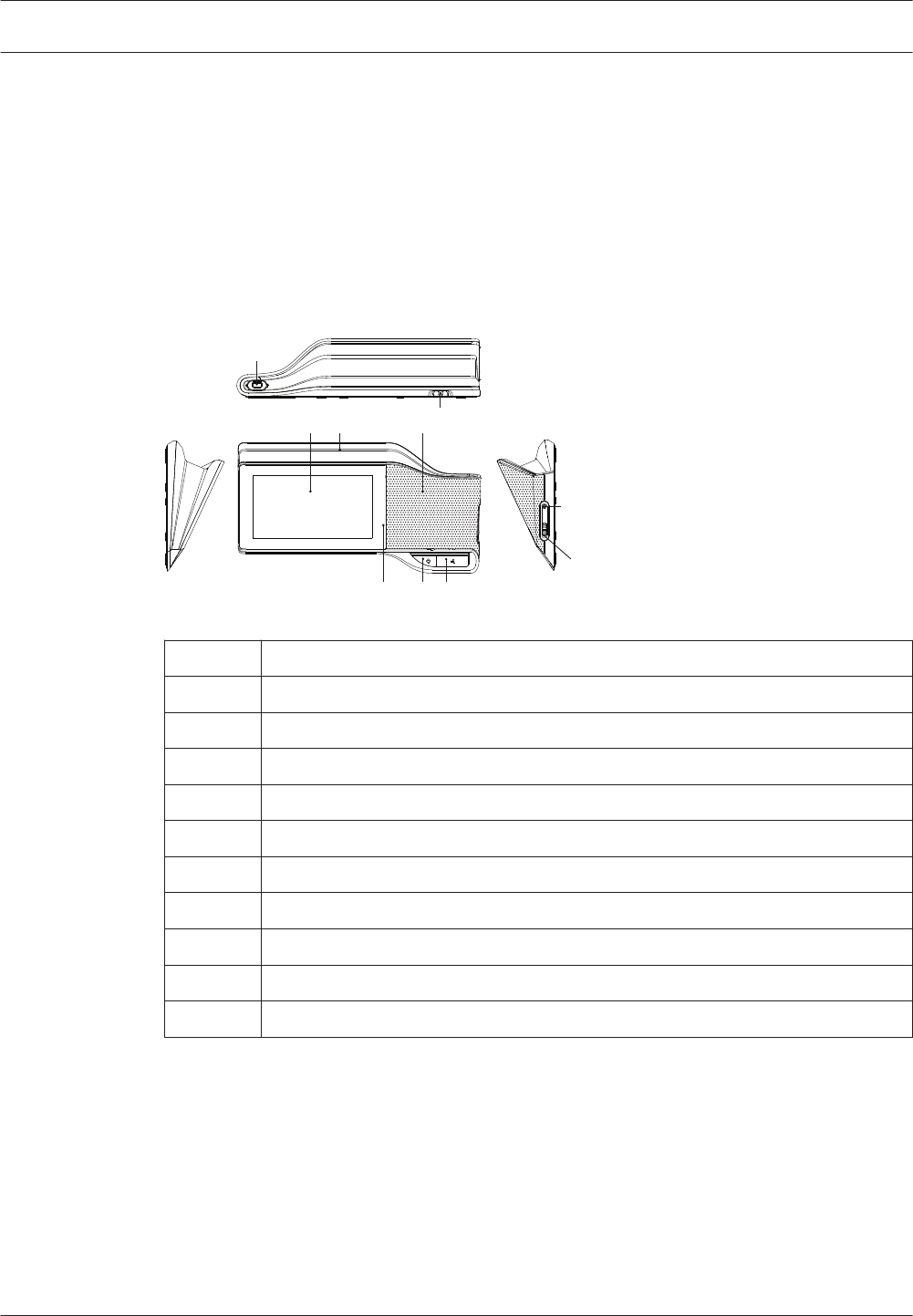

Figure 7.1: Front, top, rear and side views
Item
Description
1 7” capacitive touch screen.
2 LED strip.
3 Two‑way loudspeaker.
4 3.5 mm stereo jack for headphone or headset with integrated microphone.
5 Headphone volume control.
6 Microphone request button.
7 Chairperson priority or microphone mute button.
8 Near Field Communication (NFC) reader (DCNM-MMD2 only).
9 Cable guides.
10 Microphone input connector.
