How to connect or remove the microphone
The microphone can be easily connected to the DICENTIS devices:
9
6
4
857

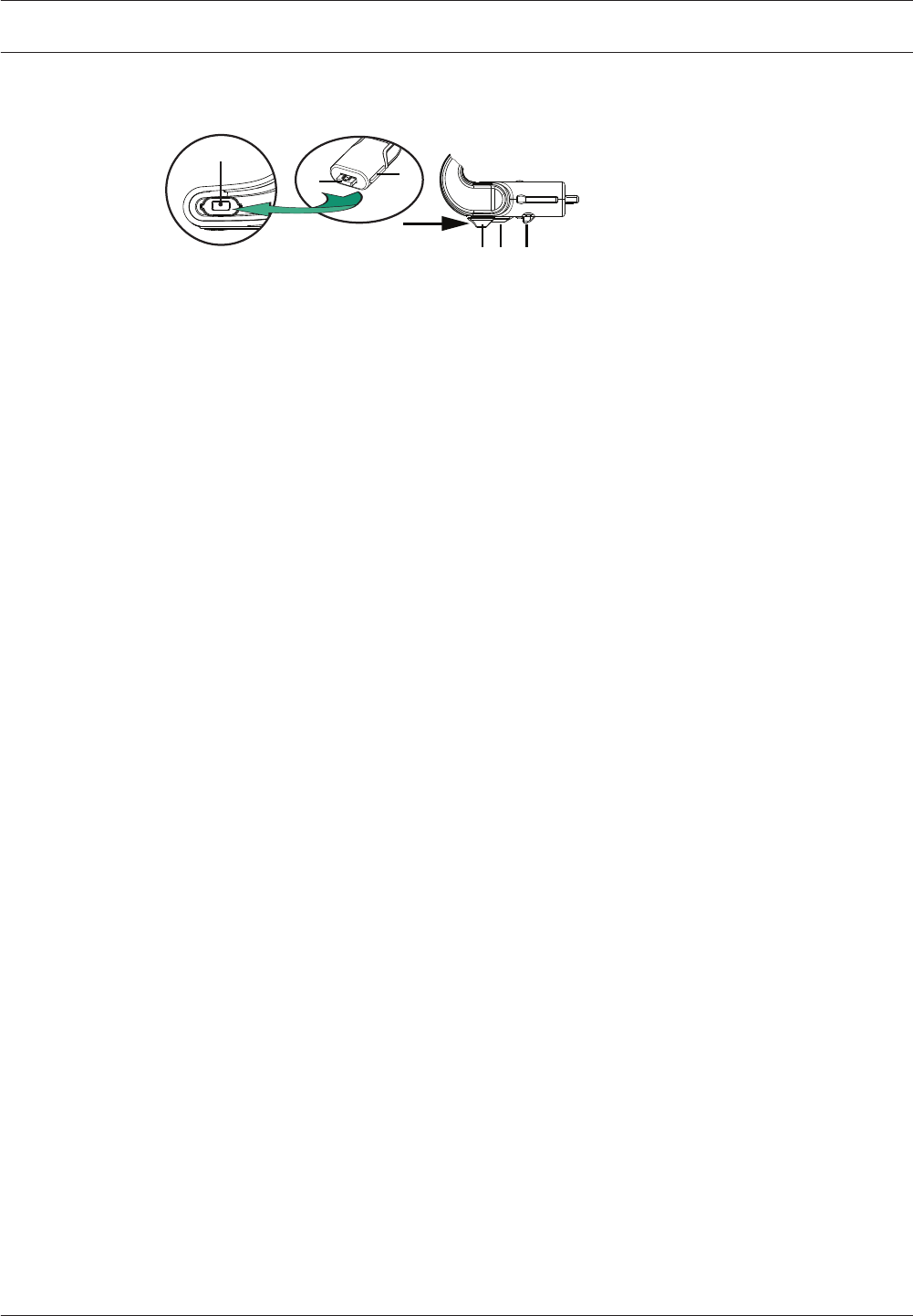

Figure 7.6: DCNM‑HDMIC or DCNM-MICS / DCNM-MICL connection
To do so:
1. Gently guide the connection guidance (4) into the DICENTIS device microphone
connector (9).
2. Gently push the connector plug (6) into the device microphone connector (9) until the
connection lock (5) fits/click into place.
3. To remove the microphone from the device: Shift lockslider (7) towards the device and
hold in place lock release (8) and pull out the microphone.
