DICENTIS Microphones
Both the DCNM‑HDMIC High Directive Microphone and DCNM-MICL/S Stem Microphone are
typically used with the DICENTIS devices.
3
6
4
7
1
2
5
8
2
6
4
7
1
2
5
8

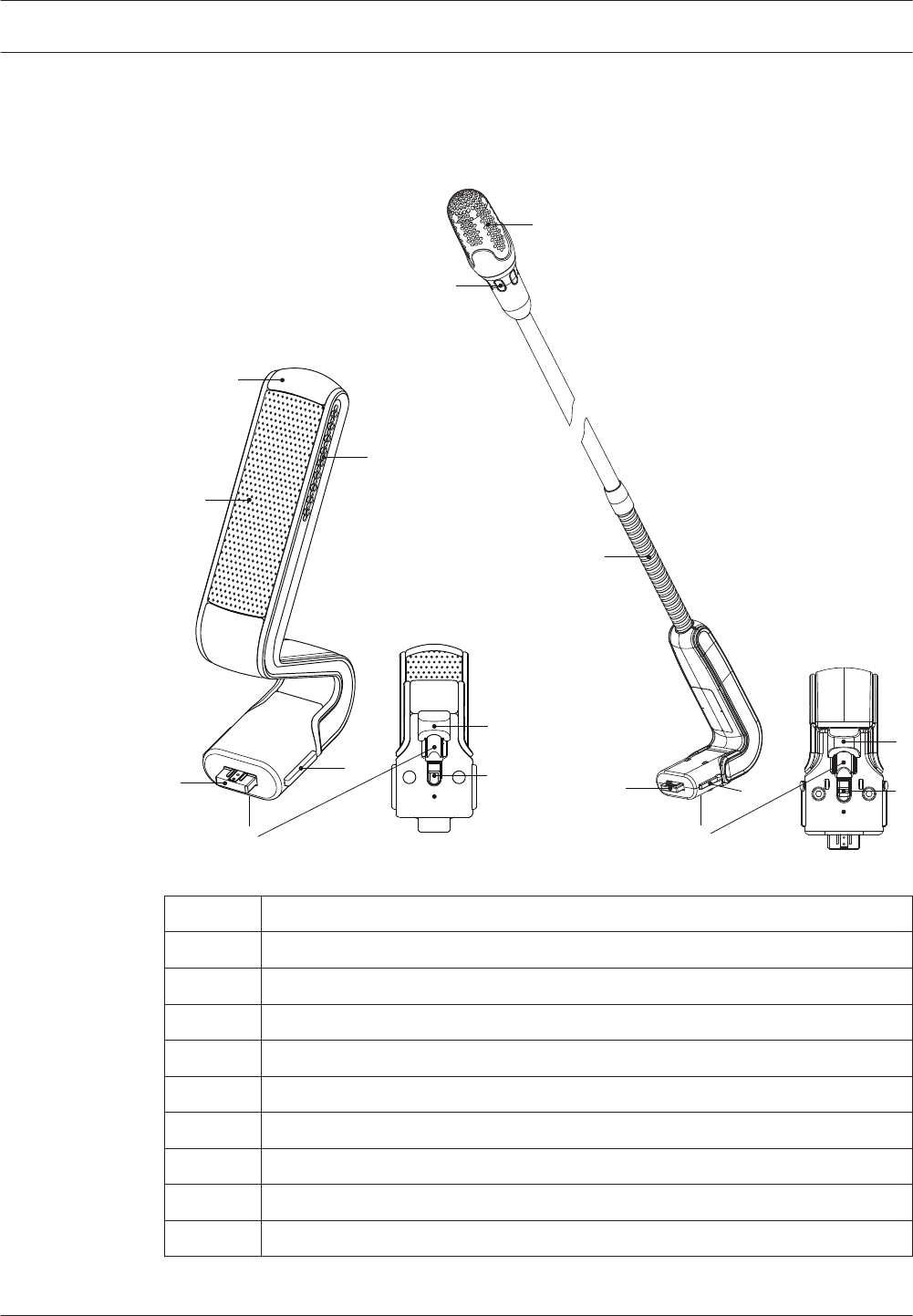

Figure 7.5: DCNM‑HDMIC and DCNM‑MICS / DCNM‑MICL front and bottom view
Number
Description
1 LED indicator.
2 Microphone grill.
3 Adjustable stem (DCNM‑MICS / DCNM‑MICL).
4 Connection guidance.
5 Slider guidance.
6 Connector plug.
7 Lock-slider for lock release (Press and shift to release).
8 Lock.
9 Device female connector (see following figure).
7.2
