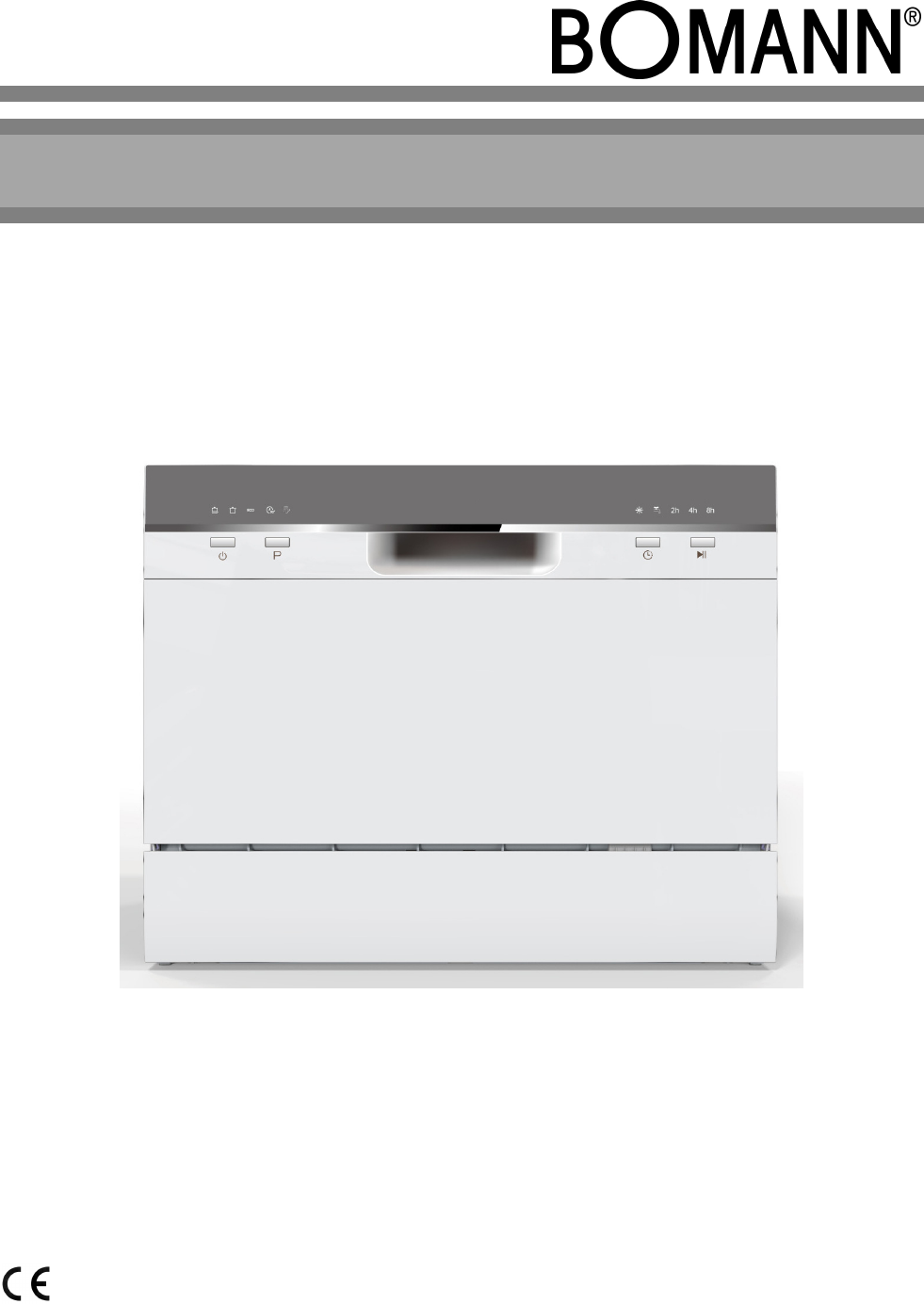

HOUSEHOLD- TABLE DISHWASHER TSG 708 Instruction Manual
Contents Introduction.................................................................................................................................................Page 3 General Notes…………………………………………………………………...………….…………….….…….Page 3 Special safety Information for this Unit……………………………………………..………………..…………..Page 4 Unpacking the Appliance………………...………………….………………………………………....…..…..…Page 5 Overview of the Appliance……………….……………………………………………….………….….………..Page 5 Installation…………………………………………………………………………………………………..
Introduction Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine: WARNING: This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects.
Special safety Information for this Unit • The maximum number of place settings to be washed is 6. • This unit is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - in farm houses. • The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Unpacking the Appliance 1. Remove the appliance from its packaging. 2. Remove all packaging material, such as foils, filler and cardboard packaging. 3. To prevent hazards, check the appliance for any transport damage. 4.
CAUTION: CAUTION: For a correct operation the appliance must be connected properly. The specifications for water supply and drain as well as the electrical connection must fulfill the required criteria. Installation location • The site should be located near water inlet and outlet, as well as near a properly grounded power socket. • Take care of a solid and horizontal position of the appliance. • Power cable and water hoses may not kinked or squashed.
Connect the water drain hose NOTE: NOTE: The drain hose has a length of approx. 1.5 m and can extend with a suitable hose and connecting piece to a length of max. 4 m. CAUTION: CAUTION: In order to prevent backflow of contaminated water, the free end of the hose must not come under the water level of the drain. • Connect the drain hose to a drain pipe with a minimum diameter of 40 mm; alternatively the drain hose can be fixed directly to the sink. • Always make sure that the hose is not bent or squeezed.
WARNING: Keep rinse aid and detergent out of reach for children. A. Fill the rinse aid dispenser Function of rinse aid The rinse aid is automatically added during the final rinse, ensuring thorough rinsing and a spot and streak free drying. When to refill refill the rinse aid dispenser As long as the rinse aid warning lamp does not light up on the control panel, you can estimate the amount of remaining rinse aid to the optical level indicator "D" next to the dispenser.
B. Fill in detergent NOTE: NOTE: The appliance is only suitable for the use of multi-functional tablets with an additional water softener (salt substitute), as it is not equipped with a water softener. Function of detergent Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. The most commercially, high-quality cleaning agents are suitable for this purpose.
..are ..are limited suitable: suitable: ..are ..are not suitable: suitable: - Older cutlery with glued parts that are not tem- - frequently perature resistant - Bonded cutlery items or dishes - Pewter or cooper items - Crystal glass - Steel items subject to rusting - Wooden platters - Items made from synthetic fibres Glazed patterns may fade if machine washed Recommendations for loading • Make sure that the tableware is placed securely and cannot tip over.
1 Forks 5 Knives 2 Soup spoons 6 Serving spoons 3 Dessert spoons 7 Gravy ladies 4 Teaspoons 8 Serving forks Starting a Rinse Program Rinse cycle table Select a suitable program depending on dishes and degree of soiling. Program Pro Program selection Program sequence information Detergent Time Energy Energy Water Water Rinse tablet (Min.) (kWh) (L) aid 1 piece 140 1.9 10 1 piece 120 0.7 8 1 piece 180 0.61 6.5 1 piece 90 0.65 7 15 0.01 2.
Control panel 1. Power button to switch on or off the power supply. 2. Program selection button to select one of six rinse programs. By repeatedly pressing this button, you can select the rinse program. 3. The corresponding program control lamp indicates the selection of the rinse program. 4. By repeatedly pressing this button, you can select a start delay time of 2, 4, 6 or 8 hours.
Forgot to add a dish? WARNING: Open the door very carefully during operation, there is a risk of water squirting out. Dishware can be added any time before the detergent dispenser opens. • Press the start/pause button. • Add forgotten dishware. • Open the door carefully a little. • Close the door. • Once the spray arm stopped working, you can • Press the start/pause button, after approx. open the door completely. 10 seconds the operation will be continued.
CAUTION: CAUTION: • Do not use a wire brush or other sharp, abrasive items. • Do not use any acidic or abrasive detergents. NOTE: NOTE: Dirty filters and clogged spray arms degrade the rinsing. Regularly check the filter and spray arm and clean them if necessary. Filter system The three-part filter system prevents larger amounts of food or other objects from getting inside the pump. A.
• Pull off the spray arm upwards. • Clean the spray arm under running water; if necessary use a soft brush for the nozzles. • Insert the spray arm again until it clicks into place. Maintenance of the dishwasher CAUTION: CAUTION: Never use spray cleaners to clean the door panel, this may damage the door lock and electrical components. • Clean the appliance outer surfaces thoroughly with a soft, damp cloth. Use only mild cleaning agent.
Problem Possible causes Water is not drained off Kink in drain hose What do to Check the drain hose. Filter clogged Check the filter system. Kitchen sink clogged Check kitchen sink to make sure it is draining well. If the kitchen sink is clogged, you may need a specialist. Noise Some audible sounds are E.g. sound form detergent dispenser opening. normal Dishware is not secured Take care that the dishware is secured in the dishwasher.
Problem Possible causes What do to Detergent left in dis- Dishes blocks the dispenser Reload the dishes. penser Steam Normal There is some steam coming through the vent by the door latch during drying and water draining. Black or grey marks on Aluminum utensils have dishware rubbed against dishware Water standing on the Normal A small amount of clean water around the outlet on the tub bottom of the tub Dishwasher leaks Use a mild abrasive cleaner to eliminate those marks.
Product data sheet for household dishwasher according ccording to regulation (EU) No. 1059/2010 1059/2010 Brand Bomann Model TSG 708 Standard place settings 6 Energy efficiency class1) A+ Annual energy consumption2) kWh 174 kWh 0.61 Power consumption of the off mode W 0.45 Power consumption of the left-on mode W 0.
Disposal Meaning of the “Dustbin” Symbol Protect our environment; do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.
