Technical Specifications
Accessories

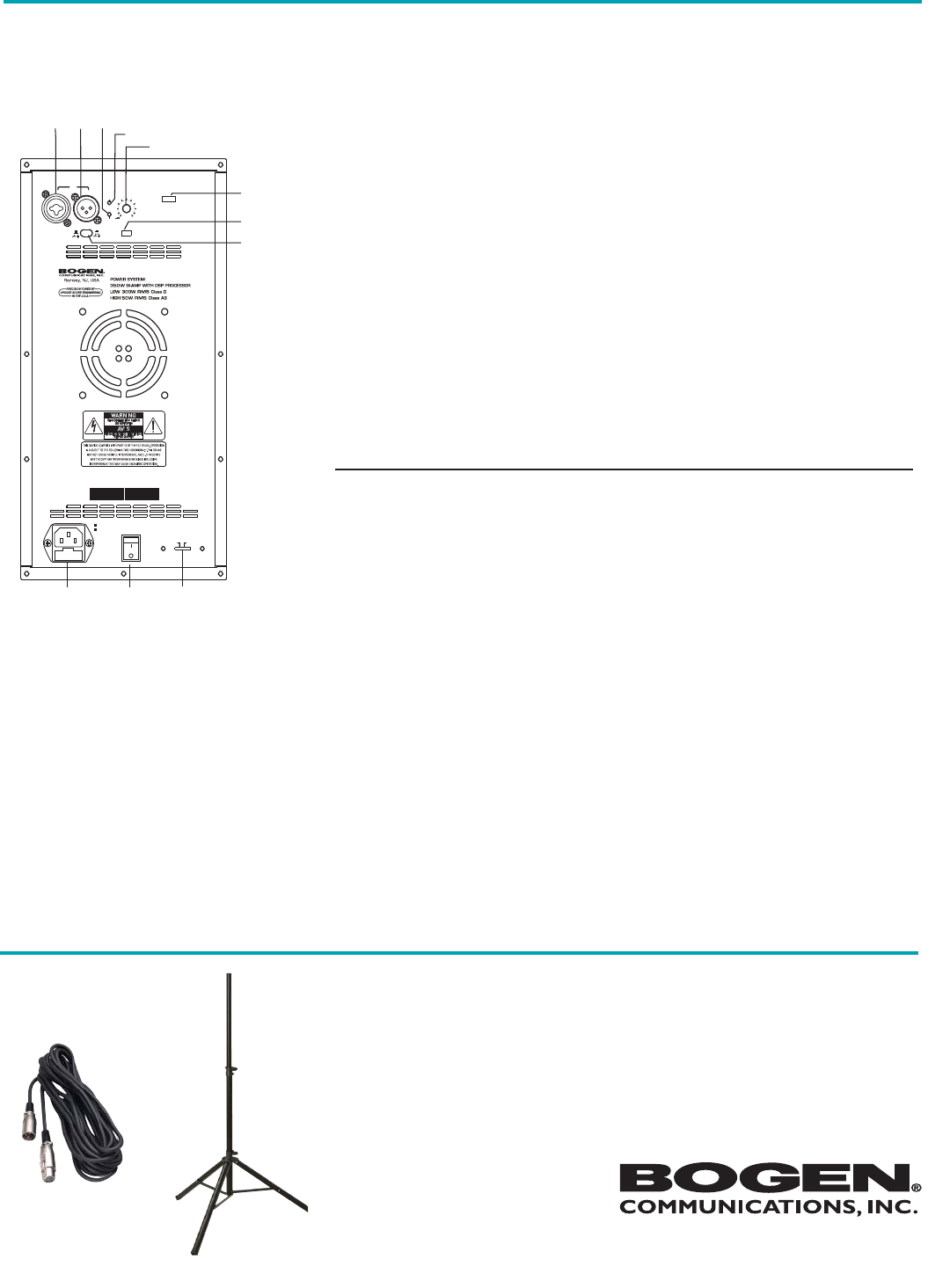

Bogen Pro Rear Panel
XLR25
Microphone
Cable
ATS70GB
Tripod Speaker
Stand
BP15DSP Loudspeaker
System Type ......................................2-Way Powered Speaker
Transducer Low ................................15" Neodymium Woofer, 2.5" Voice Coil
Transducer High................................1" Compression Driver, 1.75" Voice Coil
Horn Coverage (H
˚
x V
˚
) ..................90˚H x 45˚V
Frequency Response ......................45 Hz to 20 kHz with FLAT Preset
Crossover Frequency ......................2.2 kHz - 12 dB/oct, DSP Processor
Max. SPL (1m)....................................124 dB Maximum
Power System....................................Bi-Amp (Low: Class D 300W High; Class AB 50W), RMS 350W
Connector ..........................................LINE/MIC Input with Combo (XLR/ 1/4”) Connector
External Controls ..............................Volume Control, LINE/MIC Switch, Low Frequency Switch,
Power Switch, Pin 1 Lift Switch
LED ....................................................Power (Green), Signal/Clip (Green/Red)
Low Frequency Presets ..................CUT - FLAT - BOOST
Electronic Protections......................Thermal / Overload / Digital Limiter / Compressor
Power Supply ....................................110-120V~50/60 Hz or 220-240V~50/60 Hz Switchable (550W)
Enclosure Construction ..................Polyethylene Cabinet, Trapezoidal & Monitor Shape, Metal Grille,
Rubber Feet, 2 Handles (on sides)
Mounting ............................................36mm standard pole-mount, M10 6PCS Flying Points
Dimensions (H x W x D) ..................26-1/8" x 15-1/2" x 15-7/8" (664mm x 396mm x 402mm)
Net Weight..........................................40.5 lbs. (18.4kg)
BP12DSP Loudspeaker
System Type ......................................2-Way Powered Speaker
Transducer Low ................................12" Neodymium Woofer, 2.5" Voice Call
Transducer High................................1" Compression Driver, 1.75" Voice Call
Horn Coverage (H
˚
x V
˚
) ..................90˚H x 45˚ V
Frequency Response ......................50 Hz to 20 kHz with FLAT Preset
Crossover Frequency ......................2.4 kHz - 12 dB/oct, DSP Processor
Max. SPL (1m)....................................123 dB Maximum
Power System....................................Bi-Amp (Low: Class D 300W High; Class AB 50W), RMS 350W
Connector ..........................................LINE/MIC Input with Combo (XLR/ 1/4”) Connector
External Controls ..............................Volume Control, LINE/MIC Switch, Low Frequency Switch,
Power Switch, Pin 1 Lift Switch
LED ....................................................Power (Green), Signal/Clip (Green/Red)
Low Frequency Presets ..................CUT - FLAT - BOOST
Electronic Protections......................Thermal / Overload / Digital Limiter / Compressor
Power Supply ....................................110-120V~50/60 Hz or 220-240V~50/60 Hz Switchable (550W)
Enclosure Construction ..................Polyethylene Cabinet, Trapezoidal & Monitor Shape, Metal Grille,
Rubber Feet, 2 Handles (on sides)
Mounting ............................................36mm standard pole-mount, M10 6PCS Flying Points
Dimensions (H x W x D) ..................26-1/8" x 15-1/2" x 14-1/4" (664mm x 396mm x 362mm)
Net Weight..........................................38.5 lbs. (17.5kg)
PIN 1
LINK
BAL
INPUT
110-120V 220-240V
POWER
ON
OFF
AC INPUT
"WARNING"
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TORAIN OR MOISTURE.
AC FUSE
110-120V T6.3AL AC250V
220-240V T3.15AL AC250V
AC INPUT
110-120V~50/60Hz
220-240V~50/60Hz
MADE IN CHINA
MODEL
SERIAL
POWER CONSUMPTION: 550W
LINE
MIC
LOW
FREQUENCY
CUT BOOST
VOLUME
0 dB
FLAT
SIGNAL
POWER
LIMIT
Use only with a 250V fuse
BP15DSP
(1) IEC SOCKET WITH MAINS FUSE
(2) MAINS POWER SWITCH
(3) AC MAINS SELECTOR
(4) LINE/MIC INPUT ON COMBO
(XLR F/ 1/4”) CONNECTOR
(5) LINK OUT ON XLRM CONNECTOR
(6) POWER INDICATOR LED
(7) SIGNAL/CLIP INDICATOR LED
(8) MAIN VOLUME CONTROL
(9) LOW-FREQUENCY SELECTOR SWITCH:
CUT: HI-PASS FILTER
FLAT: NO EFFECT
BOOST: LOW-FREQUENCY SHELF
(10) "INPUT SENSITIVITY" SWITCH
FOR LINE OR MIC
(11) PIN 1 GROUND LIFT SWITCH
(9)
(10)
(11)
(1)
(2)
(3)
(4) (5)
(6)
(7)
(8)
