Technical Data
MATERIALS:
Cover — 18-8, Type-304 stainless steel 1.2mm thick with #4 satin-finish vertical grain. Air-inlet is vandal-resistant. Cover projects no more than
4" (100mm) from wall and is secured to mounting base with two recessed socket button head cap screws.
Mounting Base — 1.5mm SECC punched and formed.
Motor — Brushless 24Vdc with built in thermal protection. Ball bearings. Operates at 40,000 RPM.
Blower — Backward curved radial bladed impeller in polycarbonate housing.
Electronic Control — Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor.
Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately 85 seconds after dryer turns on
if an inanimate object is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and
dryer operates normally.

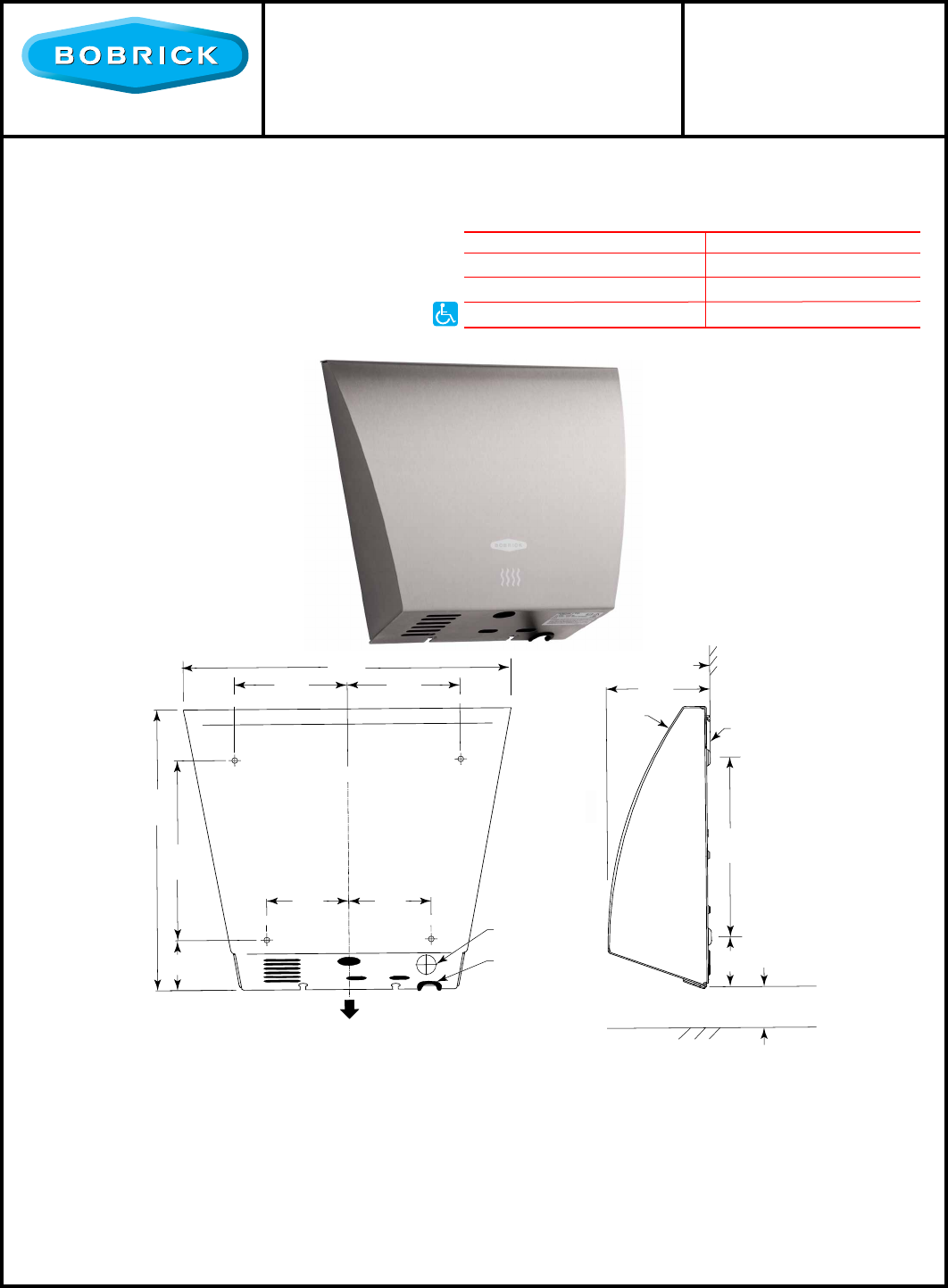

B-7125
InstaDry
TM
SURFACE-MOUNTED
AUTOMATIC HAND DRYER
See table for
recommended mounting
height off floor
4-3/8"
110mm
12-5/8"
319mm
4-3/8"
110mm
3-7/8"
98mm
10-7/8"
274mm
3-1/4"
80mm
3-1/4"
80mm
2"
49mm
C
L
C
L
S S
S S
19mm hole
for between
wall wiring
Cover
Finish Face of Wall
Mounting Base
Wire Opening
2"
49mm
7"
175mm
7"
175mm
Children's Washrooms, ages 3-4 36'' (915mm)
Children's Washrooms, ages 5-8 40'' (1015mm)
Children's Washrooms, ages 9-12 44'' (1120mm)
Universal Design 40'' - 48'' (1015 x 1219mm)
C
RECOMMENDED MOUNTING HEIGHTS
c
Bottom screw hole of mounting base to face floor
Universal Voltage:
- 110V–240V, 0.8–1.9 AMP, 50/60 Hz, 202–213 Watts, cULus Listed and CE marked.
