DRAWERS, HINGES & ASSEMBLY DEVICES
D.19
D
Drawers, Hinges & Assembly Devices

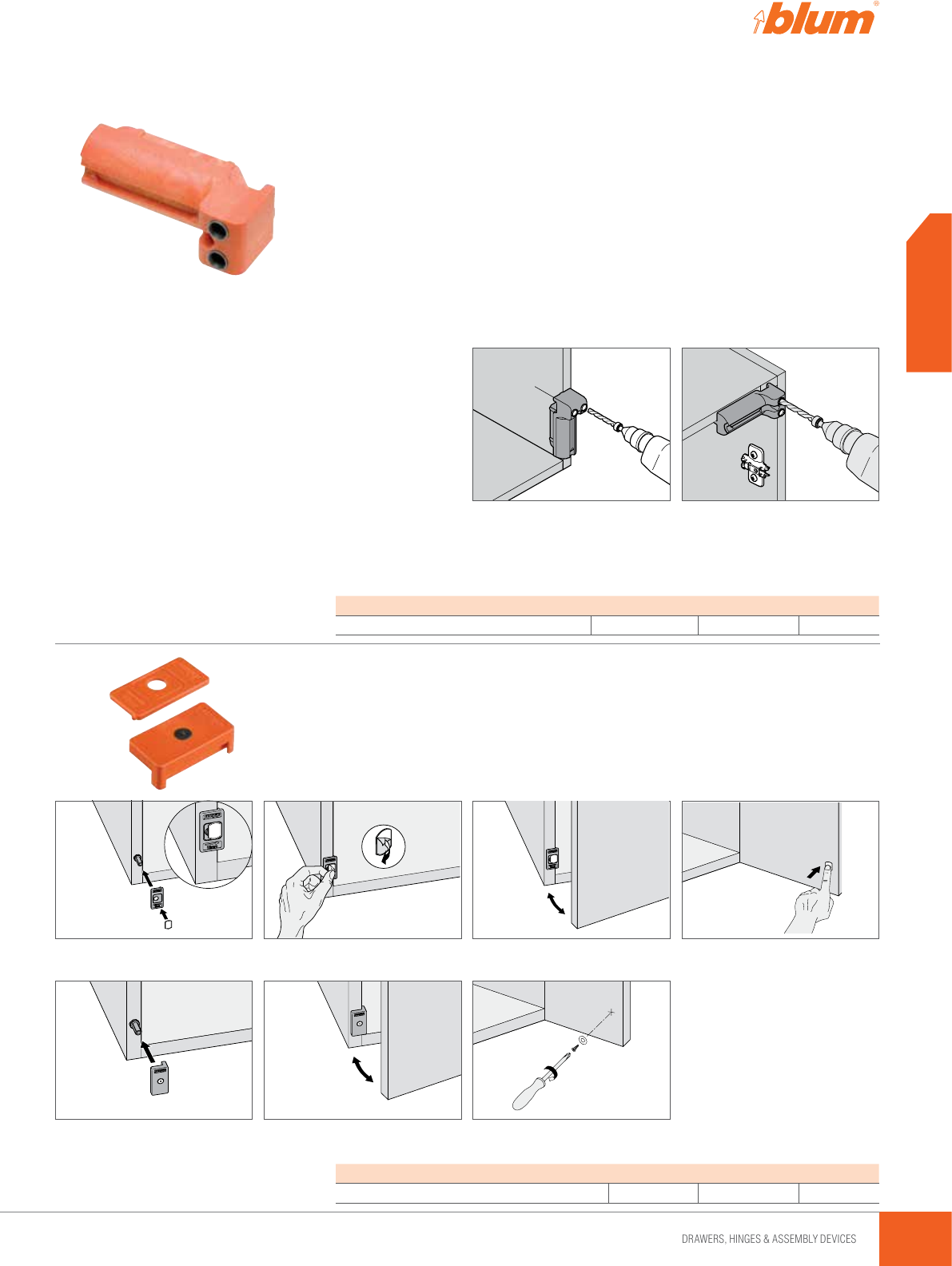

DRILLING TEMPLATE FOR BLUMOTION/TIP-ON
• Template for drilling insert BLUMOTION for doors, as well as TIP-ON for doors and AVENTOS
• Assembly on a marking line
POSITIONING TEMPLATE FOR TIP-ON CATCH PLATE
• TIP-ON catch plate (glue-on or screw-on)
• Suitable for overlay and inset applications
• Measurements transferred by marking the position or by direct adhesion
Description Material Blum No Code
Drilling Template for BLUMOTION/TIP-ON Nylon/Steel
65.5010 1-285-688
Description Material Blum No Code
Positioning Template for TIP-ON Catch Plate Nylon/Steel
65.5210 1-285-689
Place template on the TIP-ON fitting
and then insert the catch plate
Position template on the TIP-ON
fitting
Remove protective film
Gently close door
Gently close door
Attach fitting at maked location
Press on catch plate
Position template on marking line
Distance from cabinet inner side to centre
drilling 7.5 mm
Perform drilling for TIP-ON (Ø 10 mm)
TIP-ON assembly BLUMOTION assembly
Position template on marking line
Distance from cabinet inner side to centre
drilling 7.5 mm
Perform drilling for BLUMOTION (Ø 10 mm)
