User Guide

Assembly Devices
DRAWERS, HINGES & ASSEMBLY DEVICES
D.10
Drawers, Hinges & Assembly Devices
D
Dimension data and specifications may change without notification

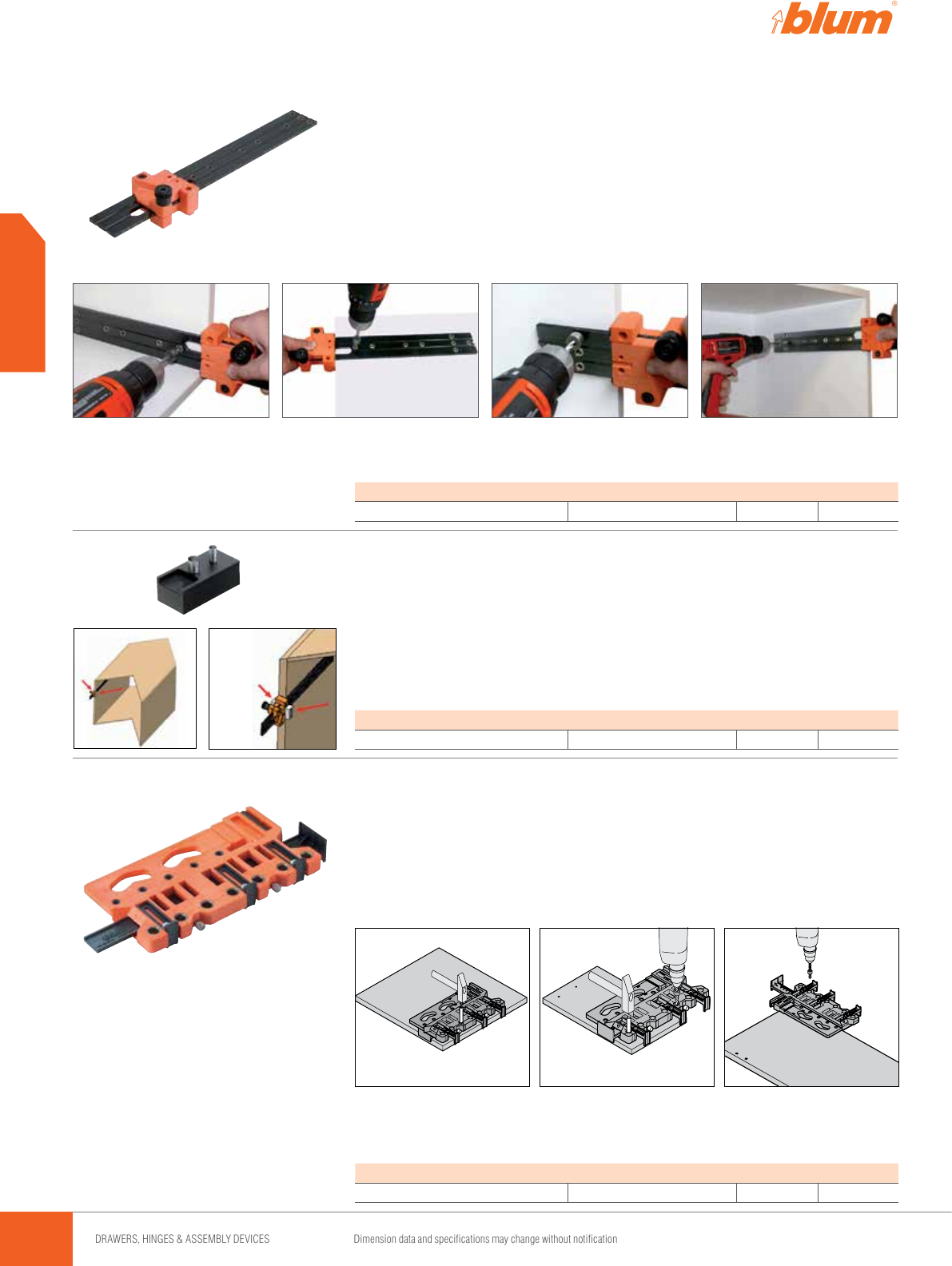

UNIVERSAL INDIVIDUAL TEMPLATE
• Template for pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting and adapter
plates
• The template can be used with assembled and unassembled cabinets
• Set depth position using the calibration
• Suitable for overlay and inset applications
• Includes drilling depth stop
• Includes 5mm (system screws) and 2.5mm (wood screws) reducing bush
• Includes Allen Key
MARKING GAUGE
• For marking or pre-drilling the fixing positions of front fixings including gallery, drawer back
• Base drilling (METABOX ONLY quick assembly version C15)
• AVENTOS front fixings
• Stop setting via the calibration
SPACE CORNER APPLICATION
• For pre drilling the fixing positions of cabinet profiles for SPACE CORNER in combination with the universal
drilling template part number 1-285-669
Pre Drilling Cabinet Profiles
(TANDEMBOX, MOVENTO, TANDEM,
METABOX, STANDARD)
AVENTOS Front assembly TANDEMBOX, MOVENTO,
TANDEM and METABOX front
assembly
METABOX Drawer back and
METABOX C-15 Base assembly
Mounting and adaptor plate
(system 32)
Cabinet Profiles (TANDEMBOX,
MOVENTO, TANDEM, METABOX,
STANDARD)
AVENTOS fixing positions
Description Material Blum No. Code
Universal Individual Template Nylon/Steel/Aluminium
65.1051.02 1-285-669
Description Material Blum No. Code
Marking Gauge Nylon/Steel
ZML.0040 1-285-693
Description Material Blum No. Code
Add on Part for SPACE CORNER Steel/ Hardened
65.1107 1-285-672
DRAWER ASSEMBLY DEVICES
