HINGE ASSEMBLY DEVICES

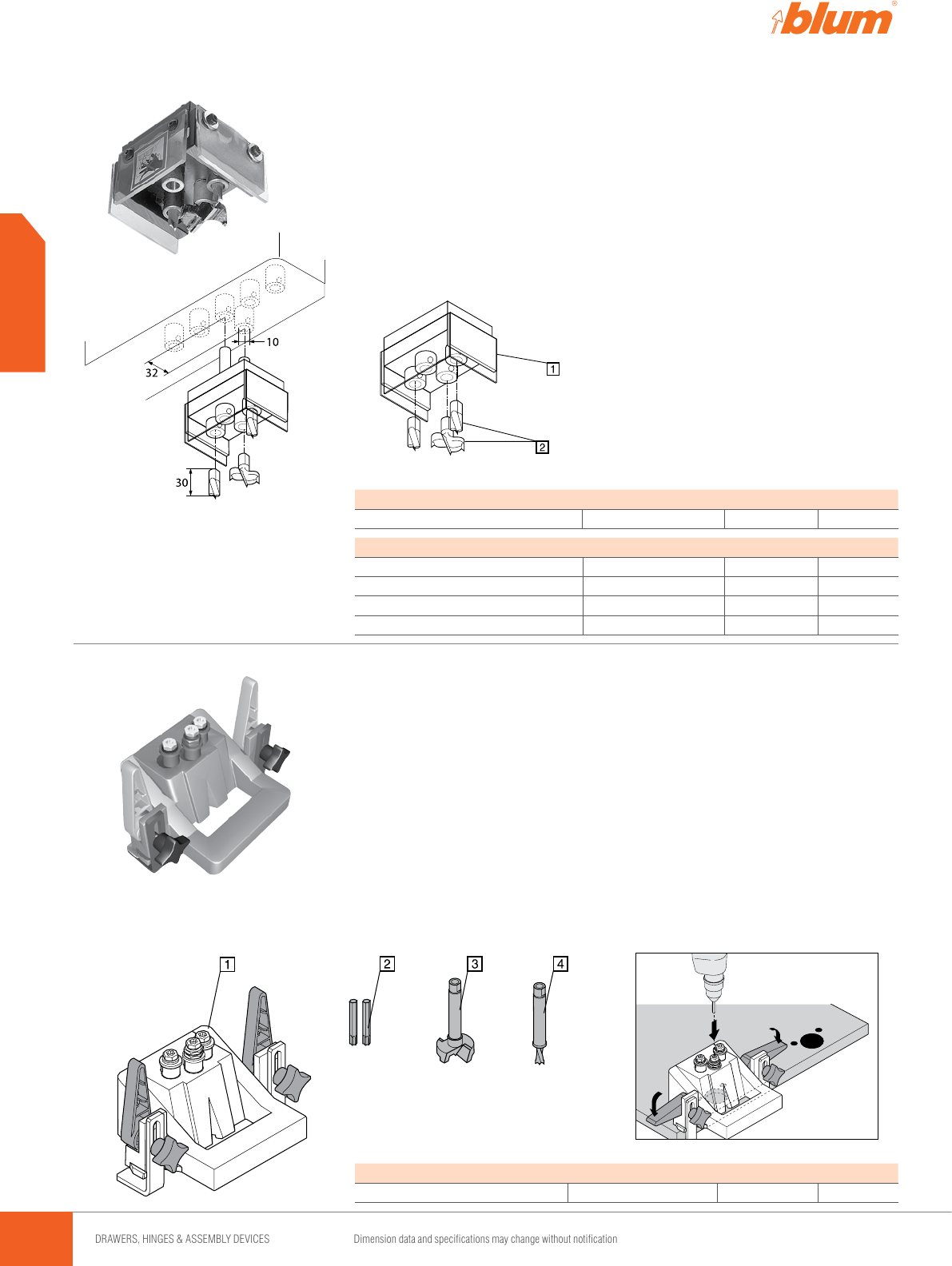

DRILLING HEAD - BLUM HINGE PATTERN

• To drill the Blum hinge pattern

• Fourth drilling spindle to drill fixing holes for horizontal mounting plates and connectors

• For all drilling and insertion machines, dowel insertion machines etc. with a minimum of two chucks (Ø10

mm, distance 32mm) positioned at a 90° angle to the ruler

• Correct drilling depth through integrated drilling depth stop

• Suits Hettich and Grass Machines

Description Material Blum No Code

1. Drilling Head - Blum Hinge Pattern Nylon/Steel/Aluminium

MZK.9900 1-343-130

Description Material Blum No Code

ECODRILL Aluminium Die Casting

M31.1000 1-343-140

Drill Bit Description Drill Bit Colour Blum No Code

2. Right Hand 8 x 30mm Black

M01.ZB08.32 1-343-135

2. Left Hand 8 x 30mm Red

M01.ZB08.33 1-343-136

2. Right Hand 35 x 30mm Black

M01.ZB35.32 1-343-137

2. Left Hand 35 x 30mm Red

M01.ZB35.33 1-343-138

ECODRILL

• Simple hand held tool to drill accurate hole patterns for Blum hinges

• Driven by hand drill

• Variable drilling distance (from 2 to 8 mm)

• Assembly on a marking line

• Includes 2 x 8mm drill bit

• Includes 1 x 35mm drill bit

• Includes 2 x torx bit

ECODRILL Comprises of:

1. Drilling Gauge 1 Piece

2. Allen Keys 2 Pieces

3. Drill Bit Ø 35mm 1 Piece

4. Drill Bit Ø 8mm 1 Piece
