User Guide

Assembly Devices
DRAWERS, HINGES & ASSEMBLY DEVICES
D.20
Drawers, Hinges & Assembly Devices
D
Dimension data and specifications may change without notification

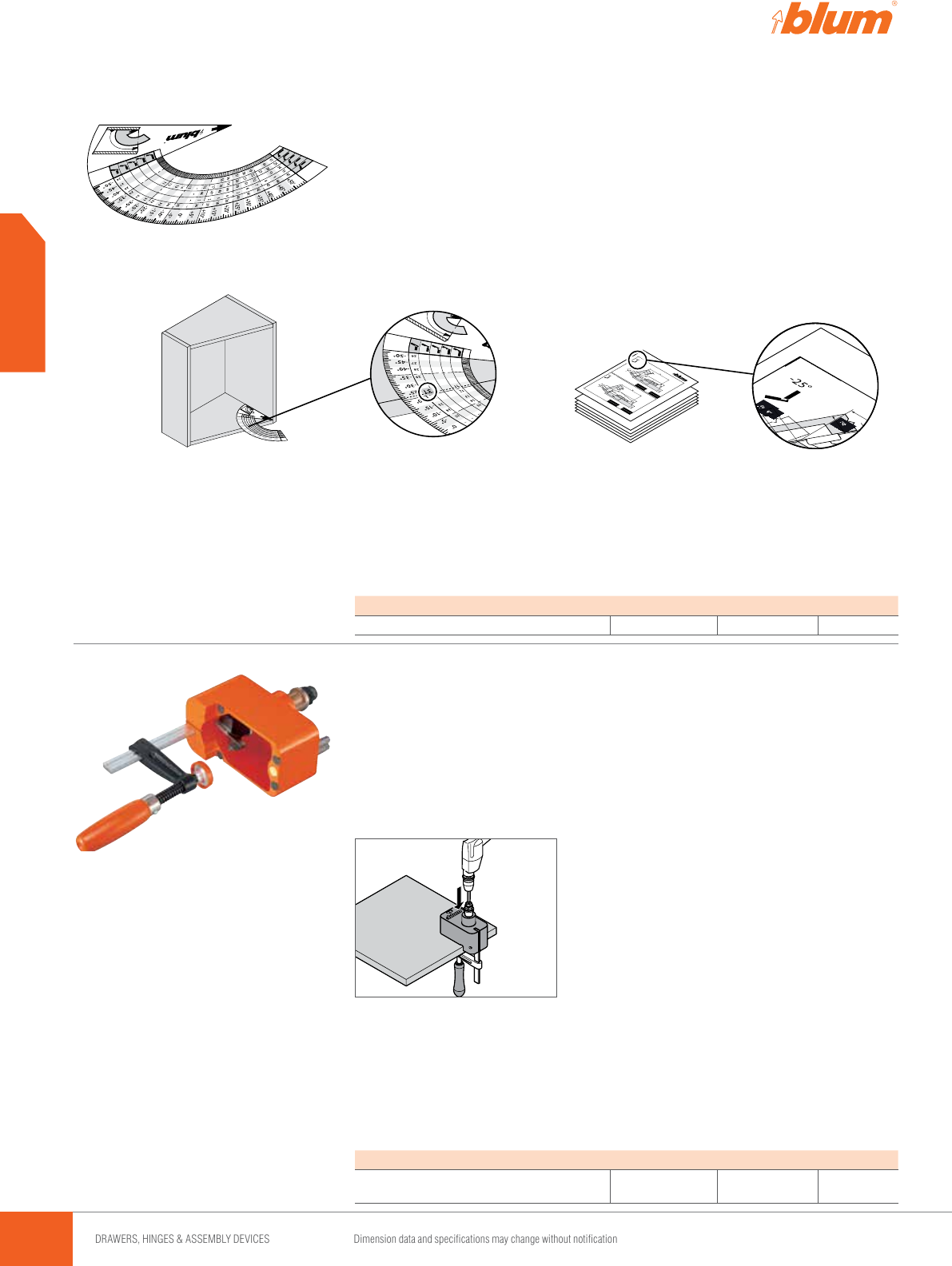

CABINET ANGLE TEMPLATE
• Template for determining the cabinet angle
• Determining the correct hinge solution
DRILLING TEMPLATE FOR AVENTOS SERVO-DRIVE SWITCH
• Simple hand-held tool for drilling accurate holes for the SERVO-DRIVE switch attachment
• Driven by hand drill
• Drilling template can be used with assembled and unassembled cabinets
• Assembly on a marking line
• Includes 1 x 35mm drill bit
• Includes 1 x torx bit
Description Material Blum No Code
Cabinet Angle Template Nylon
65.5810.01 1-335-508
Description Material Blum No Code
Drilling Template For AVENTOS
SERVO-DRIVE Switch
Aluminium Die
Casting
M31.2000 1-285-705
Position template on angled cabinet
Note cabinet angle and angled
application
A suitable hinge solution depends
on the cabinet angle or angled
application
Number refers to applicable hinge.
See Section B for specific selection
Mark desired SERVO-DRIVE switch
position
Position template on marking line and fix
with clamping screw
Perform attachment drillings for the
SERVO-DRIVE switch with the hand drill
Hinge system assembly
HINGE & AVENTOS ASSEMBLY DEVICES
