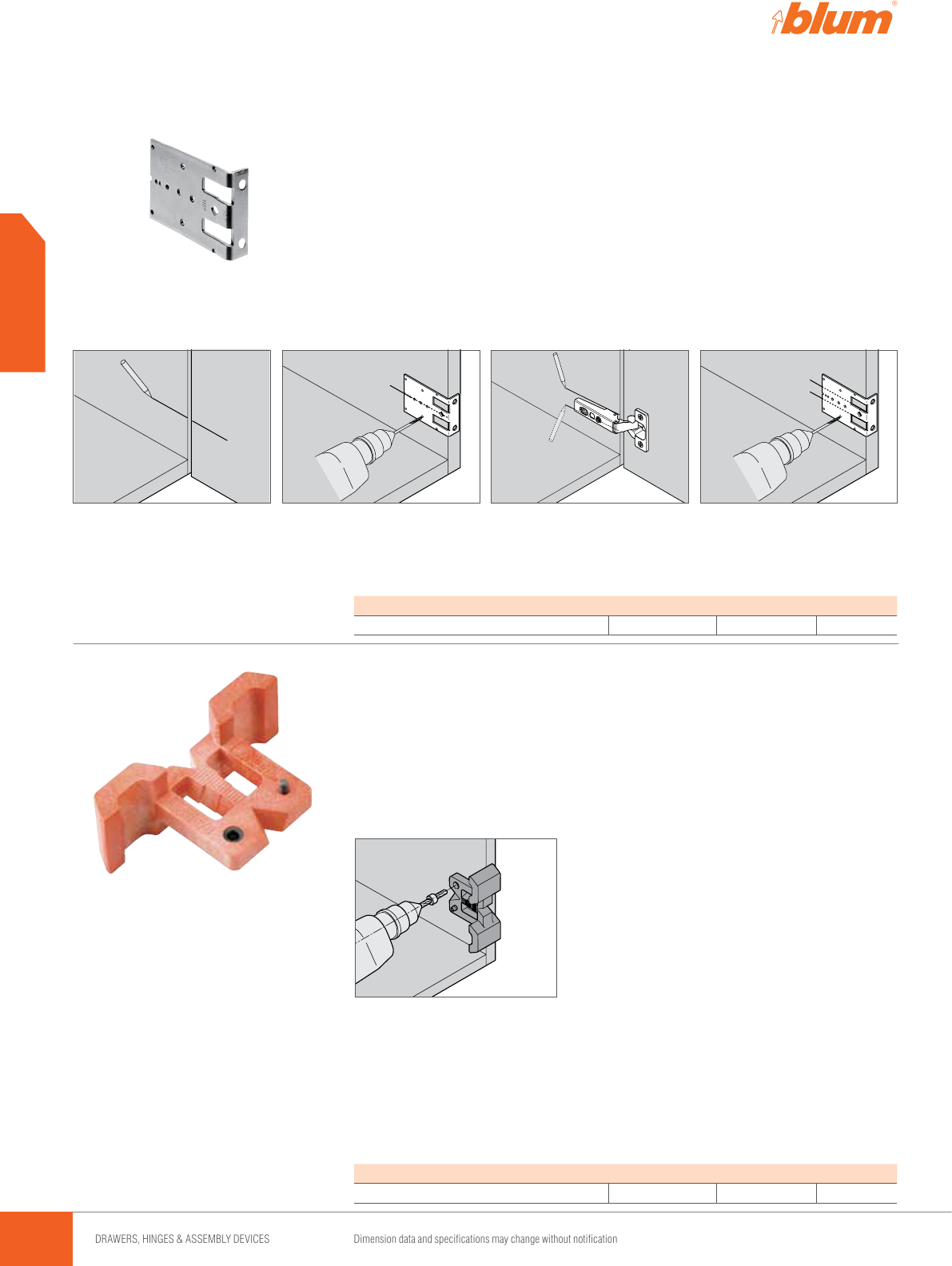

TEMPLATE FOR HINGE, PLATES AND AVENTOS

• Template for drilling the fixing positions for mounting plates (Ø 2.5 mm)

• Template for pre-drilling the fixing positions for adapter plates (BLUMOTION/TIP-ON for doors)

• Template for transferring door measurements to the cabinet

• If mounting plate fixing positions are standard throughout, then it is possible to fix several templates to a

wooden strip

• Assembly on a marking line

DRILLING TEMPLATE FOR MOUNTING PLATES

• Template for drilling the fixing positions for cruciform mounting plates (Ø 5 mm)

• Template for drilling the fixing positions for cruciform mounting plates (BLUMOTION/TIP-ON for doors)

• The aligning function allows you to drill the 32 mm dimension exactly

• Assembly on a marking line

Description Material Blum No Code

Template for Hinge, Plates and AVENTOS Steel

65.5300 1-335-505

Description Material Blum No Code

Drilling Template For Mounting Plates Nylon/Steel

65.5070 1-335-506

Mark Hinge Arm Centre Pre-Drill (Ø2.5mm) Mark Hinge Arm Outline Pre-Drill (Ø2.5mm)

Mark hinge arm centre or hinge arm

outside edges on cabinet

Position template on marking line and

drill first hole (Ø 5 mm)

Turn template around, insert positioning

pin into drilling hole and drill second

hole (Ø 5 mm)

Hinge system assembly
