User Guide

LINCOLN SENTRY
Assembly Devices
A.2
DRAWERS, HINGES & ASSEMBLY DEVICES
D.17
D
Drawers, Hinges & Assembly Devices
HINGE ASSEMBLY DEVICES

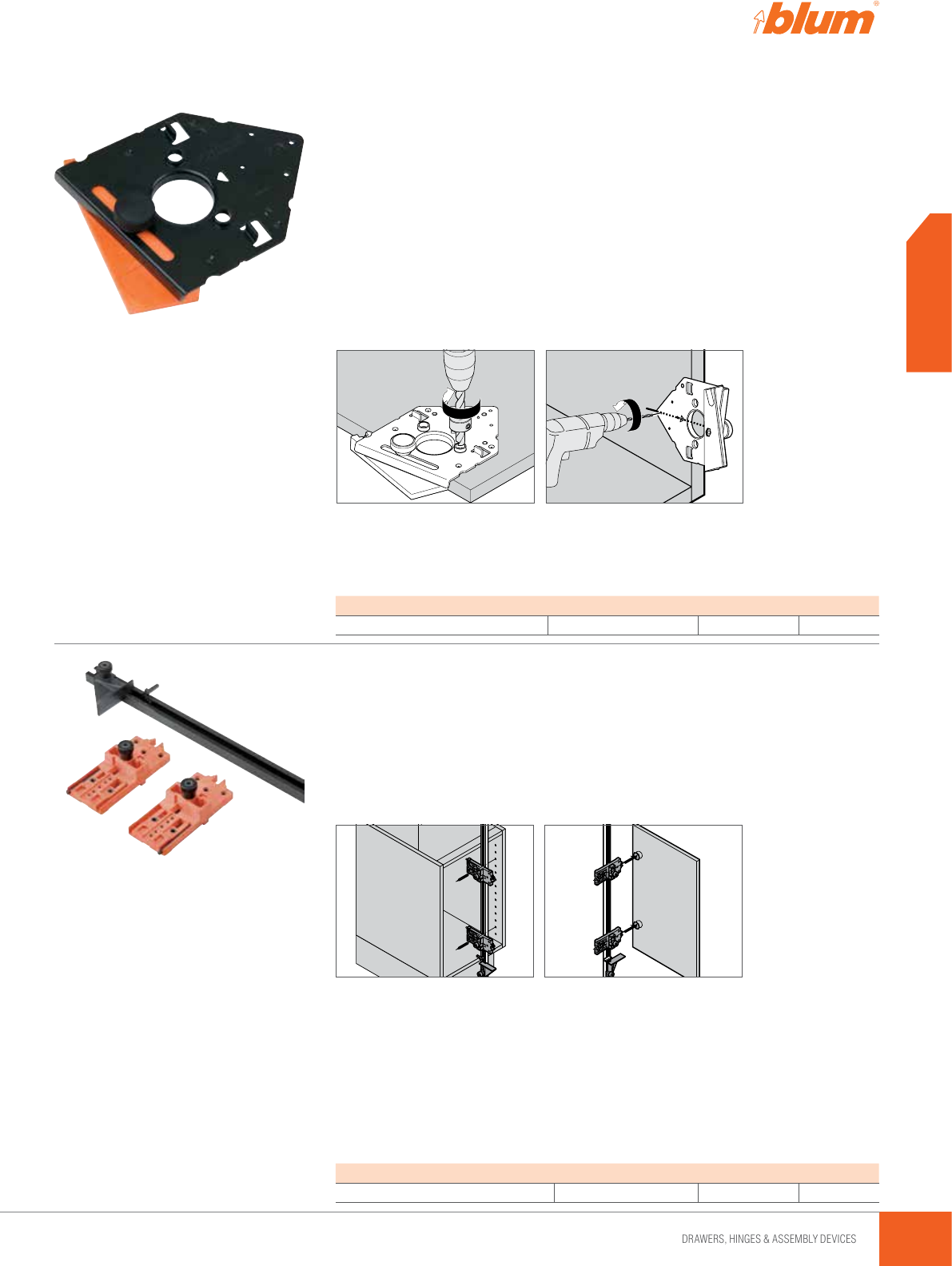

DRILLING TEMPLATE FOR HINGES
• Template for drilling the side fixing positions for hinges (Ø 8 and/or Ø 2.5 mm)
• Template for pre-drilling the fixing positions for horizontal and cruciform mounting plates
• Template for pre-drilling the fixing positions for adapter plates (BLUMOTION/TIP-ON for doors)
• Assembly on a marking line
Description Material Blum No Code
Drilling Template For Hinges Nylon/Steel
65.059A 1-335-511
Description Material Blum No Code
Drilling Template For Hinge System Aluminium/Nylon
65.7500.03 1-335-512
DRILLING TEMPLATE FOR HINGE SYSTEM
• Template for the transfer of measurements for hinge and mounting plate fixing positions
• Template for the transfer of measurements from door to cabinet and from cabinet to door
• Drilling template can be used with assembled or unassembled cabinets
• Adjustable stop for various front overlays, the calibration makes it easy to set the template
Perform boss drilling (Ø 35 mm)
e.g. using a pillar drill
Position template and fix with a spacer
Drill side holes for hinges
Position drilling template onto cabinet
Transfer desired position of attached
mounting plate and/or system drilling to
drilling template
Set desired door overlay using the
calibration
Position drilling template on to door and
mark hinge drilling pattern using marking
template
Hinge system assembly - door
Hinge system assembly - door undrilled
Mark hinge arm centre
Attach template and pre-drill fixing
positions for inline (20 mm) or
cruciform mounting plates (37mm)
Set desired front overlay using the
calibration
Transfer desired position of hinge
drilling and/or attached hinge to
drilling template
Position drilling template onto cabinet
and mark or pre-drill fixing positions
for mounting plates
